304 (A2) · 316 (A4) · C1022 Hardened

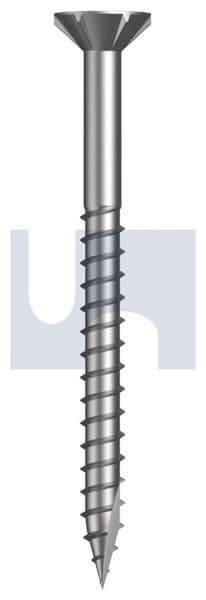

Type 17 Screws (Batten & Decking Screws)
Type 17 batten and decking screws that drive straight into timber without a pilot hole, for battens, decks, pergolas and roofing to timber.
About the Type 17 Screws (Batten & Decking Screws)
Type 17 screws have a slotted cutting point that drives straight into timber with no pilot hole, for roof battens, decking, pergolas, landscaping timber and fixing roof sheeting to timber. They come as bugle batten screws for battens, flanged hex and hex washer screws for roofing and cladding to timber, and self-embedding and countersunk screws for decking, in Class 3, Class 4 or Tykote, or in 304 and 316 stainless. Choose the head, finish and size above; the guide below covers batten and decking screws and which finish to use.
Also called batten screws, decking screws, timber screws or timber tek screws.
Features
- Type 17 cutting point self-embeds in timber
- Bugle batten, hex+washer, flanged hex, countersunk, wafer heads
- Fast drive, resists splitting
- Class 3 and stainless finishes
Applications
- Decking, battens and pergolas
- Roof sheeting to timber
- Heavy timbers and timber framing
- Landscaping and outdoor
Which Type 17 screw?
- Bugle batten screw (ribbed head, internal hex drive): fixing roofing battens to timber rafters and trusses, and heavy timbers. Also in 304 and 316 stainless.
- Flanged hex and hex with seal (Class 4, Scratchguard): fixing steel roofing and cladding to timber battens and frames.
- Self-embedding head (304 stainless, square drive): timber decking in corrosive environments and treated pine. The ribbed head embeds flush with the board.
- Countersunk Torx: treated pine and outdoor furniture, with a T25 Torx drive for a positive fit. No pre-drilling needed.
- Pan, wafer, button and trim heads: general timber fixing and trim.
Type 17 sizes and embedment
Type 17 screws are sized as gauge and threads per inch: a 14-10 is a 14 gauge screw (6.3mm thread) with 10 threads per inch, the usual batten and heavy timber screw; 12-11 (5.5mm) suits lighter work; 10-12 (4.8mm) and smaller suit decking and trim.
For full pull out strength in timber, embed at least 25mm for a 12 gauge screw and 35mm for a 14 gauge screw. Choose a length that gives that embedment after passing through the batten, sheet or board.
Class 3, Class 4 or stainless?
Class 3 suits sheltered and moderate sites, and Class 4 the more corrosive ones. Use 304 stainless for decking and wet areas, and 316 stainless near the coast. For treated pine, Hobson lists its 304 stainless self-embed head screw for timber decking in corrosive environments and as suitable for treated pine, and its Tykote countersunk Torx screws carry a coating specially formulated for resisting treated pine chemicals. Hobson's 316 recommendation for treated timber is in its coach screw guide and applies to coach screws.
Driving Type 17 screws
- Use the right bit: hex socket, internal hex, Torx or square to suit the head.
- Hold the screw square and apply firm, steady pressure while the point cuts in.
- Drive until the head seats. Self-embedding and bugle heads should finish flush; do not overdrive.
Batten and decking screws in Adelaide
Allmat supplies Type 17 batten, decking and roofing-to-timber screws, with the timber to go with them, to builders, carpenters and deck builders across Adelaide and South Australia. Add them to a quote with the rest of your list, and we will price the lot.
Batten, decking and timber screws for the job
Type 17 batten, decking and roofing-to-timber screws are available to order from Allmat for builders, carpenters, roofers and deck builders across Adelaide and South Australia, with the timber to go with them. Order through Allmat, we pick and pack it, then click and collect from the Allmat yard or have it delivered to site.
Goes with
Questions
What is a Type 17 screw?
A timber screw with a slotted cutting point that drills its own way into timber without a pilot hole. Used for battens, decking and fixing roofing to timber.
What screws do I use for roof battens?
Type 17 bugle batten screws, usually 14-10, long enough to embed at least 35mm into the rafter or truss.
What screws should I use for decking?
Stainless decking screws: Hobson lists its 304 stainless self-embedding head Type 17 screws for timber decking in corrosive environments and as suitable for treated pine, and the head finishes flush with the board.
Decking screws for treated pine: 304 or 316?
Hobson lists its 304 stainless self-embed head Type 17 decking screw as suitable for treated pine. Its Tykote countersunk Torx screws are also listed for treated pine, with a coating specially formulated for resisting treated pine chemicals. The 316 advice for treated timber you may see is from Hobson's coach screw guide and is about coach screws.
Do Type 17 screws need a pilot hole?
No. The cutting point makes its own hole in timber.
What does 14-10 mean?
14 is the gauge (6.3mm thread) and 10 is the threads per inch.
Where can I buy batten and decking screws in Adelaide?
Order through Allmat. Order ahead by phone on 1300 03 03 63 or send your list for a quote, then click and collect from 25 Kapara Road, Gillman, or have them delivered to site.
Type 17 Screws (Batten & Decking Screws): sizes and finishes we supply
1,570 lines by type and finish. Pick one above for its product code and pack sizes.
| Head | Finish | Sizes | Lengths | Lines |
|---|---|---|---|---|
| Flange | Class 4 | #10-12, #12-11, #14-10 | 20 to 150mm (14 lengths) | 757 |
| Hex + washer | Class 4 | #10-12, #12-11, #14-10 | 20 to 150mm (14 lengths) | 615 |
| Self-embed | Class 3 | #8-9, #10-8 | 20 to 150mm (14 lengths) | 27 |
| Bugle | 316 Stainless | #6-10, #8-10, #10-10, #12-10, #14-10 | 25 to 150mm (10 lengths) | 25 |
| Countersunk | Tykote | #8-9, #10-9, #12-8 | 25 to 150mm (12 lengths) | 18 |
| Bugle | Class 3 | #14-10 | 50, 65, 75, 100, 125, 150mm | 12 |
| Countersunk | Zinc Yellow Passivate | #6-18, #8-15, #10-12 | 20, 30, 40mm | 11 |
| Flange | Zinc Yellow Passivate | #12-11, #14-10 | 25 to 100mm (9 lengths) | 11 |
| Flange | 316 Stainless | #12-11, #14-10 | 25, 50, 65, 70, 75, 90, 100mm | 10 |
| Hex + washer | 316 Stainless | #12-11, #14-10 | 25, 50, 65, 75, 90mm | 8 |
| Self-embed | 304 Stainless | #10-12, #12-11 | 40, 50, 65, 75, 100mm | 8 |
| Bugle | 304 Stainless | #14-10 | 35, 50, 65, 75, 100, 125, 150mm | 7 |
| Wafer | Class 3 | #10-12 | 25, 35, 45mm | 7 |
| Self-embed | 316 Stainless | #10-12, #12-10 | 40, 50, 65, 75, 130, 150mm | 6 |
| Bugle | Class 4 | #14-10 | 50, 65, 75, 100, 125, 150mm | 6 |
| Washer head | Tykote | #18-5 | 75, 100, 125, 150, 200, 250mm | 6 |
| Trim | 304 Stainless | #7-10, #8-10, #9-9, #10-8 | 50, 53, 55, 65mm | 5 |
| Washer head, retail tub | Tykote | #18-5 | 75, 100, 125, 150, 250mm | 5 |
| Button | 316 Stainless | #10-12 | 30, 38, 44, 60mm | 4 |
| Countersunk | Class 3 | #10-12 | 30, 40mm | 4 |
| Bugle | Zinc Yellow Passivate | #14-10 | 50, 65, 75, 100mm | 4 |
| Pan | 304 Stainless | #10-12 | 19, 25mm | 3 |
| Pan | Zinc Yellow Passivate | #8-15 | 16, 25mm | 3 |
| Countersunk | 304 Stainless | #10-12 | 50, 65mm | 2 |
| Hex | Class 4 | #12-11 | 50, 65mm | 2 |
| Flange | 304 Stainless | #14-10 | 35, 75mm | 2 |
| Wafer | 316 Stainless | #10-12 | 25mm | 1 |
| Flange | Class 3 | #14-10 | 90mm | 1 |
Data sheets and documents
The documents for the product you choose are listed with the selector above. Here is every Type 17 Screws (Batten & Decking Screws) document from Hobson Engineering.
All Type 17 Screws (Batten & Decking Screws) documents (45)
Data sheets and technical data (26)
- Timber Type 17 SDS Hex Head Polycarb All-in-1 Roofing Screw #12-11 Performance Data
- Timber Type 17 SDS Bugle Batten iHex #14-10 Performance Data
- Timber Type 17 Bugle Batten Rib
- Timber Type 17 SDS CSK Head #10-12 Performance Data
- Timber Type 17 SDS Flanged Hex Head and Seal Screw #10-12 Performance Data
- Timber Type 17 SDS Flanged Hex Head and Seal Screw #12-11 Performance Data
- Timber Type 17 SDS Flanged Hex Head and Seal Screw #14-10 Performance Data
- Timber Type 17 SDS Flanged Hex Head Screw #10-12
- Timber Type 17 SDS Flanged Hex Head Screw #12-11 Performance Data
- Timber Type 17 SDS Flanged Hex Head Screw #14-10 Performance Data
- Timber Type 17 Flanged Hex Scratchguard and Seal #12-11 Performance Data
- Timber Type 17 Flanged Hex Scratchguard and Seal #14-10 Performance Data
- Timber Type 17 Flanged Hex Head and Scratchguard #12-11 Performance Data
- Timber Type 17 Flanged Hex Head and Scratchguard #14-10 Performance Data
- Timber Hex Flanged Head Screw #12-11 ZYP
- Timber Hex Flanged Head Screw #14-10 ZYP
- Timber Type 17 Pan Phillips
- Timber Type 17 SDS Pan Head Screw #10-12 Performance Data
- Timber Type 17 Self-Embed Head
- Timber Type 17 SDS Wafer Head #10-12 Performance Data
- Type 17 Washer Head Torx Drive
- Timber Washer Head Torx Screw #18-5 TYKOTE
- Product Finish Comparison
- Screw Technical Data Chart - A1 Poster
- Self-Drilling Screws Features and Identification
- Colorbond Comparison Chart - User Guide
Did You Know flyers (15)
- Trade PAX
- Timber Type 17 Flanged Hex
- Type 17 Large ButtonHead
- T17 SDS Hex Head Polycarb Screw
- Type 17 Self-Embed Head
- Timber Type 17 Pan Head
- Timber Type 17 Pan Phillips
- Type 17 Bugle Batten - 4 Ribs
- Type 17 Bugle Batten Rib Head
- Type 17 Bugle BattenRib Screws
- Type 17 Countersunk Torx
- Type 17 Flanged Hex Head Screws
- Type 17 Flanged Hex Head
- Type 17 Trim Head - 6 Rib
- Type 17 Washer Head Torx
