Galvanised · 304 Stainless
Half Stirrup Post Supports
About the Half Stirrup Post Supports

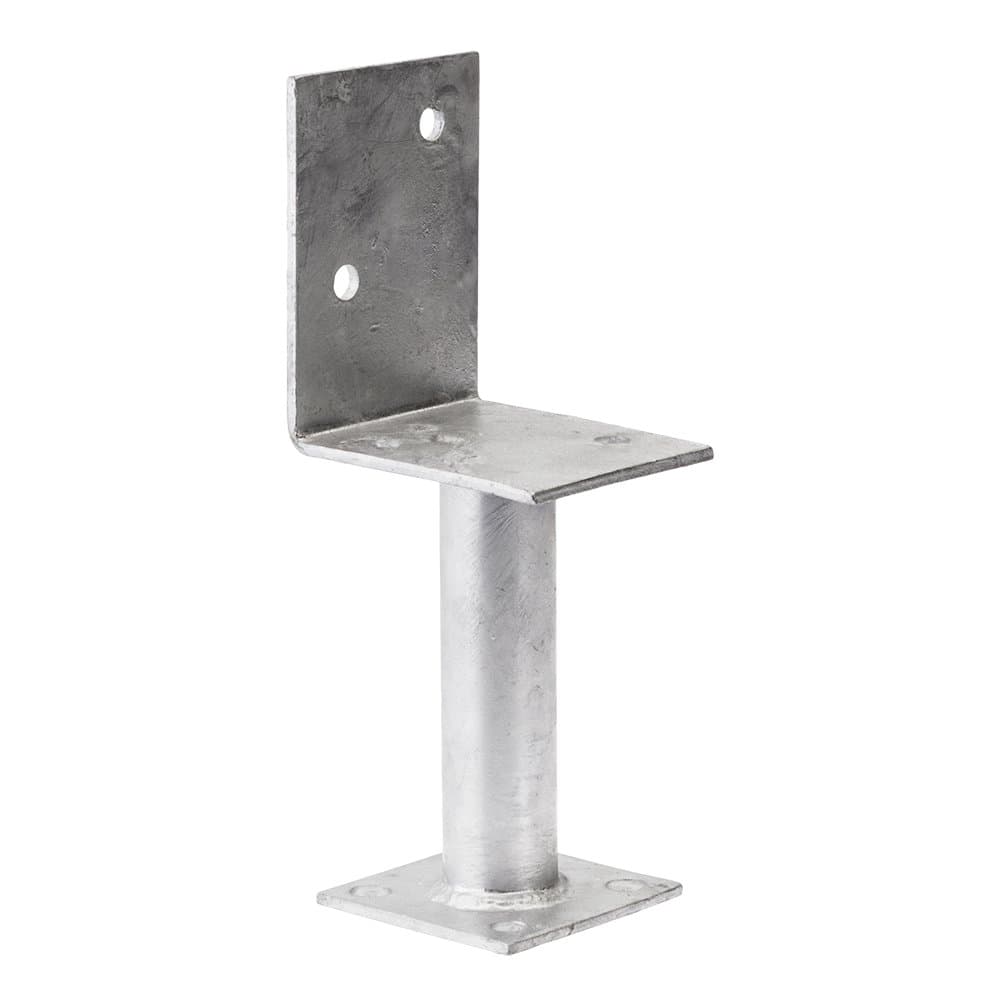

VUETRADE Half Stirrup Post Supports fix timber posts to a base where the post can only be reached from one side for bolting. 32 x 2.0mm shaft and 4.0mm saddle; VUETRADE's rated fixing is 2 x M12 bolts (or VUEBOLTs) through the saddle and 2 x M12 concrete bolts in the base, or cast in. Legs 75 to 300mm, galvanised, and 125mm in 304 stainless.
- Comparing post stirrups and post supports in general? See our post support guide.
Features
- One-sided stirrup for single-side bolting access
- 32 x 2.0mm shaft, 4.0mm saddle
- Rated fixing (VUETRADE): 2 x M12 bolts or VUEBOLTs through the saddle, tightly fastened with nuts; 2 x M12 concrete bolts in the base, or cast in
- VUETRADE uplift design capacity: J3 6.3, J4 5.0, J5 4.3, JD3 7.9, JD4 6.3, JD5 5.5 kN, with that fixing and a post at least 90 x 90mm sitting flat on the base
- Capacities are VUETRADE's wind uplift (vertical) design capacities from its own tests, and assume enough concrete anchorage; embedment depth is set by your structural engineer
- Leg heights 75 to 300mm
- Leave at least 75mm clearance under the post for termite inspection: VUETRADE says it must be provided (AS 3660.1)
- Exposure (VUETRADE area chart): galvanised for enclosed work and for inland exterior work kept clear of fresh water and frequent wetting and drying; 304 stainless for marine sites (100m to 1km from a sheltered coast, 1 to 10km from surf) and for fresh-water contact or frequent wetting and drying; within 100m of a sheltered coast or 1km of breaking surf VUETRADE specifies 316, by special order. Around pools VUETRADE recommends stainless brackets for saltwater pools, and for freshwater pools where the brackets are splashed often
- Fix stainless brackets with stainless fixings, and check local rules on stainless connectors (VUETRADE)
Applications
- Posts that can only be bolted from one side
- Decks, pergolas and roofed structures: to VUETRADE's technical data (uplift, and dead load where listed, with its fixing conditions) or your engineer's design. VUETRADE: post supports give no lateral stability, so brace the posts to a structural engineer's design; footing embedment and concrete anchor bolts are set by your engineer
Half Stirrup Post Supports: sizes and finishes we supply
6 lines by finish. Pick one above for its product code and pack sizes.
| Finish | Leg height | Lines |
|---|---|---|
| Galvanised | 75mm, 125mm, 200mm, 250mm, 300mm | 5 |
| 304 Stainless | 125mm | 1 |
Need them in bulk?
Add the sizes you need to your quote, or send us your list and we’ll price the lot and supply it with the rest of your order. Allmat supplies Half Stirrup Post Supports across Adelaide and South Australia. Order ahead on 1300 03 03 63.
