Galvanised
Internal Wall Brackets
About the Internal Wall Brackets

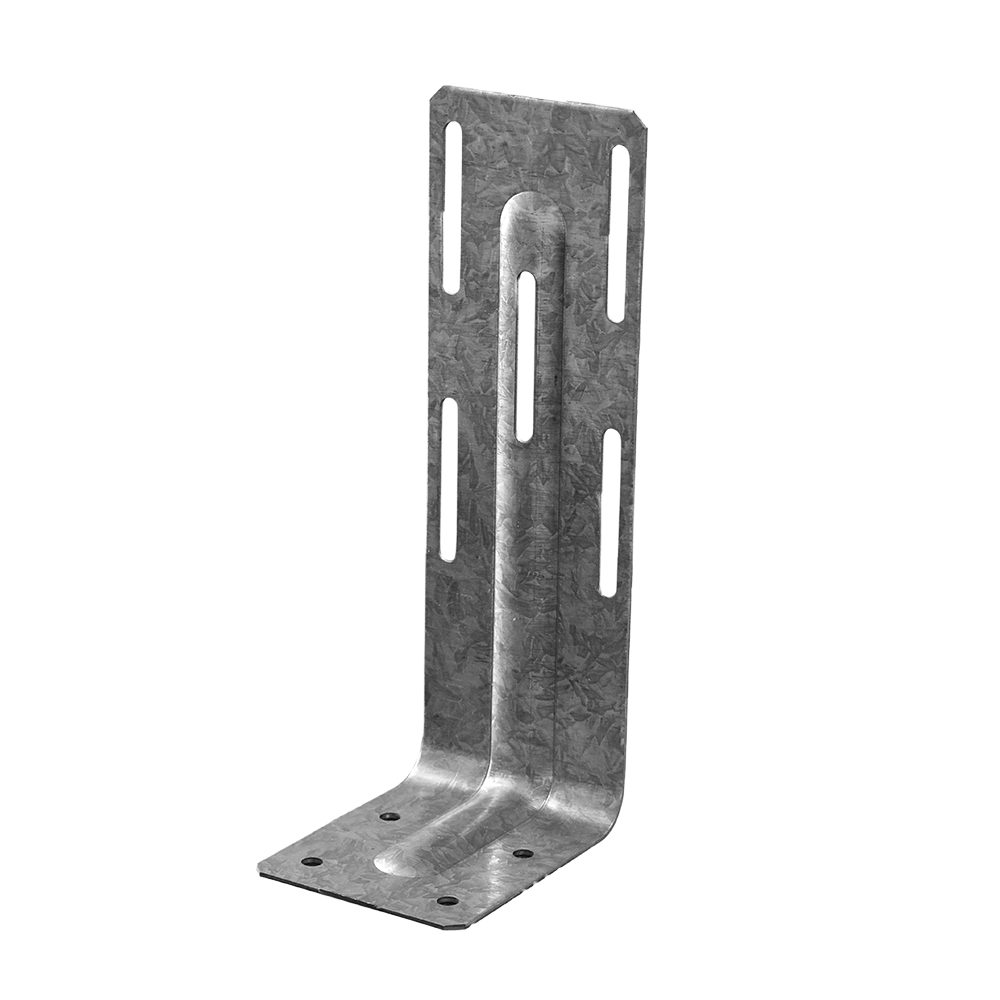

VUETRADE Internal Wall Brackets restrain the top plates of non-loadbearing internal walls against sideways movement while letting the trusses above move vertically, through slotted nail holes. Pre-punched galvanised steel, cartons of 100. VUETRADE warns they are not suitable for load bearing applications. Australian made.
Features
- Slotted holes let the truss move vertically (AS 1684 cl 6.2.5.2)
- Leave a 10mm gap under the truss bottom chord or ceiling batten
- 4 VUETRADE 30 x 2.8mm galvanised nails into the wall top plate and 3 into the truss bottom chord, not driven fully home
- Fixed at 1800mm centres (VUETRADE, per AS 1684)
- Not suitable for load bearing applications (VUETRADE)
- Galvanised
- Australian made
Applications
- Restraining internal non-loadbearing wall top plates under roof trusses
Internal Wall Brackets: sizes and finishes we supply
1 line by finish. Pick one above for its product code and pack sizes.
| Finish | Sizes | Lines |
|---|---|---|
| Galvanised | - | 1 |
Need them in bulk?
Add the sizes you need to your quote, or send us your list and we’ll price the lot and supply it with the rest of your order. Allmat supplies Internal Wall Brackets across Adelaide and South Australia. Order ahead on 1300 03 03 63.
