Galvanised · 316 Stainless
Tap In Plates
About the Tap In Plates

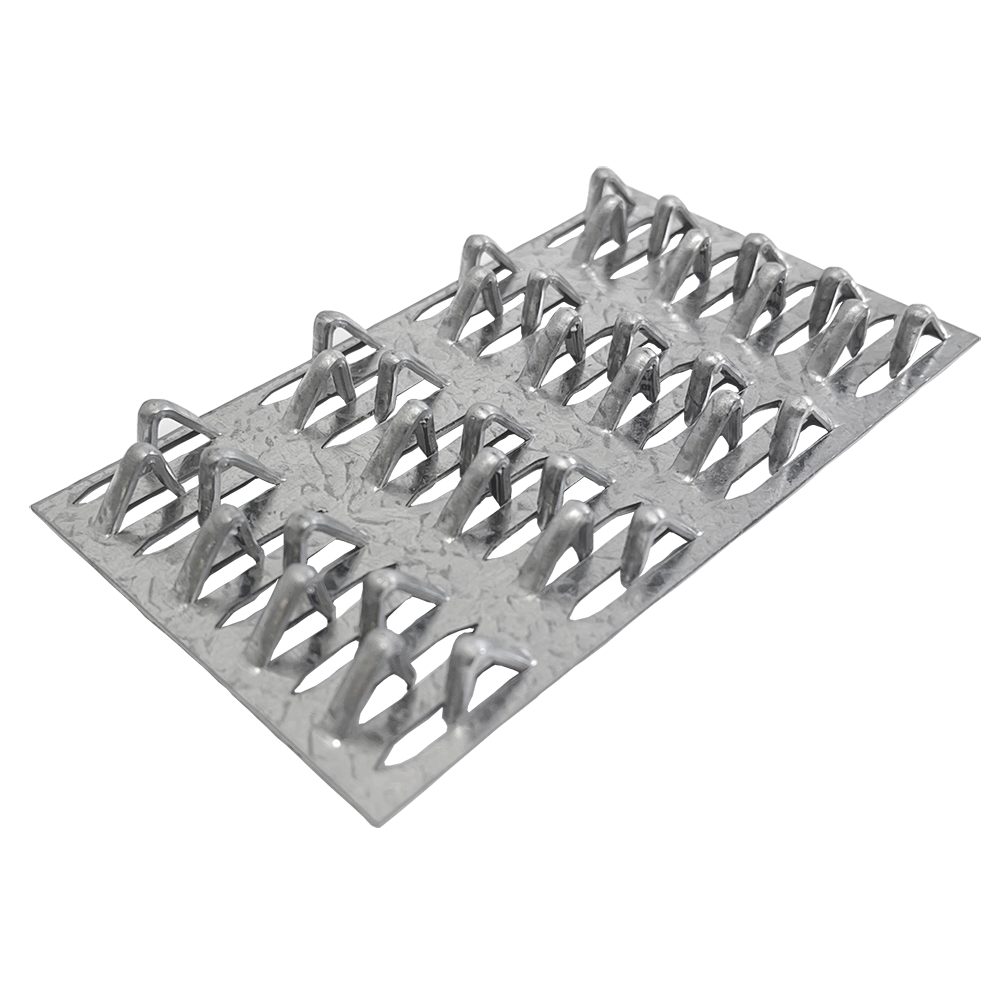

VUETRADE Tap In Plates are toothed plates for joining timber wall frames and top plates, truss manufacture and repairing timber ends: the teeth are hammered into both members, so no separate nails are needed. Galvanised (1.2mm G250 Z275) in 14 sizes from 45 to 130mm wide and 60 to 300mm long, and 316 stainless (1.2mm) in 45 x 120, 45 x 180, 70 x 120 and 70 x 180mm. Australian made.
Features
- Built-in steel teeth hammered into both members: no separate nails
- Galvanised 45, 70, 90 and 130mm wide, 60 to 300mm long
- 316 stainless in four sizes
- Butt joints: equal length into each member, one plate on each face; teeth within 12mm of the butt end or 6mm of the timber edge are ineffective (VUETRADE)
- Design capacity is given per tooth for joint group JD4 in VUETRADE's technical data (by load direction and load type)
- Exposure (VUETRADE area chart): galvanised for enclosed work and inland exterior work kept clear of fresh water, frequent wetting and drying and pool splash; on marine sites (within 1km of a sheltered coast or 10km of surf), in fresh-water contact or frequent wetting and drying, or around pools, use the 316 stainless version
- Australian made
Applications
- Joining timber wall frames and top plates
- Truss manufacture
- Joining and repairing timber ends
Tap In Plates: sizes and finishes we supply
18 lines by finish. Pick one above for its product code and pack sizes.
| Finish | Width | Length | Lines |
|---|---|---|---|
| Galvanised | 45mm, 70mm, 90mm, 130mm | 60mm, 120mm, 180mm, 240mm, 300mm | 14 |
| 316 Stainless | 45mm, 70mm | 120mm, 180mm | 4 |
Need them in bulk?
Add the sizes you need to your quote, or send us your list and we’ll price the lot and supply it with the rest of your order. Allmat supplies Tap In Plates across Adelaide and South Australia. Order ahead on 1300 03 03 63.
