Galvanised · 316 Stainless
Triple Grip-Style Connectors
About the Triple Grip-Style Connectors

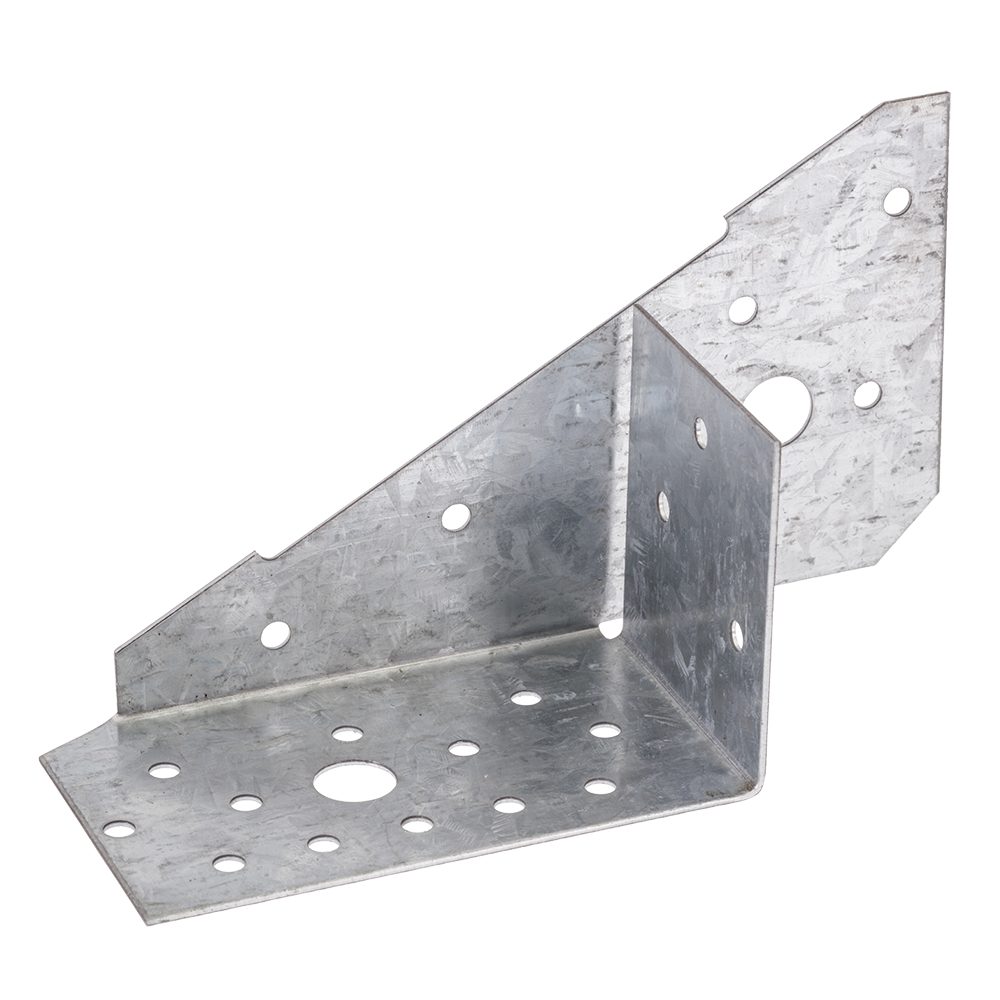

VUETRADE Triple Grips (triple grip-style connectors) are multi-purpose 1.0mm brackets for nail-fixed timber joints at right angles, such as rafter or truss to top plate, fixed with hand-driven nails. 110mm long, in left and right hand profiles, galvanised or 316 stainless, cartons of 100.
- Looking for triple grips in general? See our triple grip guide.
Features
- 110mm long, 1.0mm steel
- Left and right hand profiles
- Hand-driven VUETRADE 30 x 2.8mm connector plate nails only (no nail guns), 4 + 3 + 4 nails as shown in VUETRADE's install guide; galvanised nails on galvanised grips, stainless on stainless
- G300 steel, Z275 coating (galvanised; VUETRADE compliance statement)
- Design capacities by load direction for dead load and wind uplift are in VUETRADE's technical data
- Exposure (VUETRADE area chart): galvanised for enclosed work and inland exterior work kept clear of fresh water, frequent wetting and drying and pool splash; on marine sites (within 1km of a sheltered coast or 10km of surf), in fresh-water contact or frequent wetting and drying, or around pools, use the 316 stainless version
Applications
- 90 degree timber joints such as rafter, truss and plate connections
Triple Grip-Style Connectors: sizes and finishes we supply
4 lines by finish. Pick one above for its product code and pack sizes.
| Finish | Hand | Lines |
|---|---|---|
| Galvanised | Left hand, Right hand | 2 |
| 316 Stainless | Left hand, Right hand | 2 |
Need them in bulk?
Add the sizes you need to your quote, or send us your list and we’ll price the lot and supply it with the rest of your order. Allmat supplies Triple Grip-Style Connectors across Adelaide and South Australia. Order ahead on 1300 03 03 63.
