Galvanised · 316 Stainless
Joist Straps 175mm
About the Joist Straps 175mm

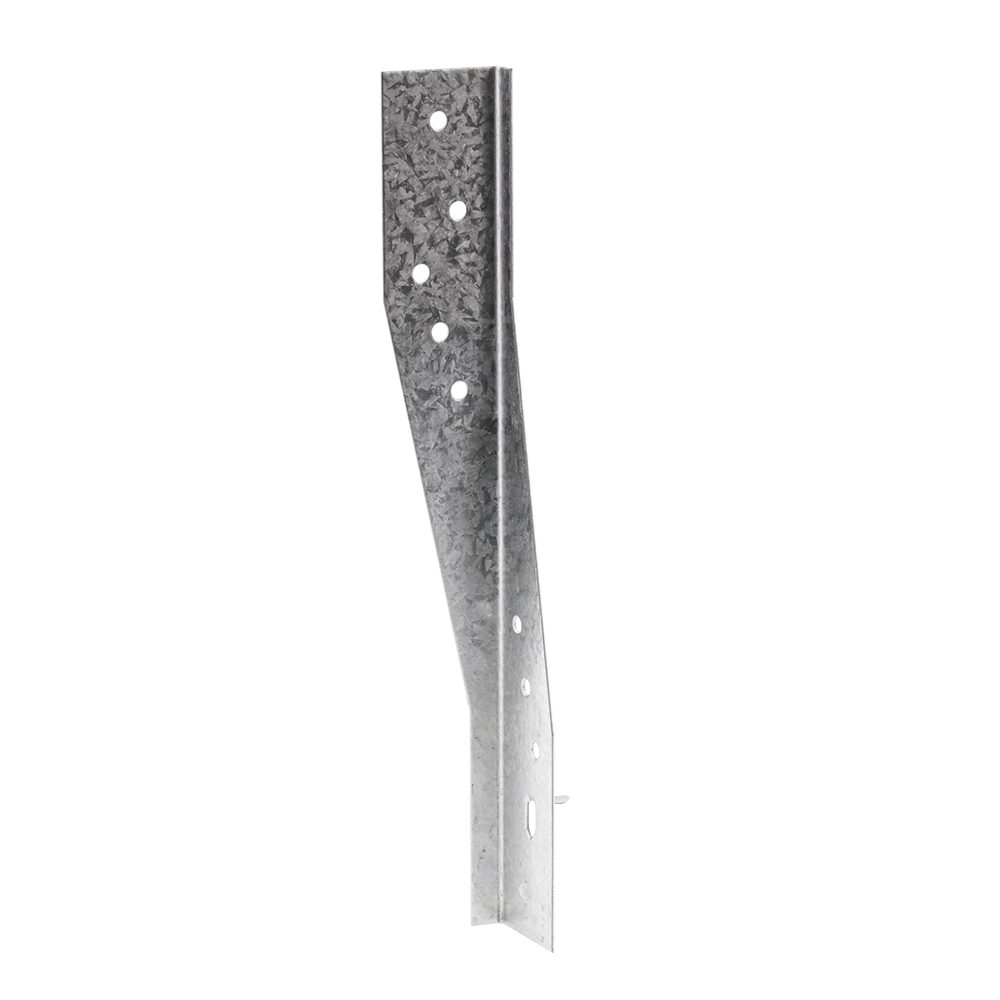

VUETRADE Joist Straps fix ceiling joists or rafters to hanging beams, with a built-in nail spike to save time. 175mm, galvanised or 316 stainless, cartons of 150. Australian made.
Features
- 175mm, 0.6mm steel
- Built-in nail spike
- 3 VUETRADE 30 x 2.8mm connector plate nails each end (galvanised on galvanised, stainless on stainless); straps on opposite sides at adjacent joints; capacities in VUETRADE's technical data
- Exposure (VUETRADE area chart): galvanised for enclosed work and inland exterior work kept clear of fresh water, frequent wetting and drying and pool splash; on marine sites (within 1km of a sheltered coast or 10km of surf), in fresh-water contact or frequent wetting and drying, or around pools, use the 316 stainless version
- Australian made
Applications
- Ceiling joists or rafters to hanging beams
Joist Straps 175mm: sizes and finishes we supply
2 lines by finish. Pick one above for its product code and pack sizes.
| Finish | Sizes | Lines |
|---|---|---|
| Galvanised | - | 1 |
| 316 Stainless | - | 1 |
Need them in bulk?
Add the sizes you need to your quote, or send us your list and we’ll price the lot and supply it with the rest of your order. Allmat supplies Joist Straps 175mm across Adelaide and South Australia. Order ahead on 1300 03 03 63.
