Galvanised
Single Sided Stud Ties
About the Single Sided Stud Ties

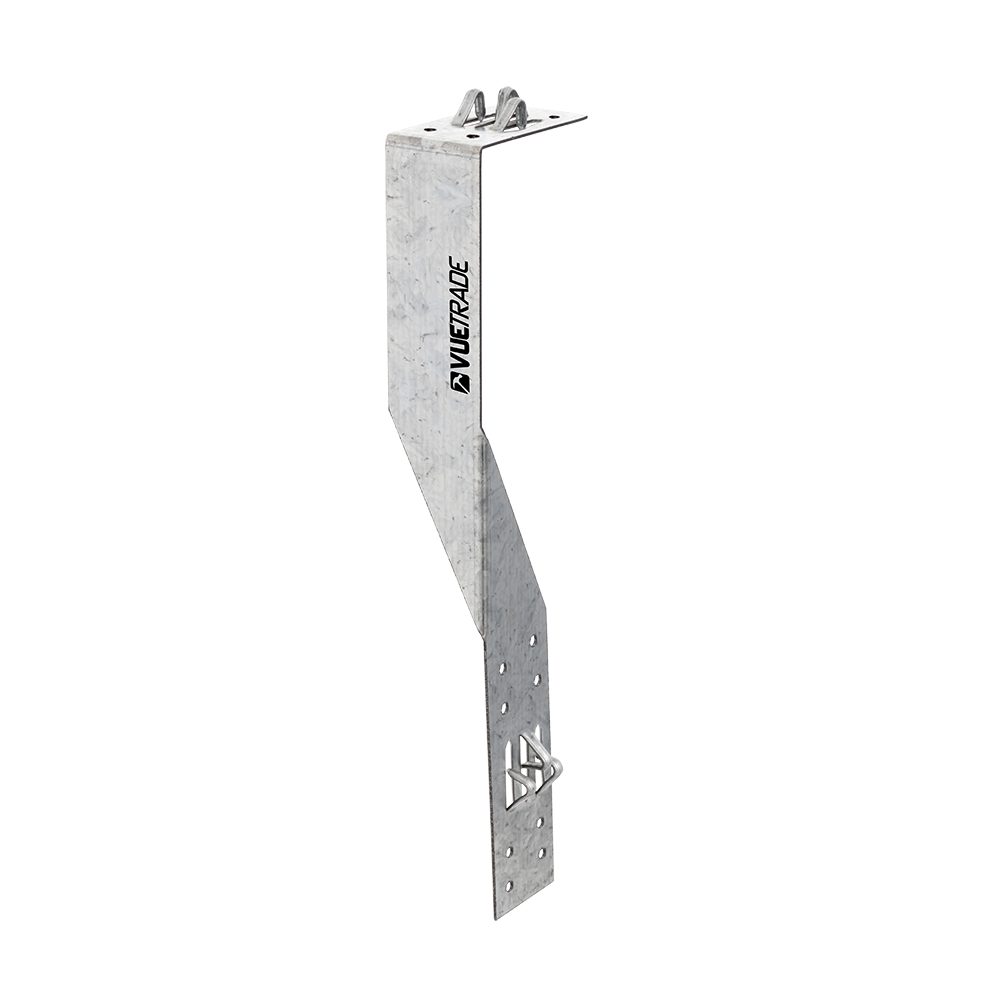

VUETRADE Single Sided Stud Ties fasten top and bottom wall plates to studs in high wind areas. The right angle is folded rather than pressed, so it does not spring back, and fixes into the side grain for a neat fit. 240 x 60 x 32mm, left and right hand, galvanised, cartons of 75. Capacity and nailing per VUETRADE technical data; tie-down design to AS 1684 or your engineer.
Features
- Folded right angle: no spring-back
- Neat fit, side-grain fixing
- 240 x 60 x 32mm, left and right hand
- Galvanised
- Wind uplift capacity per VUETRADE technical data with 5 nails into the stud and 4 into the top plate (VUETRADE 30 x 2.8mm galvanised connector plate nails, through the holes only); fix on the same face as the bracing or truss fixing; tie-down design to AS 1684 or your engineer
- Exposure (VUETRADE area chart): galvanised suits enclosed work and inland exterior work kept clear of fresh water, frequent wetting and drying and pool splash. This product is galvanised only, so it does not suit marine sites (within 1km of a sheltered coast or 10km of surf) or those wet locations
Applications
- Top and bottom plates to studs
- High wind areas, to the tie-down design
Single Sided Stud Ties: sizes and finishes we supply
2 lines by finish. Pick one above for its product code and pack sizes.
| Finish | Hand | Lines |
|---|---|---|
| Galvanised | Left hand, Right hand | 2 |
Need them in bulk?
Add the sizes you need to your quote, or send us your list and we’ll price the lot and supply it with the rest of your order. Allmat supplies Single Sided Stud Ties across Adelaide and South Australia. Order ahead on 1300 03 03 63.
Browse all framing connectors
