Galvanised
VUEFIX Truss Screws
About the VUEFIX Truss Screws

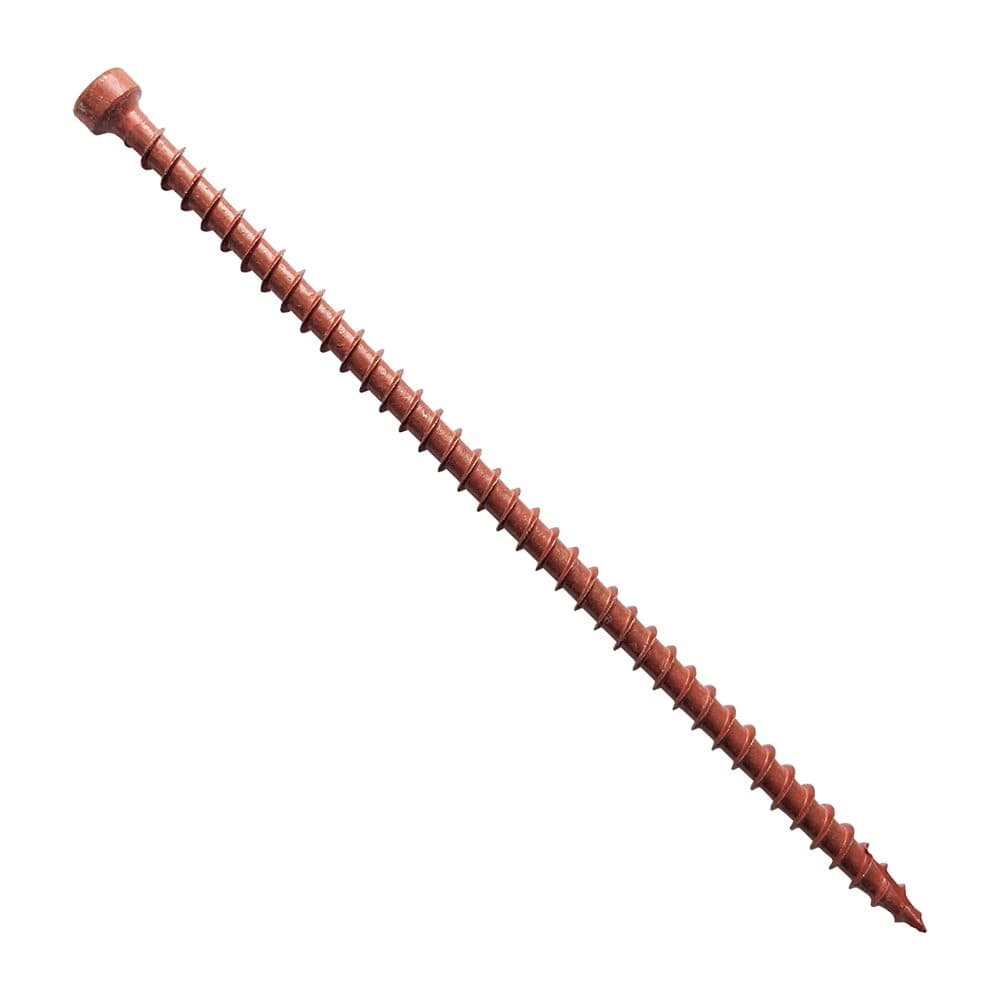

VUEFIX Truss-Screws are 3.9 x 150mm screws for securing timber trusses and rafters to top plates, orange for quick recognition, T30 drive, packs of 50. VUETRADE presents them as a replacement for, or addition to, a cyclone strap where its technical data meets the uplift required; confirm against your AS 1684 tie-down design or engineer before leaving straps out.
Features
- 3.9 x 150mm, T30 drive
- Orange for quick recognition
- Packs of 50
- Installed at about 22.5 degrees with VUETRADE's metal guide (10 to 30 degree tolerance), at least 13mm from the timber edge; two-screw methods for higher uplift
- Replace or complement cyclone straps only where the VUETRADE technical data meets the required uplift; tie-down design to AS 1684 or your engineer
Applications
- Truss or rafter to top plate (truss aligned with or offset from the stud)
- Beam to truss or rafter
VUEFIX Truss Screws: sizes and finishes we supply
1 line by finish. Pick one above for its product code and pack sizes.
| Finish | Size | Lines |
|---|---|---|
| Galvanised | 3.9 x 150mm | 1 |
Need them in bulk?
Add the sizes you need to your quote, or send us your list and we’ll price the lot and supply it with the rest of your order. Allmat supplies VUEFIX Truss Screws across Adelaide and South Australia. Order ahead on 1300 03 03 63.
