Galvanised · 316 Stainless
Split Joist Hangers
About the Split Joist Hangers

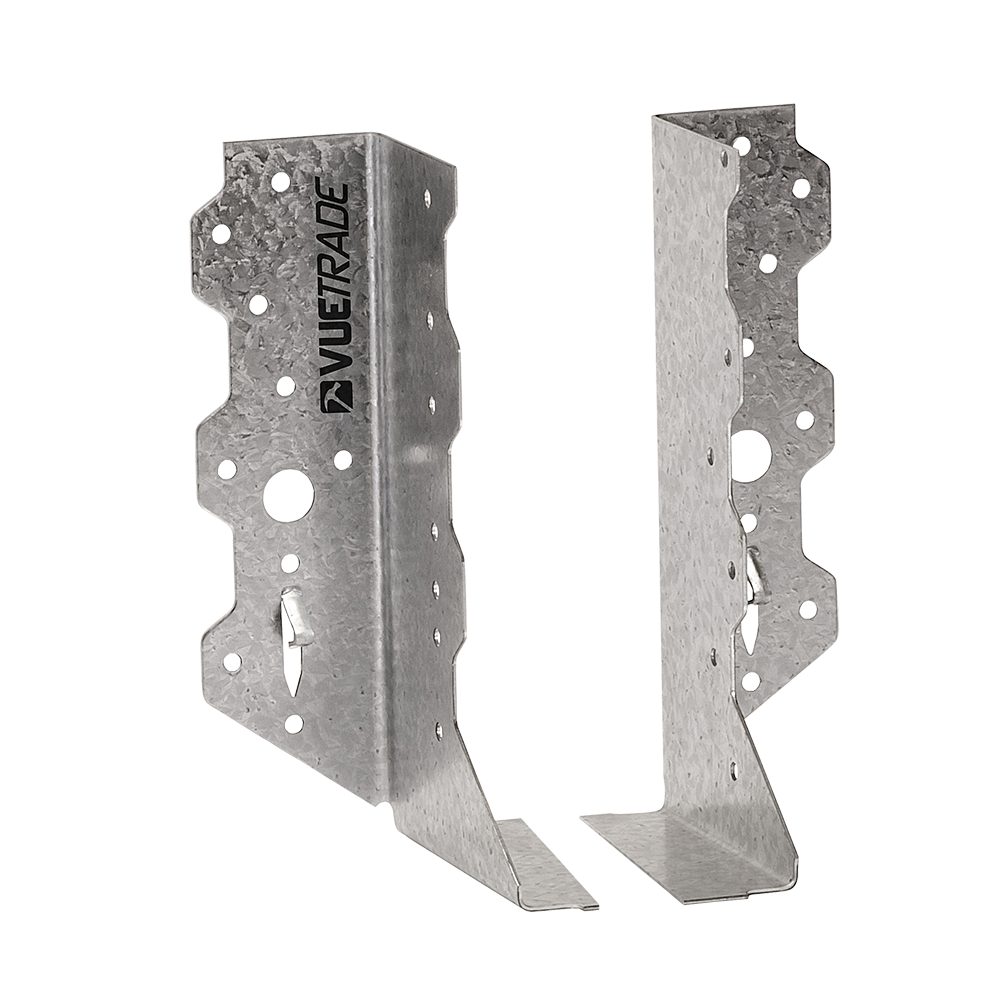

VUETRADE Split Joist Hangers are fast-fixing hangers for joist, beam and truss connections where the timber is over 50mm wide, installed as a pair (one each side). The nail spike holds each half in place while you fix it. 120, 140, 180 and 220mm hanger depths, galvanised or 316 stainless, sold in cartons of pairs. Australian made.
- Looking for joist hangers in general? See our joist hanger guide.
Features
- For timber over 50mm wide; installed as a pair
- Nail spike holds the hanger in position
- Hanger depths 120, 140, 180 and 220mm; cartons of 30 pairs (20 pairs for 220mm)
- Fix ONLY with VUETRADE 30 x 2.8mm galvanised connector plate nails or VUETRADE Type 17 12G x 35mm screws through the pre-bored holes; 316 hangers take VUETRADE 316 connector plate nails only
- Design capacities (for the pair) per depth, load type and joint group are in VUETRADE's technical data, with the listed nail count in each member (designed and tested to AS 1649)
- Exposure (VUETRADE area chart): galvanised for enclosed work and inland exterior work kept clear of fresh water, frequent wetting and drying and pool splash; on marine sites (within 1km of a sheltered coast or 10km of surf), in fresh-water contact or frequent wetting and drying, or around pools, use the 316 stainless version
- Australian made
Applications
- Joist to beam connections with wide timber
- Beam and truss connections
Split Joist Hangers: sizes and finishes we supply
8 lines by finish. Pick one above for its product code and pack sizes.
| Finish | Hanger depth | Lines |
|---|---|---|
| Galvanised | 120mm, 140mm, 180mm, 220mm | 4 |
| 316 Stainless | 120mm, 140mm, 180mm, 220mm | 4 |
Need them in bulk?
Add the sizes you need to your quote, or send us your list and we’ll price the lot and supply it with the rest of your order. Allmat supplies Split Joist Hangers across Adelaide and South Australia. Order ahead on 1300 03 03 63.
