Galvanised
Cyclone Straps

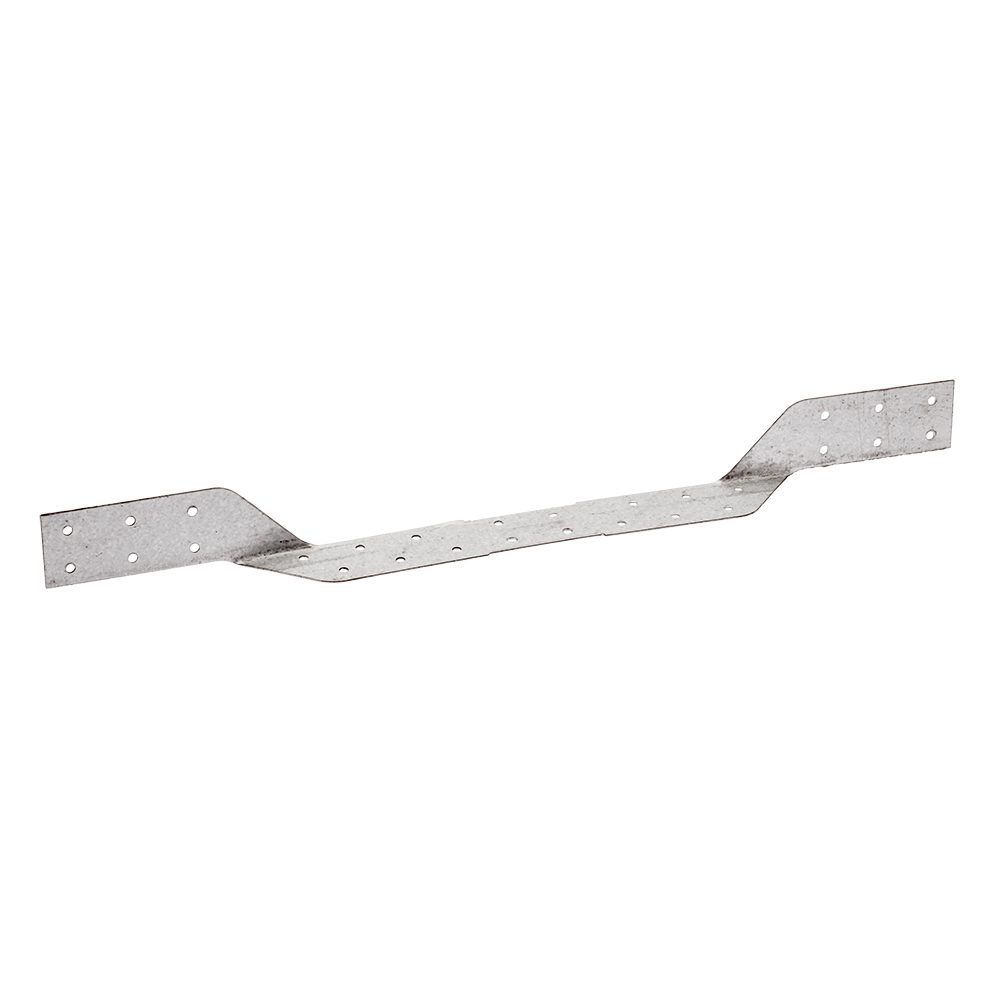

About the Cyclone Straps
VUETRADE Cyclone Straps are 1.0mm galvanised tie-downs for purlins and trusses to wall frames in cyclonic and high wind areas. 400, 600 and 900mm lengths, cartons of 100. VUETRADE describes the galvanised finish as designed for internal use (inside the roof space). Fix with VUETRADE 30 x 2.8mm galvanised connector plate nails; capacity depends on the nails per leg and install method in VUETRADE's technical data; tie-down design to AS 1684 or your engineer.
- Looking for cyclone straps in general? See our cyclone strap guide.
Features
- 400, 600 and 900mm lengths, 32mm wide, 1.0mm G300 Z275 galvanised steel
- Face fixed, wrap under, or wrap under and over (not 400mm) installs (VUETRADE)
- VUETRADE 30 x 2.8mm galvanised connector plate nails only, never punched through the strap
- Design capacity depends on nails per leg, install method and joint group (VUETRADE technical data); tie-down design to AS 1684 or your engineer
- Galvanised finish designed for internal use (VUETRADE): not for exposed, wet or marine sites
- Part of VUETRADE's cyclonic range
Applications
- Tying down purlins and trusses
- Cyclonic and high wind areas, to the tie-down design
Cyclone Straps: sizes and finishes we supply
3 lines by finish. Pick one above for its product code and pack sizes.
| Finish | Length | Lines |
|---|---|---|
| Galvanised | 400mm, 600mm, 900mm | 3 |
Need them in bulk?
Add the sizes you need to your quote, or send us your list and we’ll price the lot and supply it with the rest of your order. Allmat supplies Cyclone Straps across Adelaide and South Australia. Order ahead on 1300 03 03 63.
Browse all framing connectors
