Galvanised

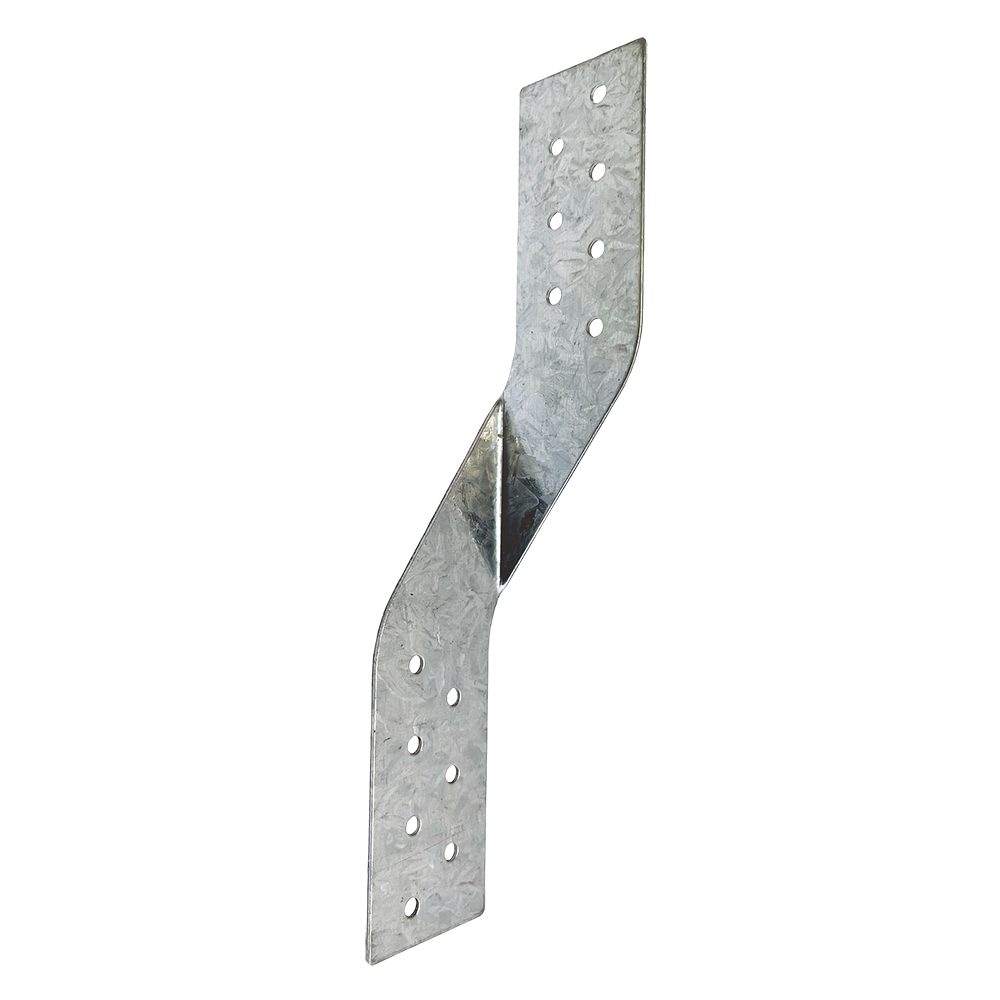

Heavy Duty Joist Straps
About the Heavy Duty Joist Straps
VUETRADE Heavy Duty Joist Straps are 1.0mm galvanised brackets for fixing ceiling joists to hanging beams, rafters to beams and floor joists to bearers. 31 x 170mm, left and right hand, cartons of 200. Capacity and nailing per VUETRADE technical data; tie-down design to AS 1684 or your engineer.
Features
- 31 x 170mm, 1.0mm steel
- Left and right hand profiles
- Galvanised
- At least 5 VUETRADE 30 x 2.8mm galvanised connector plate nails in each leg; a left and right pair doubles the capacity (VUETRADE technical data); tie-down design to AS 1684 or your engineer
- Exposure (VUETRADE area chart): galvanised suits enclosed work and inland exterior work kept clear of fresh water, frequent wetting and drying and pool splash. This product is galvanised only, so it does not suit marine sites (within 1km of a sheltered coast or 10km of surf) or those wet locations
Applications
- Ceiling joists to hanging beams
- Rafters to beams
- Floor joists to bearers
Heavy Duty Joist Straps: sizes and finishes we supply
2 lines by finish. Pick one above for its product code and pack sizes.
| Finish | Hand | Lines |
|---|---|---|
| Galvanised | Left hand, Right hand | 2 |
Need them in bulk?
Add the sizes you need to your quote, or send us your list and we’ll price the lot and supply it with the rest of your order. Allmat supplies Heavy Duty Joist Straps across Adelaide and South Australia. Order ahead on 1300 03 03 63.
Browse all framing connectors
