Galvanised · 316 Stainless
Connector Plate Nails
About the Connector Plate Nails

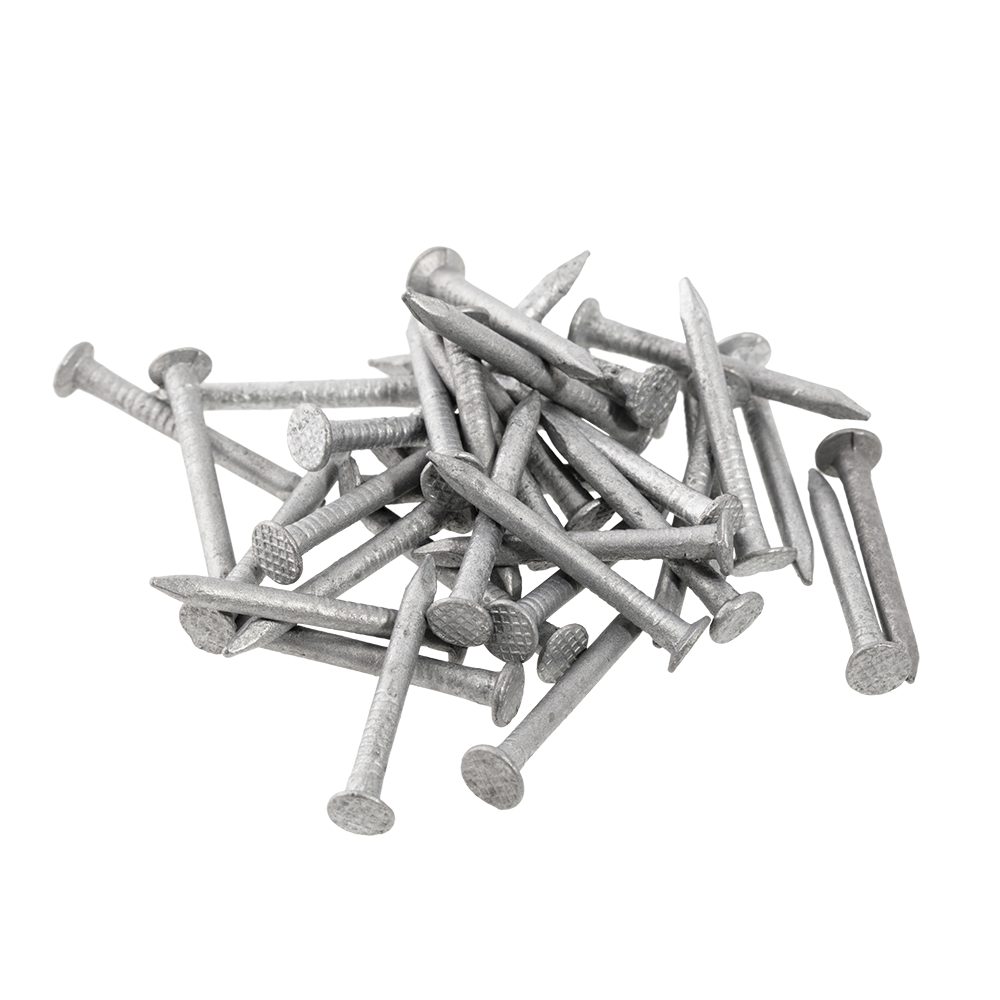

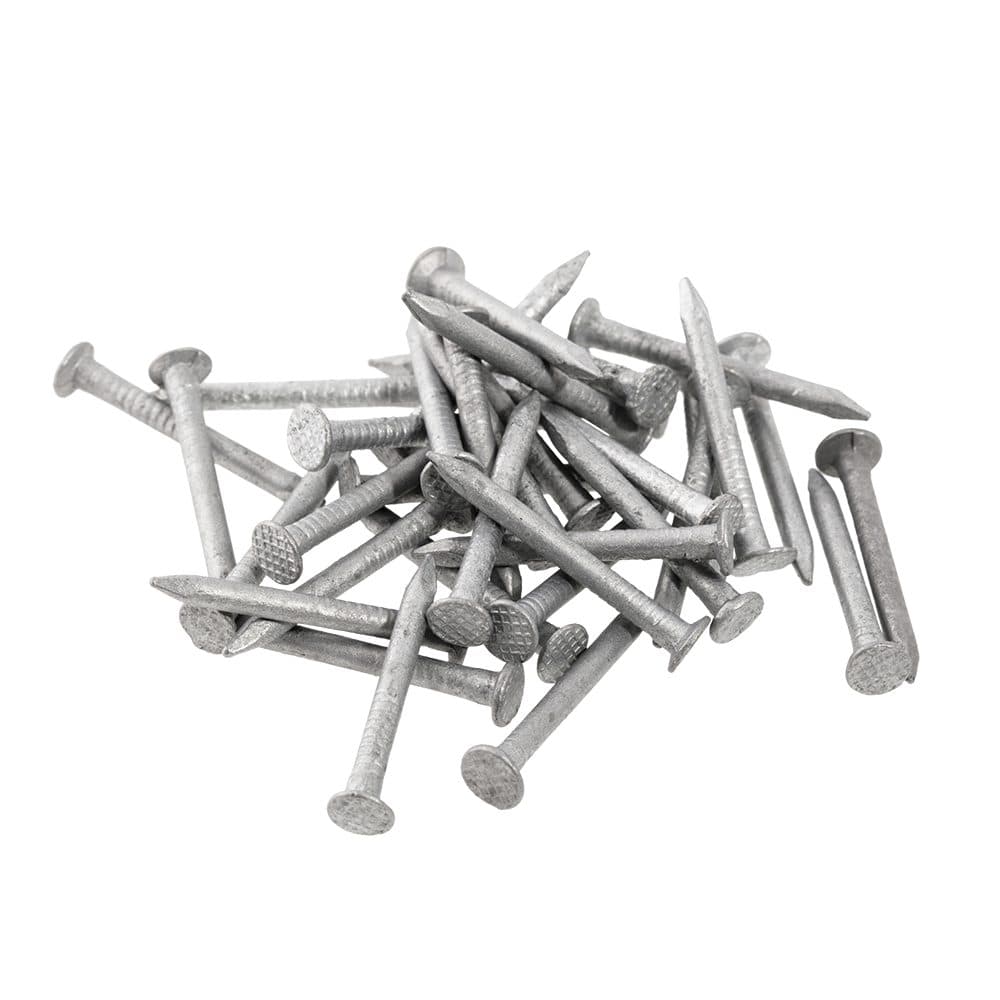

VUETRADE Connector Plate Nails are made for fixing VUETRADE timber connectors. 30 x 2.8mm hot dip galvanised nails for galvanised connectors and 316 stainless nails for stainless connectors, in 500g, 2kg and 5kg packs, plus the 33 x 3.15mm hot dip galvanised nail for VUETRADE I-beam hangers in 1kg packs.
- Looking for connector nails in general? See our connector nail guide.
Features
- 30 x 2.8mm hot dip galvanised: for VUETRADE galvanised connectors
- 30 x 2.8mm 316 stainless: for VUETRADE stainless connectors
- 33 x 3.15mm hot dip galvanised (about 430 nails per kg): for all VUETRADE I-beam hangers
- Packs 500g, 2kg and 5kg (30mm); 1kg (33mm)
- Galvanised nails on galvanised connectors and stainless on stainless: mixing them causes bimetallic corrosion that lowers the connector's capacity (VUETRADE)
- The design capacities in VUETRADE's technical data assume these nails
Applications
- Nailing VUETRADE joist hangers, bearer plates and connectors
- Nailing VUETRADE I-beam hangers (33mm nail)
- VUEBRACE strap fixing (30 x 2.8mm)
Connector Plate Nails: sizes and finishes we supply
7 lines by finish. Pick one above for its product code and pack sizes.
| Finish | Nail size | Pack | Lines |
|---|---|---|---|
| Galvanised | 30 x 2.8mm, 33 x 3.15mm | 500g, 1kg, 2kg, 5kg | 4 |
| 316 Stainless | 30 x 2.8mm | 500g, 2kg, 5kg | 3 |
Need them in bulk?
Add the sizes you need to your quote, or send us your list and we’ll price the lot and supply it with the rest of your order. Allmat supplies Connector Plate Nails across Adelaide and South Australia. Order ahead on 1300 03 03 63.
