Galvanised · 316 Stainless
Connector Plate Screws 12G Hex
About the Connector Plate Screws 12G Hex

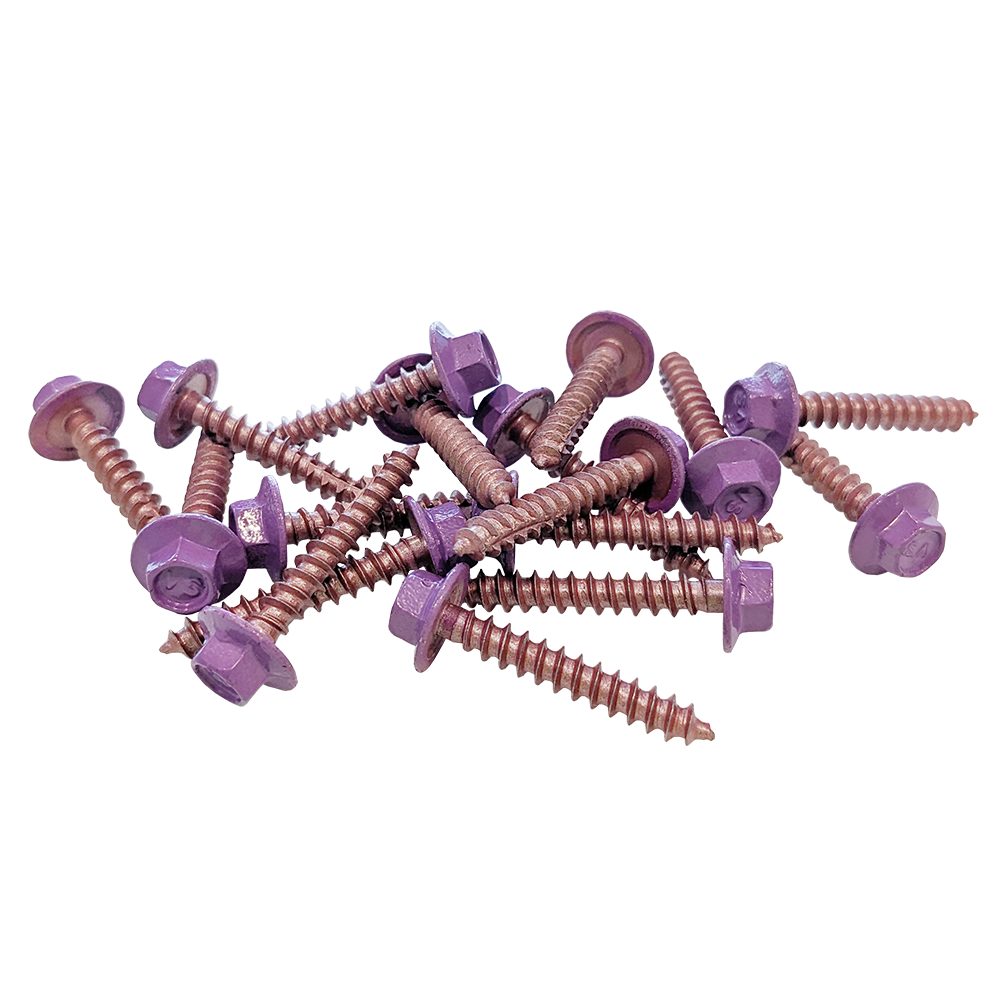

VUETRADE Connector Plate Screws are 12 gauge Type 17 screws with a 5/16 hex head for fixing VUETRADE timber connectors, used only where the connector's technical data lists 12G screws. 35 and 65mm long; zinc plated (VUETRADE's galvanised range, purple heads on 35mm and black on 65mm) or 316 stainless for stainless connectors, in packs of 100 or 250.
Features
- 12G (5.5mm), Type 17 drill point, 5/16 hex head
- 35 and 65mm lengths
- Zinc plated (VUETRADE's galvanised range: purple heads 35mm, black heads 65mm) or 316 stainless
- Packs of 100 or 250
- Independently tested to AS 3566.1 (VUETRADE)
- Only where a VUETRADE connector's technical data lists 12G screws, and to that connector's install guide (VUETRADE)
- Zinc plated screws on galvanised connectors and 316 on stainless: mixing them causes bimetallic corrosion that lowers the capacity
Applications
- VUETRADE connectors whose technical data lists 12G x 35mm screws (joist, split joist and I-beam hangers)
- 316 screws with VUETRADE stainless connectors that list screw fixing
Connector Plate Screws 12G Hex: sizes and finishes we supply
4 lines by finish. Pick one above for its product code and pack sizes.
| Finish | Length | Lines |
|---|---|---|
| 316 Stainless | 35mm, 65mm | 2 |
| Galvanised | 35mm, 65mm | 2 |
Need them in bulk?
Add the sizes you need to your quote, or send us your list and we’ll price the lot and supply it with the rest of your order. Allmat supplies Connector Plate Screws 12G Hex across Adelaide and South Australia. Order ahead on 1300 03 03 63.
