Galvanised
I-Beam Hangers

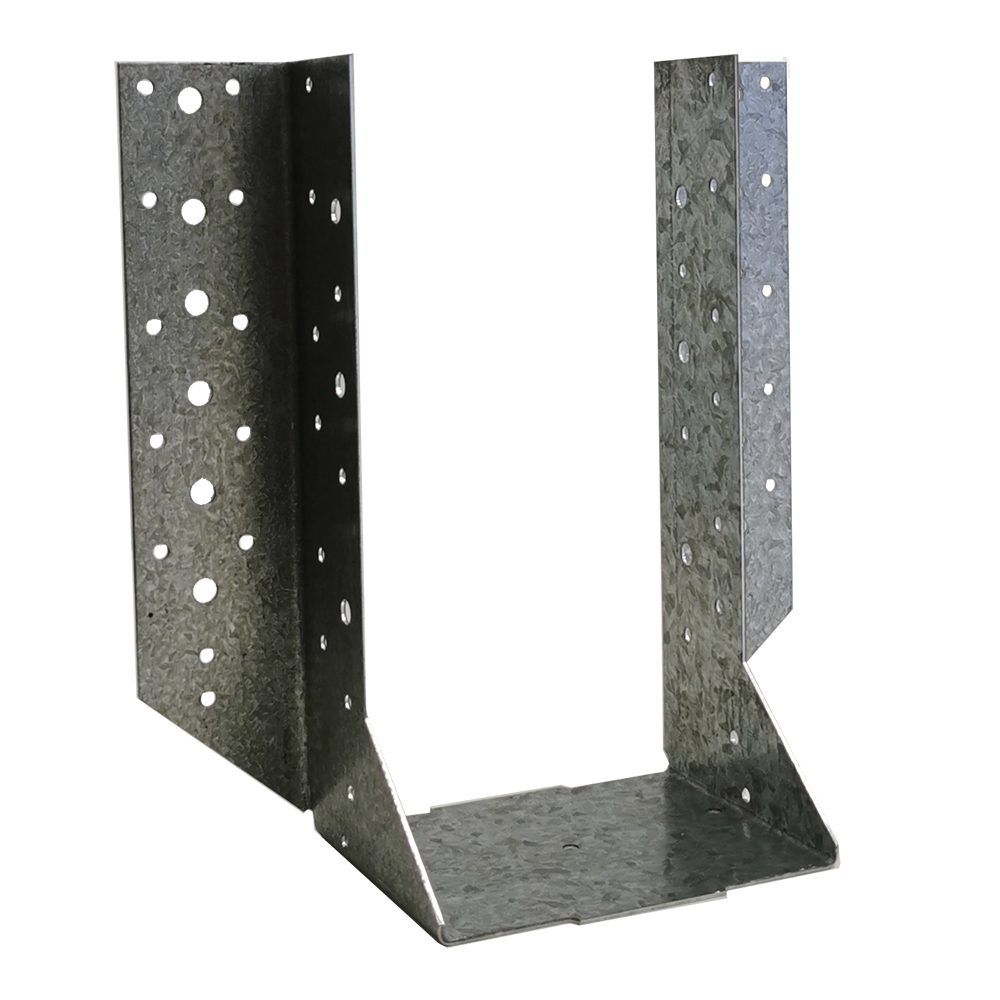

About the I-Beam Hangers
VUETRADE I-Beam Hangers connect I-beams and large joists to framing, and suit a wide range of I-beam and rough sawn timber sizes. 17 galvanised sizes, 40 to 90mm wide and 200 to 400mm deep. Australian made.
- Looking for joist hangers in general? See our joist hanger guide.
- Nails to suit (33 x 3.15mm): VUETRADE connector plate nails.
Features
- 17 sizes: widths 40 to 90mm, depths 200 to 400mm
- Minimum fixings into the supporting beam (VUETRADE): 200mm deep 6 screws or 12 nails; 240mm 6 or 16; 300mm 8 or 18; 360 and 400mm 10 or 20; plus 1 x 6G x 30mm galvanised bugle head screw up through the bottom hole into the I-beam
- Use VUETRADE Type 17 12G x 35mm screws or VUETRADE 33 x 3.15mm galvanised connector plate nails through the pre-bored holes; fasteners no closer than 30mm (screws) or 17mm (nails) to the timber edge
- Hanger at least 60% of the I-beam height and covering at least 10mm of the top flange, otherwise fit a web stiffener (VUETRADE)
- 1.2mm G300 Z275 galvanised steel; design capacities in VUETRADE's technical data (designed and tested to AS 1649)
- Exposure (VUETRADE area chart): galvanised suits enclosed work and inland exterior work kept clear of fresh water, frequent wetting and drying and pool splash. This product is galvanised only, so it does not suit marine sites (within 1km of a sheltered coast or 10km of surf) or those wet locations
- Australian made
Applications
- Hanging I-beams and large joists
- Floor and roof framing with I-beams or rough sawn timber
I-Beam Hangers: sizes and finishes we supply
17 lines by finish. Pick one above for its product code and pack sizes.
| Finish | Width | Depth | Lines |
|---|---|---|---|
| Galvanised | 40mm, 45mm, 51mm, 63mm, 70mm, 90mm | 200mm, 240mm, 300mm, 360mm, 400mm | 17 |
Need them in bulk?
Add the sizes you need to your quote, or send us your list and we’ll price the lot and supply it with the rest of your order. Allmat supplies I-Beam Hangers across Adelaide and South Australia. Order ahead on 1300 03 03 63.
