Z Type HDG Brackets
About the Z Type HDG Brackets

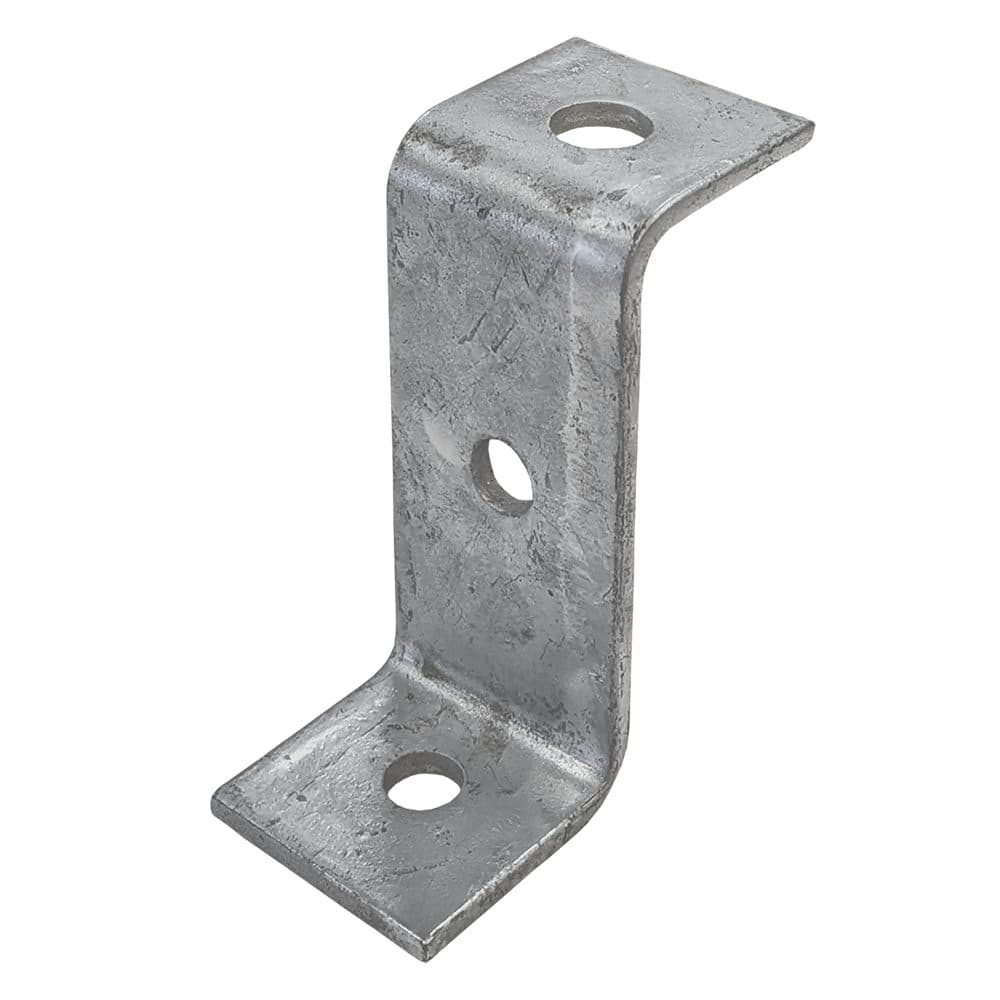

The VUETRADE Z Type HDG Bracket is a Z-angled bracket for tie-down of timber trusses to top plates and similar timber-to-timber joins. It is bolted, not nailed: one M12 bolt through the side and an M12 or M16 bolt or tie-down rod top or bottom. 50 x 105 x 50mm in 5.0mm hot dip galvanised G300 steel.
- Looking for Z brackets in general? See our Z bracket guide.
Features
- Z-angled bracket, 50 x 105 x 50mm
- 5.0mm G300 steel, hot dip galvanised
- Fixing (VUETRADE): 1 x M12 bolt through the side into the rafter or chord, and 1 x M12 or M16 bolt or tie-down rod top or bottom; washers to AS 1720.1 Table 4.11 on the timber side
- Wind uplift design capacity (VUETRADE, Category 1 joints, fixed as above): JD3 8.9, JD4 6.5, JD5 4.7 kN; wind uplift only
- Exposure (VUETRADE area chart): galvanised suits enclosed work and inland exterior work kept clear of fresh water, frequent wetting and drying and pool splash. This product is galvanised only, so it does not suit marine sites (within 1km of a sheltered coast or 10km of surf) or those wet locations
Applications
- Truss to top plate tie-down
- Timber-to-timber connections
- Tie-down design to AS 1684 or your engineer
Z Type HDG Brackets: sizes and finishes we supply
1 line by finish. Pick one above for its product code and pack sizes.
| Finish | Size | Lines |
|---|---|---|
| Galvanised | 50 x 105 x 50mm | 1 |
Need them in bulk?
Add the sizes you need to your quote, or send us your list and we’ll price the lot and supply it with the rest of your order. Allmat supplies Z Type HDG Brackets across Adelaide and South Australia. Order ahead on 1300 03 03 63.
Browse all building brackets
