Pergola Angles
About the Pergola Angles

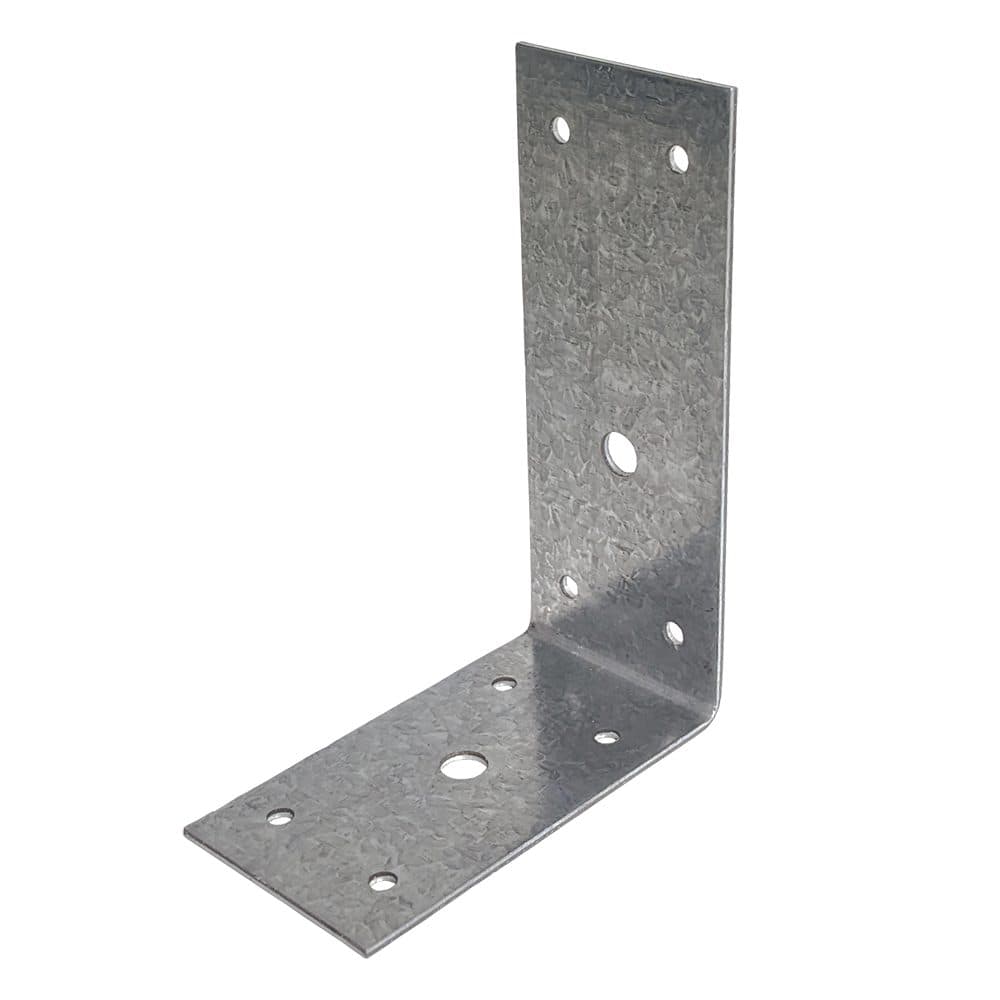

VUETRADE Pergola Angles are multi-purpose brackets for connecting pergola rafters to beams. 92 x 68 x 36mm in 1.6mm steel: G300 Z275 galvanised or 316 stainless (cartons of 200), or BLACKOUT black powder coat over galvanised steel (cartons of 50). VUETRADE publishes a wind uplift capacity for the galvanised and BLACKOUT angles when fixed with its nails and one 12g screw. Australian made.
- Looking for pergola brackets in general? See our pergola bracket guide.
Features
- 92 x 68 x 36mm, 1.6mm steel
- Fixing (VUETRADE): 4 x VUETRADE 30 x 2.8mm connector plate nails into the rafter, 4 into the supporting beam, and 1 x Type 17 12g x 65mm screw into the beam, through the pre-bored holes only; supporting beam at least 70mm deep
- Wind uplift design capacity, galvanised and BLACKOUT angles (VUETRADE, Category 1 joints, fixed as above): J5 1.7, J4 2.2, J3 3.1, JD5 2.5, JD4 3.1, JD3 4.3 kN. No uplift figure is published here for the 316 angle: have a 316 pergola connection designed by your engineer
- Galvanised nails and screws on galvanised and BLACKOUT angles, stainless nails and screws on stainless (bimetallic corrosion, VUETRADE)
- Galvanised, 316 stainless or BLACKOUT
- Exposure (VUETRADE area chart): galvanised for enclosed work and inland exterior work kept clear of fresh water, frequent wetting and drying and pool splash; on marine sites (within 1km of a sheltered coast or 10km of surf), in fresh-water contact or frequent wetting and drying, or around pools, use the 316 stainless version
- BLACKOUT is black powder coat over G300 Z275 galvanised steel: same exposure limits as galvanised (VUETRADE technical data)
- Check local rules on stainless connectors (VUETRADE)
- Australian made
Applications
- Connecting pergola rafters to beams (beam at least 70mm deep)
- Pergola tie-down to the uplift figures above (galvanised and BLACKOUT) or your engineer's design
Pergola Angles: sizes and finishes we supply
3 lines by finish. Pick one above for its product code and pack sizes.
| Finish | Size | Lines |
|---|---|---|
| Galvanised | 92 x 68 x 36mm | 1 |
| 316 Stainless | 92 x 68 x 36mm | 1 |
| BLACKOUT | 92 x 68 x 36mm | 1 |
Need them in bulk?
Add the sizes you need to your quote, or send us your list and we’ll price the lot and supply it with the rest of your order. Allmat supplies Pergola Angles across Adelaide and South Australia. Order ahead on 1300 03 03 63.
