L Type HDG Brackets
About the L Type HDG Brackets

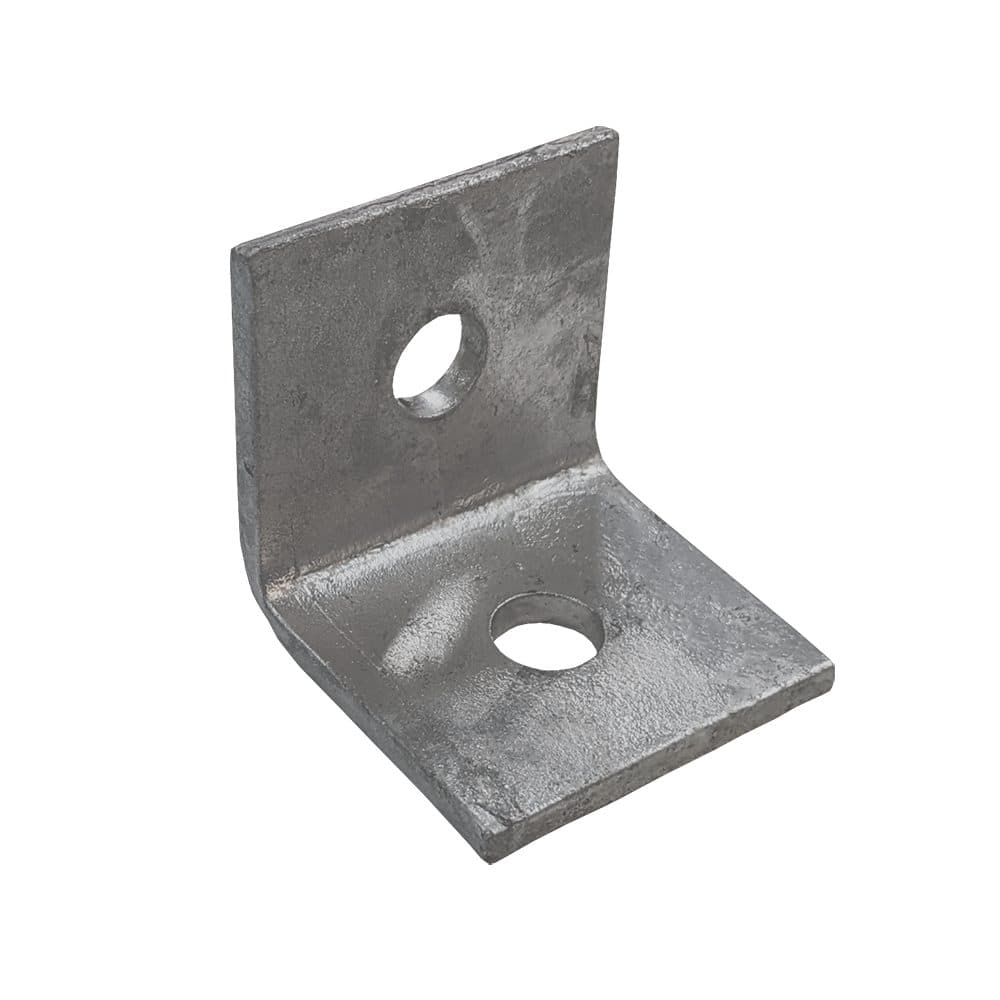

VUETRADE L Type HDG Brackets are hot dip galvanised right-angle brackets for heavy duty timber to timber connections, bolted with M10 or M12 bolts or coach screws of an equivalent size (VUETRADE). 5.0 and 6.5mm steel in 13 sizes from 40 x 40 x 40mm to 75 x 150 x 150mm (L x W x H).
- Looking for angle brackets or L brackets in general? See our angle bracket guide.
Features
- G300 steel to AS 1379, hot dip galvanised to a minimum of 300g/m2
- 5.0 and 6.5mm thick
- M10 or M12 bolts as listed per size, or coach screws of an equivalent size (VUETRADE technical data)
- Sizes 40 x 40 x 40mm to 75 x 150 x 150mm (L x W x H)
- Exposure (VUETRADE area chart): galvanised suits enclosed work and inland exterior work kept clear of fresh water, frequent wetting and drying and pool splash. This product is galvanised only, so it does not suit marine sites (within 1km of a sheltered coast or 10km of surf) or those wet locations
- VUETRADE publishes no design capacity for this bracket: capacities depend on the use, timber grade and load direction, so structural use needs an engineer's design to AS 1720.1, with bolt edge and end distances to AS 1720.1 (VUETRADE technical data)
Applications
- Right-angle timber to timber connections
L Type HDG Brackets: sizes and finishes we supply
13 lines by finish. Pick one above for its product code and pack sizes.
| Finish | Size (L x W x H), thickness, bolt | Lines |
|---|---|---|
| Galvanised | 40 x 40 x 40mm, 5mm, M10, 40 x 40 x 40mm, 5mm, M12, 50 x 50 x 50mm, 5mm, M12, 65 x 65 x 65mm, 5mm, M12, 75 x 90 x 90mm, 6.5mm, M12, 40 x 40 x 80mm, 5mm, M12, 50 x 50 x 100mm, 5mm, M12, 65 x 65 x 130mm, 5mm, M12, 75 x 90 x 150mm, 6.5mm, M12, 40 x 80 x 80mm, 5mm, M12, 50 x 100 x 100mm, 5mm, M12, 65 x 130 x 130mm, 5mm, M12, 75 x 150 x 150mm, 6.5mm, M12 | 13 |
Need them in bulk?
Add the sizes you need to your quote, or send us your list and we’ll price the lot and supply it with the rest of your order. Allmat supplies L Type HDG Brackets across Adelaide and South Australia. Order ahead on 1300 03 03 63.
