Galvanised · 316 Stainless
Ant Caps

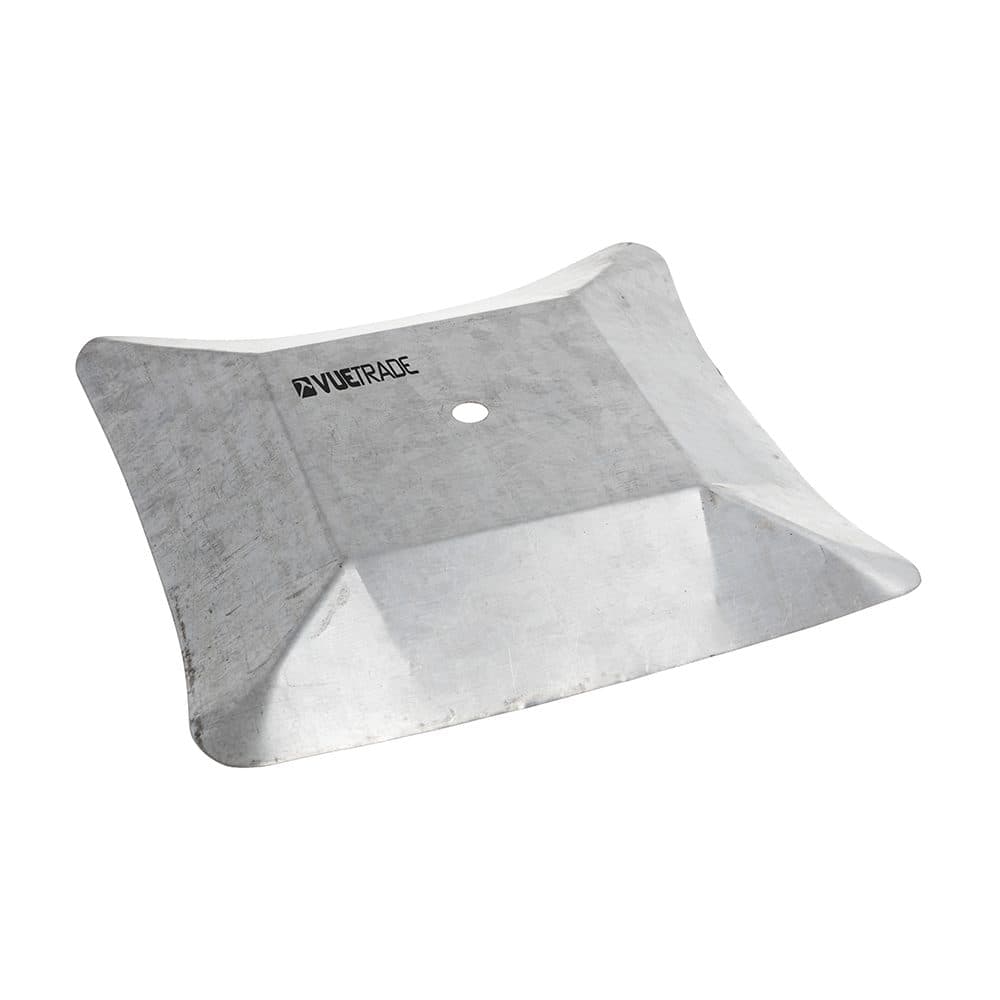

About the Ant Caps
VUETRADE Ant Caps sit between timber, metal or masonry stumps or bases and the floor timbers in termite-prone areas, so termite mud tunnels show up at inspection. They do not stop termites: VUETRADE warns they will not prevent the passage of ants or termites, so check inspection requirements with your local inspector or council. Galvanised 100 and 125mm square caps with or without a hole and a 25 or 50mm flange, 230mm square and 230 x 115mm half caps without a hole, and a 316 stainless 100mm cap with a 25mm flange for coastal sites. For new work, AS 3660.1 as quoted by VUETRADE needs every edge at least 40mm out from the wall face, which the 50mm flange caps give.
Features
- Shows termite mud tunnels at inspection; does not prevent termite passage
- Galvanised 100 x 100 and 125 x 125mm, with or without hole, 25 or 50mm flange
- Galvanised 230 x 230mm and 230 x 115mm half cap, 50mm flange, no hole
- 316 stainless 100 x 100mm, 25mm flange, no hole, for coastal areas
- AS 3660.1 (new building work), as set out by VUETRADE: the cap must cover the top of the post and no edge may be less than 40mm from the vertical face of the wall, so the flange should be more than 40mm (the 50mm flange caps). Check the 25mm flange caps with your inspector or council before using them on new work
- Galvanised caps are 0.5mm G300 Z275 steel; stainless caps are 316
- Keep galvanised caps off stainless framing and stainless caps off galvanised framing: the contact causes accelerated electrolytic corrosion (VUETRADE)
- Contact your local inspector or council for inspection requirements (VUETRADE)
Applications
- Between stumps or piers and bearers in termite-prone areas
- Making termite activity visible for inspection
Ant Caps: sizes and finishes we supply
11 lines by type and finish. Pick one above for its product code and pack sizes.
| Hole | Finish | Cap size | Flange | Lines |
|---|---|---|---|---|
| No hole | Galvanised | 100 x 100mm, 125 x 125mm, 230 x 230mm, 230 x 115mm (half cap) | 25mm flange, 50mm flange | 6 |
| With hole | Galvanised | 100 x 100mm, 125 x 125mm | 25mm flange, 50mm flange | 4 |
| No hole | 316 Stainless | 100 x 100mm | 25mm flange | 1 |
Need them in bulk?
Add the sizes you need to your quote, or send us your list and we’ll price the lot and supply it with the rest of your order. Allmat supplies Ant Caps across Adelaide and South Australia. Order ahead on 1300 03 03 63.
