Hold Down Brackets
About the Hold Down Brackets

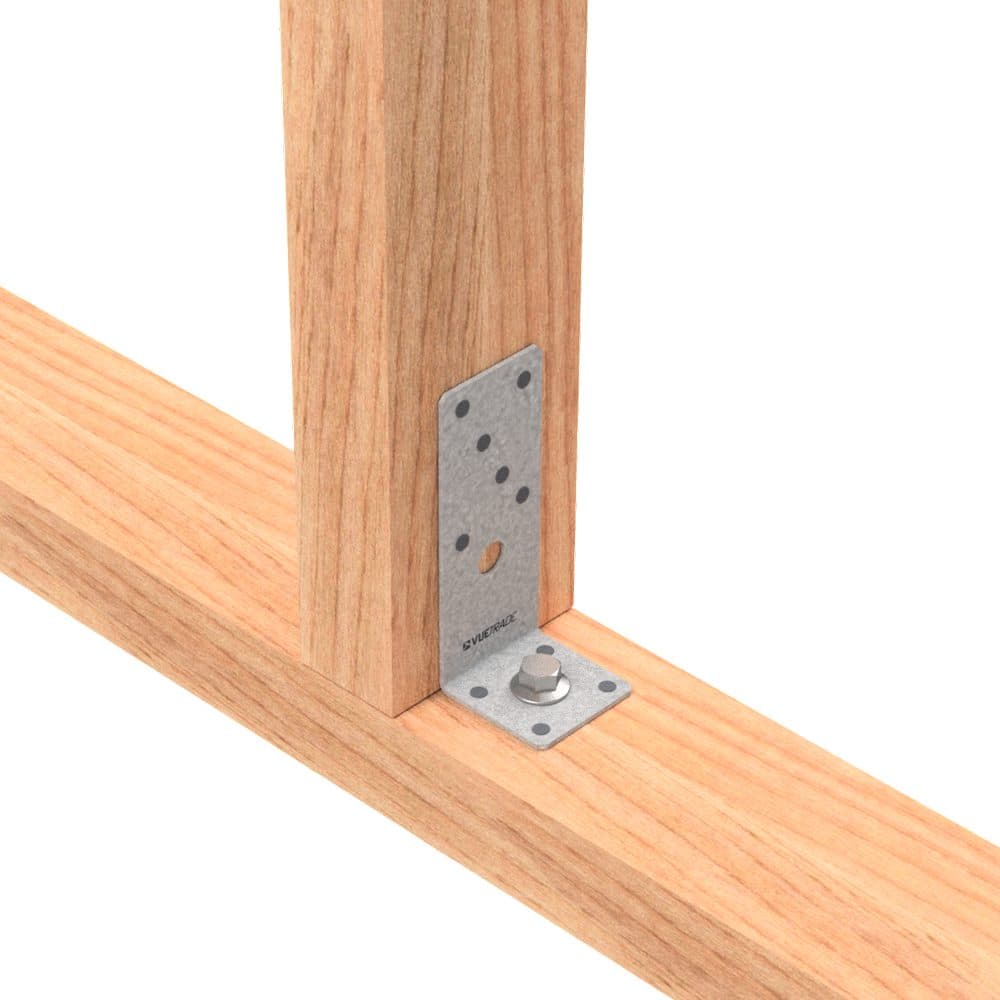

VUETRADE Hold Down Brackets are 2.0mm multi-purpose brackets that provide tie-down resistance, often used for wall studs and roof trusses. Each is fixed with VUETRADE 30 x 2.8mm connector plate nails (6 into the stud or rafter, 4 into the bottom member) plus one M12 bolt or rod into the supporting member. 120 x 50 x 47mm, galvanised or 316 stainless (cartons of 75) or BLACKOUT (cartons of 50). Australian made.
Features
- 2.0mm steel, 120 x 50 x 47mm
- Fixing (VUETRADE): 6 x 30 x 2.8mm connector plate nails into the stud or rafter, 4 into the bottom member, and 1 x M12 bolt or rod through a 13mm hole into the supporting timber (a concrete bolt into a slab); a square washer may be used
- Wind uplift design capacity (VUETRADE, Category 1 joints, fixed as above, with enough anchorage below): J5 2.5, J4 3.3, J3 4.6, JD5 3.8, JD4 4.6, JD3 6.5 kN; a pair of brackets doubles it
- Galvanised (G300 Z275), 316 stainless or BLACKOUT
- Exposure (VUETRADE area chart): galvanised for enclosed work and inland exterior work kept clear of fresh water, frequent wetting and drying and pool splash; on marine sites (within 1km of a sheltered coast or 10km of surf), in fresh-water contact or frequent wetting and drying, or around pools, use the 316 stainless version
- BLACKOUT is black powder coat over G300 Z275 galvanised steel: same exposure limits as galvanised (VUETRADE technical data)
- Stainless nails and a stainless M12 bolt with the 316 bracket (VUETRADE); check local rules on stainless connectors
- Australian made
Applications
- Wall stud and roof truss tie-down
- Tie-down design to AS 1684 or your engineer
Hold Down Brackets: sizes and finishes we supply
3 lines by finish. Pick one above for its product code and pack sizes.
| Finish | Size | Lines |
|---|---|---|
| Galvanised | 120 x 50 x 47mm | 1 |
| BLACKOUT | 120 x 50 x 47mm | 1 |
| 316 Stainless | 120 x 50 x 47mm | 1 |
Need them in bulk?
Add the sizes you need to your quote, or send us your list and we’ll price the lot and supply it with the rest of your order. Allmat supplies Hold Down Brackets across Adelaide and South Australia. Order ahead on 1300 03 03 63.
