Rivet Nuts (Rivnuts & Nutserts)
Rivet nuts (rivnuts, nutserts) that set from one side to put a strong thread in thin sheet, tube and box section.
About the Rivet Nuts (Rivnuts & Nutserts)
Rivet nuts, also called rivnuts or nutserts, set from one side like a pop rivet to give a strong thread in sheet, tube and box section that is too thin to tap or has no access behind, on vehicle bodies, trailers, canopies and steel fabrication. They come with a flat head or a reduced (near-flush) head on a knurled round body, or with a full hex body, in zinc plated steel, aluminium or 316 stainless, from M3 to M12. Choose the head, material and size above; the guide below covers hole sizes, grip range and fitting.
Also called rivnuts, riv nuts, nutserts, blind nuts or threaded inserts.
Features
- One-piece blind fastener
- Knurled/splined body to prevent rotation
- Chamfered end aids insertion
- Flat head, round body, open end
- 316 stainless, the most corrosion resistant option we carry
- Aluminium and zinc-plated options
- M3 to M12
Applications
- Vehicle bodies, canopies and trailers
- Threads in sheet and tube too thin to tap
- Box section where you cannot reach behind
- Aluminium and plastic panels
- Metal fabrication
What rivet nuts are for
A rivet nut is a threaded insert that is set from one side, like a pop rivet. It gives you a load-bearing female thread in sheet, panels, tube and extrusions that are too thin to tap or where you cannot get a nut behind. Rivet nuts are widely used on vehicle bodies and chassis, trailers, canopies, steel sheet and fabrication.
Which rivet nut?

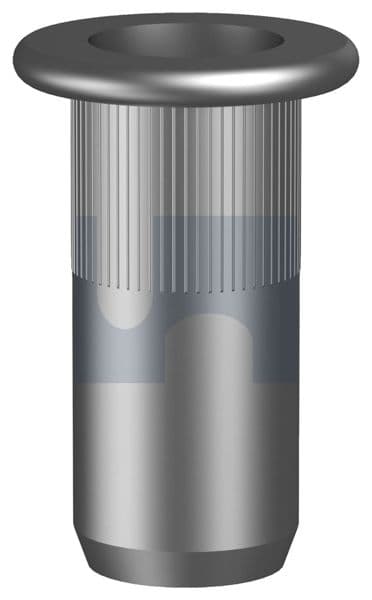

- Flat head, round knurled body: the general purpose rivet nut. The flat head spreads the load on the sheet and the knurls grip the hole so it does not spin.
- Reduced head (also called countersunk, flush or thin sheet head): a low-profile head that sits almost flush with the sheet.

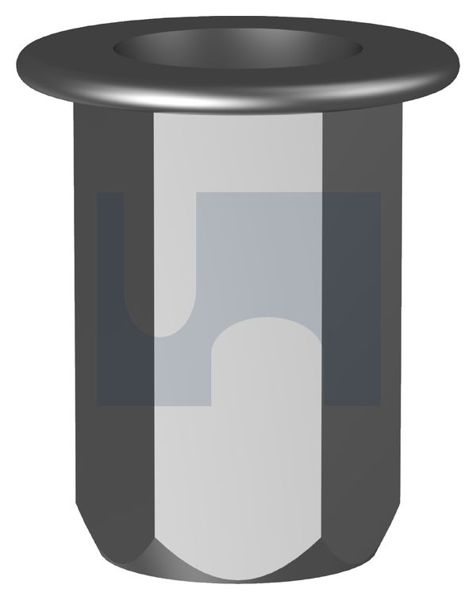

- Full hex body: fits a hex-punched hole so it cannot turn, for higher torque.
- Zinc plated steel for general work, aluminium for aluminium sheet, 316 stainless for marine and corrosive conditions.
Rivet nut hole sizes and grip range
Drill the hole to the size for the thread, and choose the length whose grip range covers the thickness of your sheet. In the zinc plated flat head range each size comes in a short and a long length for thin and thicker material.
Zinc plated flat head round knurled rivet nuts: hole size and grip range for each length. Tap a number to show it in the selector above.
How to fit a rivet nut
- Drill a clean hole of the right size and remove the burr.
- Screw the rivet nut onto the mandrel of a rivet nut tool (our hand kit, or a drill attachment in a cordless drill; our tools cover M3 to M10), head against the tool nose.
- Push it into the hole until the head sits flat on the sheet.
- Operate the tool: it pulls the thread toward the head, collapsing the body into a bulge behind the sheet that clamps it tight.
- Unwind the mandrel. The thread is ready for a bolt or screw straight away.
Rivet nuts in Adelaide
Allmat supplies rivet nuts, pop rivets and machine screws to fabricators and trade across Adelaide and South Australia. Add them to a quote with the rest of your list, and we will price the lot.
Rivet nuts for fabrication and vehicle work
Rivet nuts in zinc, aluminium and stainless are available to order from Allmat for fabricators, auto electricians, body builders and trade across Adelaide and South Australia. Order through Allmat, we pick and pack it, then click and collect from the Allmat yard or have it delivered to site.
Goes with
Questions
Is a rivet nut the same as a rivnut or nutsert?
Yes. Rivet nut, rivnut, nutsert, blind nut and threaded insert all describe the same one-sided threaded insert.
What size hole for an M6 rivet nut?
9mm for our M6 round body rivet nuts. M4 takes 6mm, M5 7mm, M8 11mm, M10 13mm and M12 16mm.
What is grip range on a rivet nut?
The range of sheet thickness the rivet nut can clamp. Choose the length whose grip range covers your material, for example 0.5 to 3.0mm for a short M6.
Why use a hex rivet nut?
A hex body in a hex-punched hole cannot spin, so it takes more tightening torque than a round body rivet nut.
Which rivet nut for aluminium?
Aluminium rivet nuts, which avoid corrosion between different metals. Use 316 stainless rivet nuts in stainless sheet.
Where can I buy rivet nuts in Adelaide?
Order through Allmat. Order ahead by phone on 1300 03 03 63 or send your list for a quote, then click and collect from 25 Kapara Road, Gillman, or have them delivered to site.
Rivet Nuts (Rivnuts & Nutserts): sizes and finishes we supply
67 lines by type and finish. Pick one above for its product code, pack sizes and dimensions.
| Style | Finish | Sizes | Lengths | Lines |
|---|---|---|---|---|
| Reduced | Zinc Plated | M3, M4, M5, M6, M8, M10, M12 | 9 to 27 (16 lengths) | 19 |
| Standard | Zinc Plated | M4, M5, M6, M8, M10, M12 | 10.5 to 28 (12 lengths) | 12 |
| Full hex | Zinc Plated | M4, M5, M6, M8, M10, M12 | 11 to 27 (11 lengths) | 11 |
| Standard | 316 Stainless | M4, M5, M6, M8, M10 | 11 to 24 (9 lengths) | 10 |
| Reduced | 316 Stainless | M4, M5, M6, M8, M10 | 10.5, 11.5, 14, 16.5, 21 | 5 |
| Standard | Aluminium | M4, M5, M6, M8, M10 | 11, 13, 16, 17.5, 19 | 5 |
| Reduced | Aluminium | M3, M4, M5, M6, M8 | 8.5, 10, 12, 14.5, 16.5 | 5 |
Data sheets and documents
The documents for the product you choose are listed with the selector above. Here is every Rivet Nuts (Rivnuts & Nutserts) document from Hobson Engineering.
All Rivet Nuts (Rivnuts & Nutserts) documents (16)
Data sheets and technical data (5)
Did You Know flyers (8)
Guides and articles (3)
