Concealed Bolt Down Post Support Kit
About the Concealed Bolt Down Post Support Kit

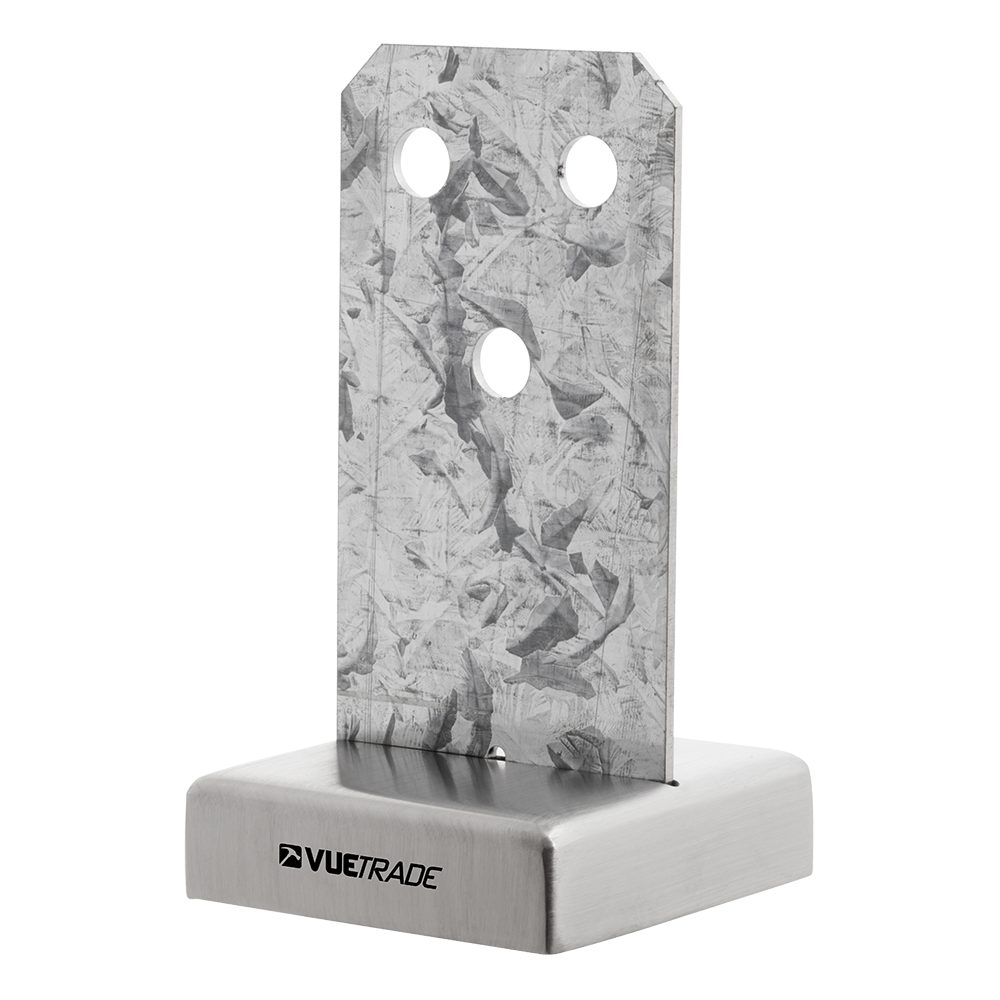

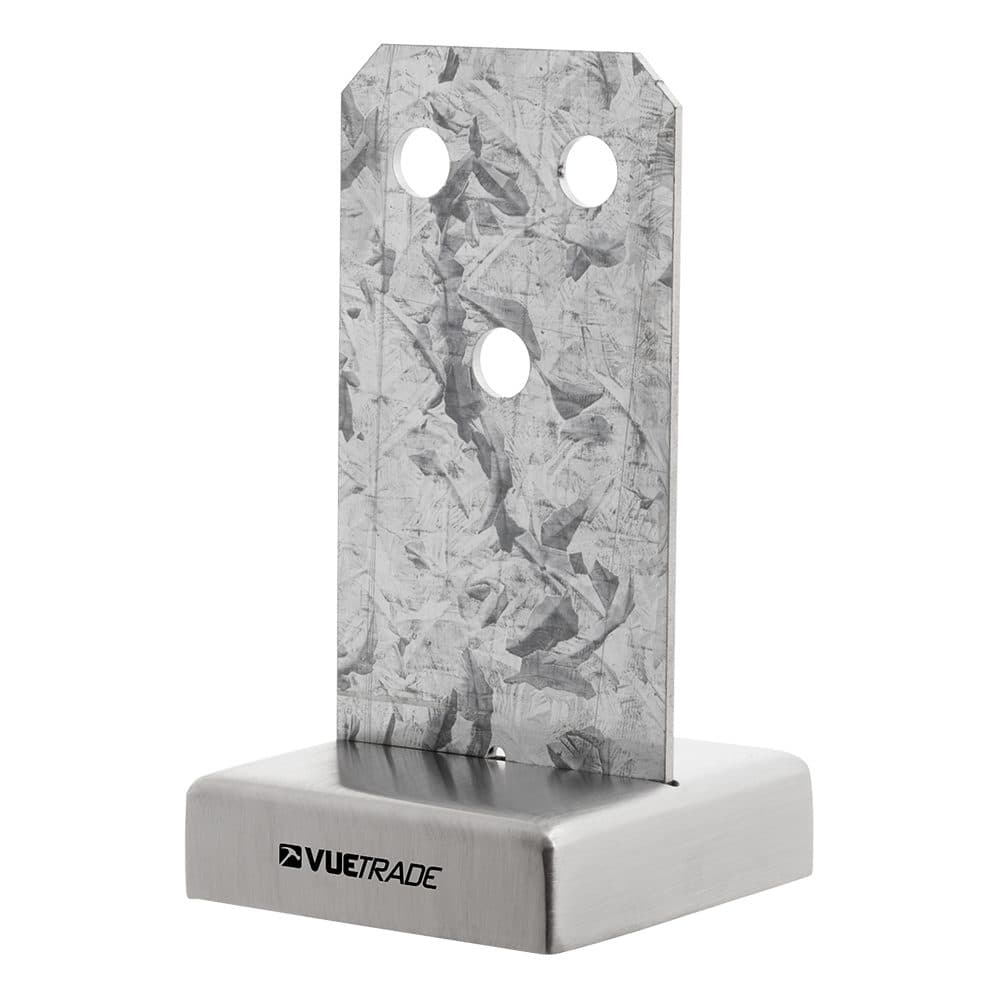

The VUETRADE Concealed Bolt Down Post Support Kit fixes a 90 to 100mm decorative timber post to concrete with the blade and cap concealed, for an architectural finish. Hot dip galvanised 3.5mm G300 steel blade (cut a 3.5mm slot in the post), 145mm blade height including the base plate, 80mm blade width, with a 304 stainless concealing cap included. 3 x M12 bolts through the blade and 2 x M12 concrete bolts in the base.
- Concealed bolts for the blade (M12, 90 to 110mm working width): VUEBOLT concealed thread bolts.
Features
- Blade and cap concealed for an architectural finish
- Suits 90 to 100mm posts; VUETRADE gives post sizes as a guide and says to consult a structural engineer
- 3.5mm steel blade (VUETRADE technical data): cut a 3.5mm slot in the post
- 145mm blade height including base plate, 80mm blade width
- Fixing (VUETRADE): 3 x M12 bolts or VUEBOLTs through the blade tightly fastened with nuts, 2 x M12 concrete bolts in the base
- VUETRADE uplift design capacity: JD3 22.0, JD4 17.7, JD5 15.4 kN, with that fixing and a post at least 90 x 90mm sitting flat on the base; assumes enough anchorage in the concrete
- Hot dip galvanised blade with a 304 stainless concealing cap (included)
- Exposure (VUETRADE area chart): galvanised suits enclosed work and inland exterior work kept clear of fresh water, frequent wetting and drying and pool splash. This product is galvanised only, so it does not suit marine sites (within 1km of a sheltered coast or 10km of surf) or those wet locations
Applications
- Decorative timber posts on concrete
- Entry and feature posts
- Decks, pergolas and roofed structures: to VUETRADE's technical data (uplift, and dead load where listed, with its fixing conditions) or your engineer's design. VUETRADE: post supports give no lateral stability, so brace the posts to a structural engineer's design; footing embedment and concrete anchor bolts are set by your engineer
Concealed Bolt Down Post Support Kit: sizes and finishes we supply
1 line by finish. Pick one above for its product code and pack sizes.
| Finish | Suits post (square) | Lines |
|---|---|---|
| Galvanised | 90 to 100mm | 1 |
Need them in bulk?
Add the sizes you need to your quote, or send us your list and we’ll price the lot and supply it with the rest of your order. Allmat supplies Concealed Bolt Down Post Support Kit across Adelaide and South Australia. Order ahead on 1300 03 03 63.
