Tradies Bolt Down Post Supports
About the Tradies Bolt Down Post Supports

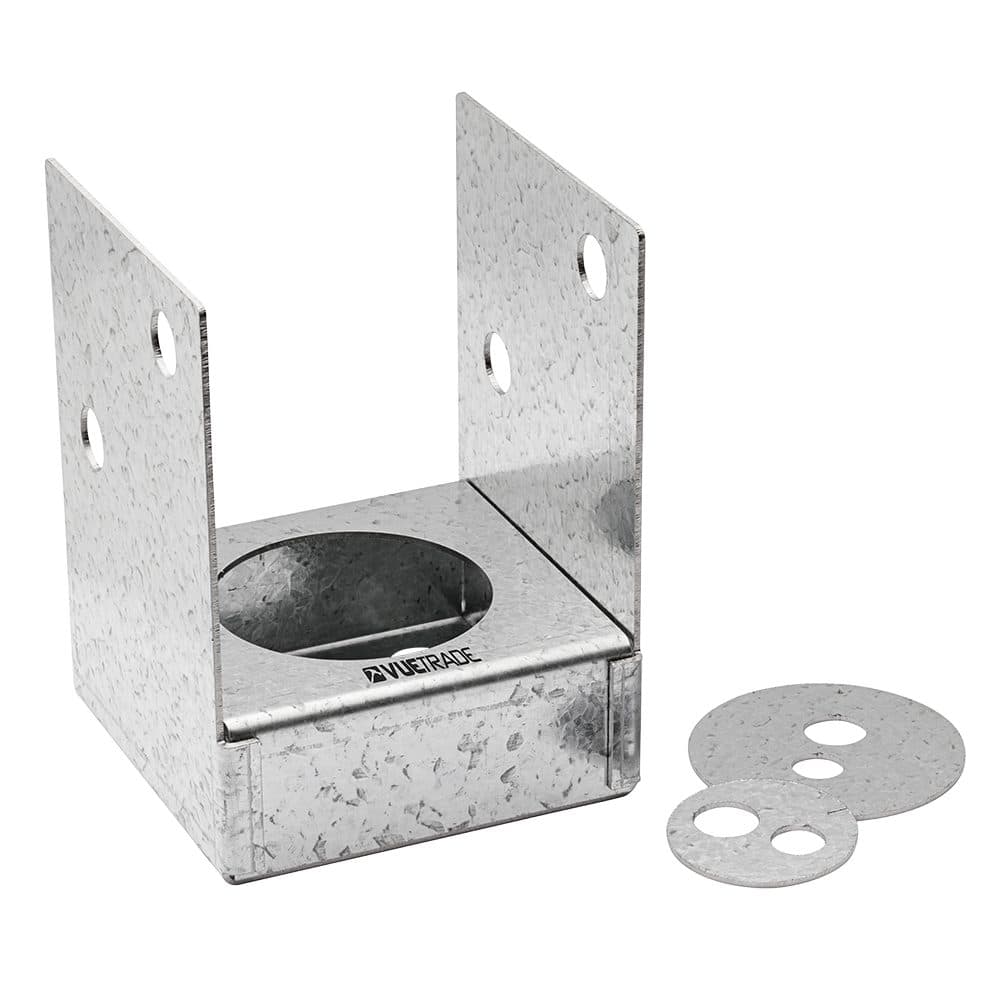

VUETRADE Tradies' Bolt Down Post Supports bolt a 90mm timber post down with an adjustable cap that switches between an open mode (bolts reachable for re-tightening) and a concealed mode. 1.5mm G300 Z275 galvanised steel; 2 x M12 bolts through the saddle, and either 1 x M12 concrete bolt with the supplied washers or 2 x M12 concrete bolts in the base. VUETRADE's brochure describes them as suited to temporary and short-life projects, and the BLACKOUT version as suited to lower duty applications. Galvanised or BLACKOUT, Australian made.
Features
- Open or concealed mode via the adjustable cap
- Base: 1 x M12 concrete bolt with the supplied small and large washers, or 2 x M12 concrete bolts (VUETRADE)
- Saddle: 2 x M12 bolts or VUEBOLTs tightly fastened with nuts
- VUETRADE uplift design capacity: JD3 10.3, JD4 8.3, JD5 7.2 kN, with 2 x M12 saddle bolts and a post at least 90 x 90mm sitting flat on the base; assumes enough anchorage in the concrete
- Suits 90mm posts
- 1.5mm G300 Z275 galvanised steel; BLACKOUT is black powder coat over the same steel
- Light duty: VUETRADE's brochure lists them for temporary and short-life projects
- Australian made
- Exposure (VUETRADE area chart): galvanised suits enclosed work and inland exterior work kept clear of fresh water, frequent wetting and drying and pool splash. This product is galvanised only, so it does not suit marine sites (within 1km of a sheltered coast or 10km of surf) or those wet locations
Applications
- Light-duty and temporary post fixing
- Decks, pergolas or verandahs: use a support sized to VUETRADE's uplift data or your engineer's design. VUETRADE: post supports give no lateral stability, so brace posts to a structural engineer's design
Tradies Bolt Down Post Supports: sizes and finishes we supply
2 lines by finish. Pick one above for its product code and pack sizes.
| Finish | Post size (square) | Lines |
|---|---|---|
| Galvanised | 90mm | 1 |
| BLACKOUT | 90mm | 1 |
