316 Stainless · BLACKOUT
T-Blade Post Support Caps
About the T-Blade Post Support Caps

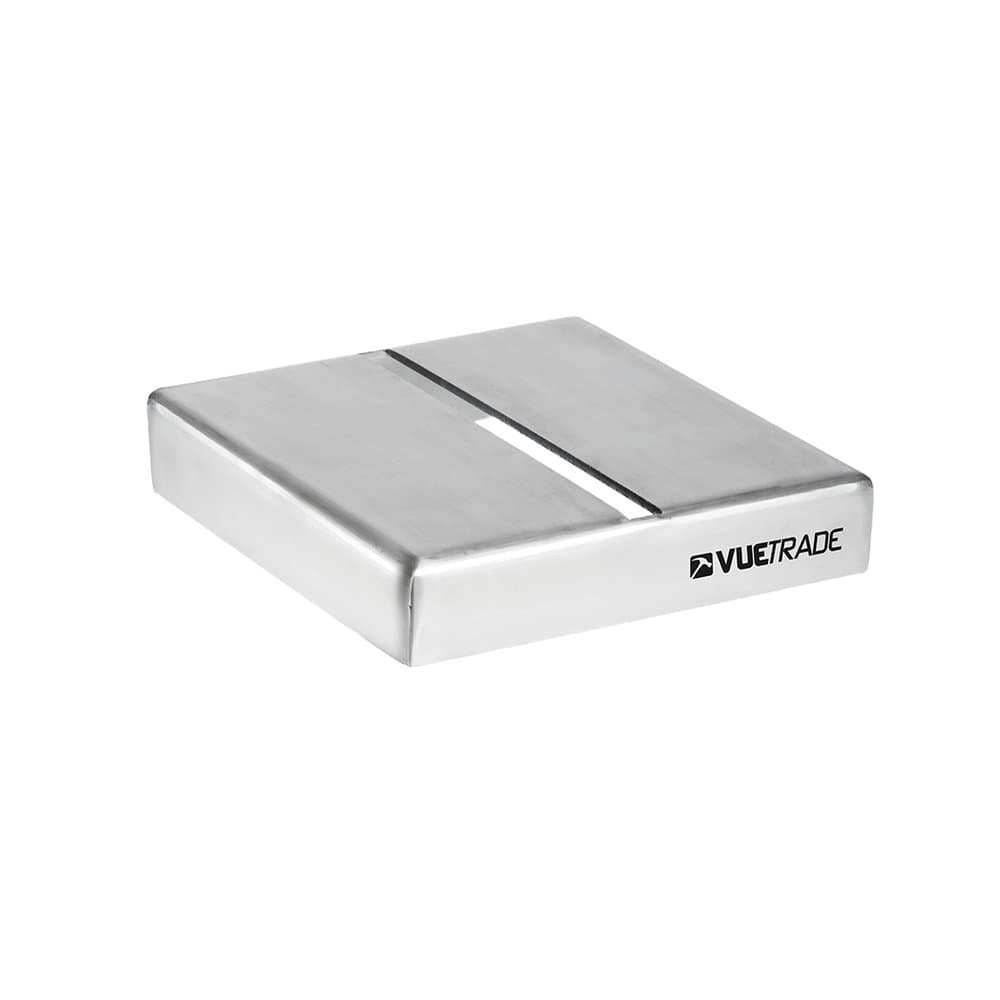

Concealing caps for VUETRADE bolt down T-Blade post supports: the cap covers the base plate and its bolts for a neat finish on feature posts. 3.0mm 316 stainless, or BLACKOUT black powder coated 316, 30mm high, with one cap size for each T-Blade base. Each cap is 10mm wider than its base and does not touch the support or its bolts, so VUETRADE says it suits any grade of T-Blade. The cap is non-structural. Order: bolt the T-Blade down, slide the cap over the blade, then fit the post; the cap cannot be fitted once the post is on (VUETRADE).

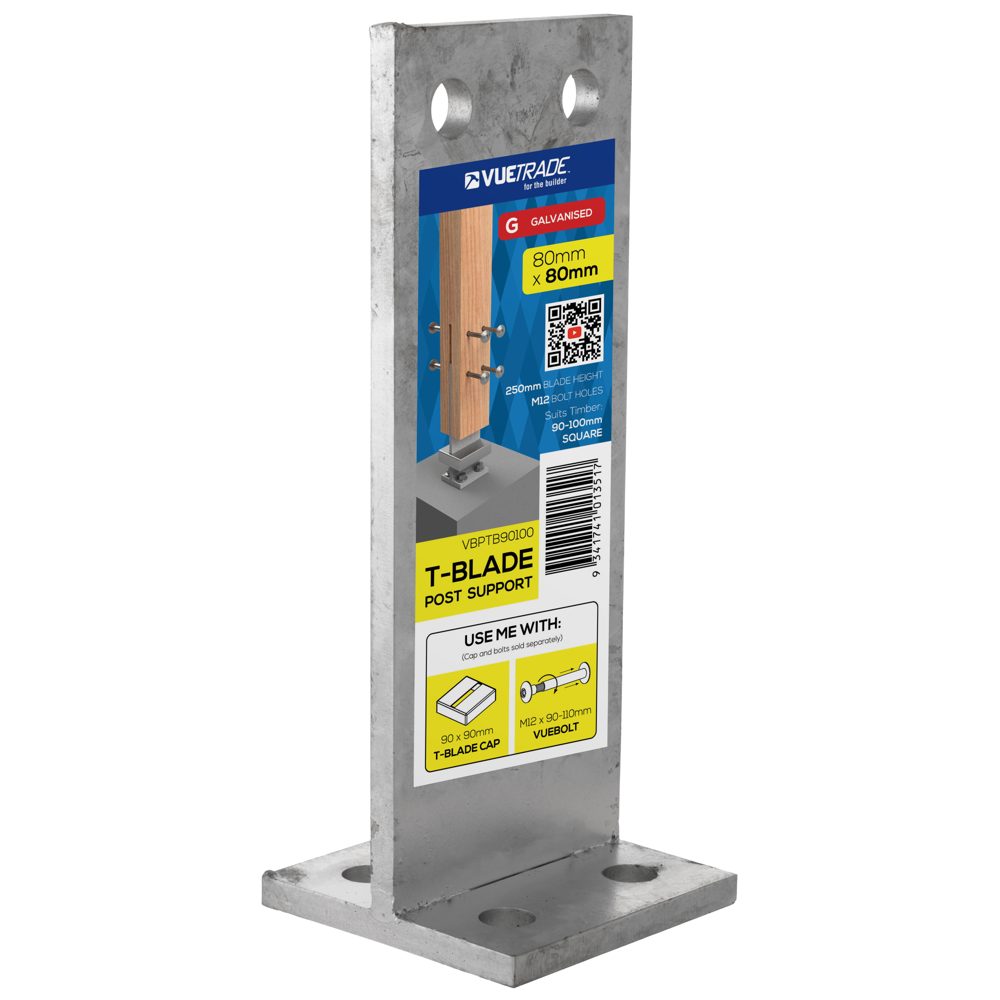

- The T-Blades these caps fit: T-Blade post supports.
Features
- Covers the T-Blade base plate and bolts; non-structural
- One cap per T-Blade base size (cap code = T-Blade code + CAP), 10mm wider than the base, 30mm high
- 3.0mm 316 stainless, which VUETRADE describes as suitable for coastal or high corrosion environments; the T-Blade under it sets the overall rating
- BLACKOUT caps (316 with black powder coat) for the 90 to 190mm sizes
- Install order (VUETRADE): bolt the T-Blade down, slide the cap over the blade, then fit the post; the cap cannot be fitted once the post is on
- Cartons of 6 (90 and 120mm), 4 (150mm), 2 (190mm) and single 250mm caps (VUETRADE box quantities)
Applications
- Feature posts on bolt down T-Blade supports
- Hiding the base bolts on entry and feature posts
T-Blade Post Support Caps: sizes and finishes we supply
9 lines by finish. Pick one above for its product code and pack sizes.
| Finish | Cap size (suits T-Blade) | Lines |
|---|---|---|
| 316 Stainless | 90 x 90mm (VBPTB90100), 120 x 120mm (VBPTB115140), 150 x 150mm (VBPTB150180), 190 x 190mm (VBPTB180200), 250 x 250mm (VBPTB250350) | 5 |
| BLACKOUT | 90 x 90mm (VBPTB90100), 120 x 120mm (VBPTB115140), 150 x 150mm (VBPTB150180), 190 x 190mm (VBPTB180200) | 4 |
Need them in bulk?
Add the sizes you need to your quote, or send us your list and we’ll price the lot and supply it with the rest of your order. Allmat supplies T-Blade Post Support Caps across Adelaide and South Australia. Order ahead on 1300 03 03 63.
Browse all bolt-down post supports
