Heavy Duty U-Cup Post Supports
About the Heavy Duty U-Cup Post Supports

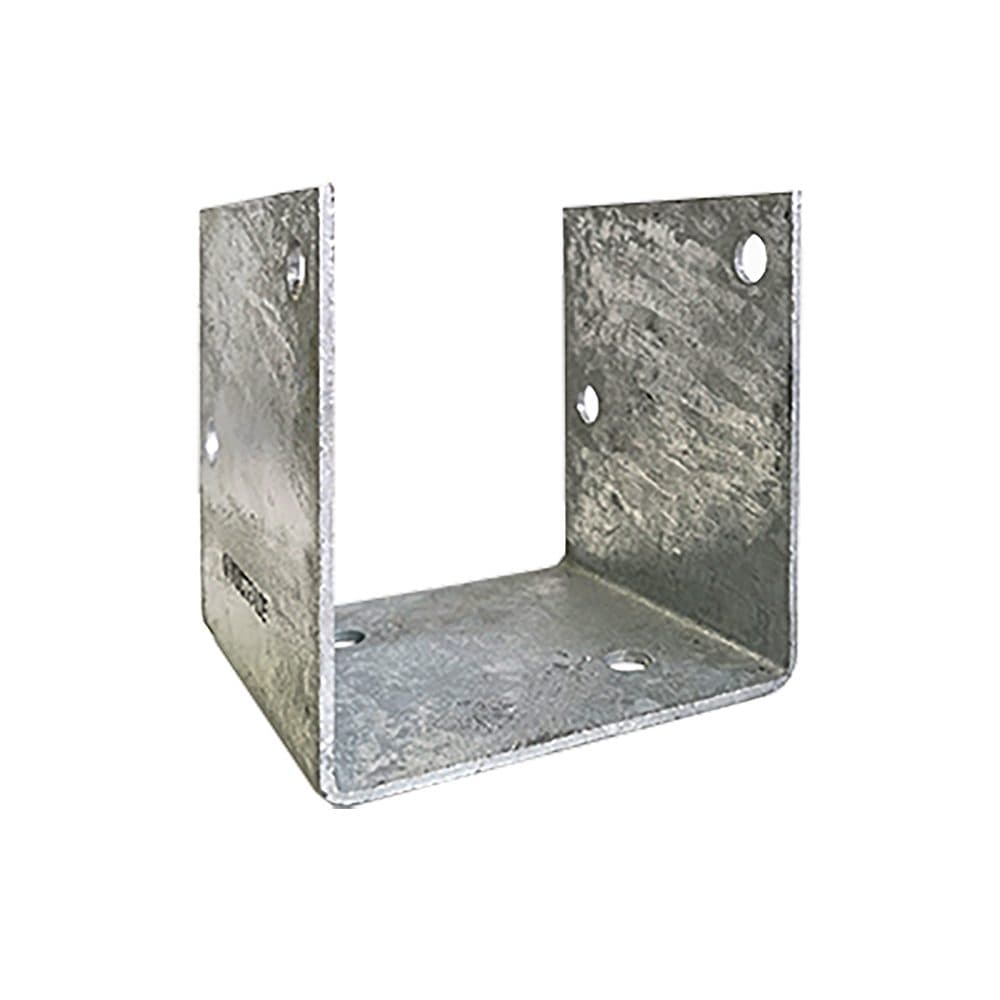

VUETRADE Heavy Duty U-Cup Bolt Down Post Supports are 4.0mm galvanised U cups for bolting timber posts down, designed for deep timber placement, in seven sizes for 75 to 150mm square posts. VUETRADE lists them for existing timber decking or concrete bases, but rates the base fixing only with 2 x M12 concrete bolts: fixing to a timber deck needs your engineer's design. Cartons of 10.
- Comparing post stirrups and post supports in general? See our post support guide.
Features
- Deep U cup for deep timber placement
- 4.0mm steel, hot dip galvanised
- Post sizes 75 to 150mm square
- Rated fixing (VUETRADE): 2 x M12 bolts or VUEBOLTs through the cup tightly fastened with nuts; 2 x M12 concrete bolts in the base; galvanised bolts only
- VUETRADE uplift design capacity: J3 15.0, J4 13.4, J5 11.6, JD3 15.0, JD4 15.0, JD5 14.7 kN, with that fixing and a post at least 90 x 90mm sitting flat in the cup; footings by others
- Capacities are VUETRADE's wind uplift (vertical) design capacities and assume enough anchorage in the concrete
- Cartons of 10 (VUETRADE box quantity)
- Exposure (VUETRADE area chart): galvanised suits enclosed work and inland exterior work kept clear of fresh water, frequent wetting and drying and pool splash. This product is galvanised only, so it does not suit marine sites (within 1km of a sheltered coast or 10km of surf) or those wet locations
Applications
- Bolting timber posts to concrete bases
- Existing timber decking: VUETRADE publishes no fixing or capacity for a timber deck base, so fix to your engineer's design
- Decks, pergolas and roofed structures: to VUETRADE's technical data (uplift, and dead load where listed, with its fixing conditions) or your engineer's design. VUETRADE: post supports give no lateral stability, so brace the posts to a structural engineer's design; footing embedment and concrete anchor bolts are set by your engineer
Heavy Duty U-Cup Post Supports: sizes and finishes we supply
7 lines by finish. Pick one above for its product code and pack sizes.
| Finish | Post size (square) | Lines |
|---|---|---|
| Galvanised | 75mm, 90mm, 100mm, 115mm, 125mm, 140mm, 150mm | 7 |
Need them in bulk?
Add the sizes you need to your quote, or send us your list and we’ll price the lot and supply it with the rest of your order. Allmat supplies Heavy Duty U-Cup Post Supports across Adelaide and South Australia. Order ahead on 1300 03 03 63.
