Bolt Down Post Supports
About the Bolt Down Post Supports

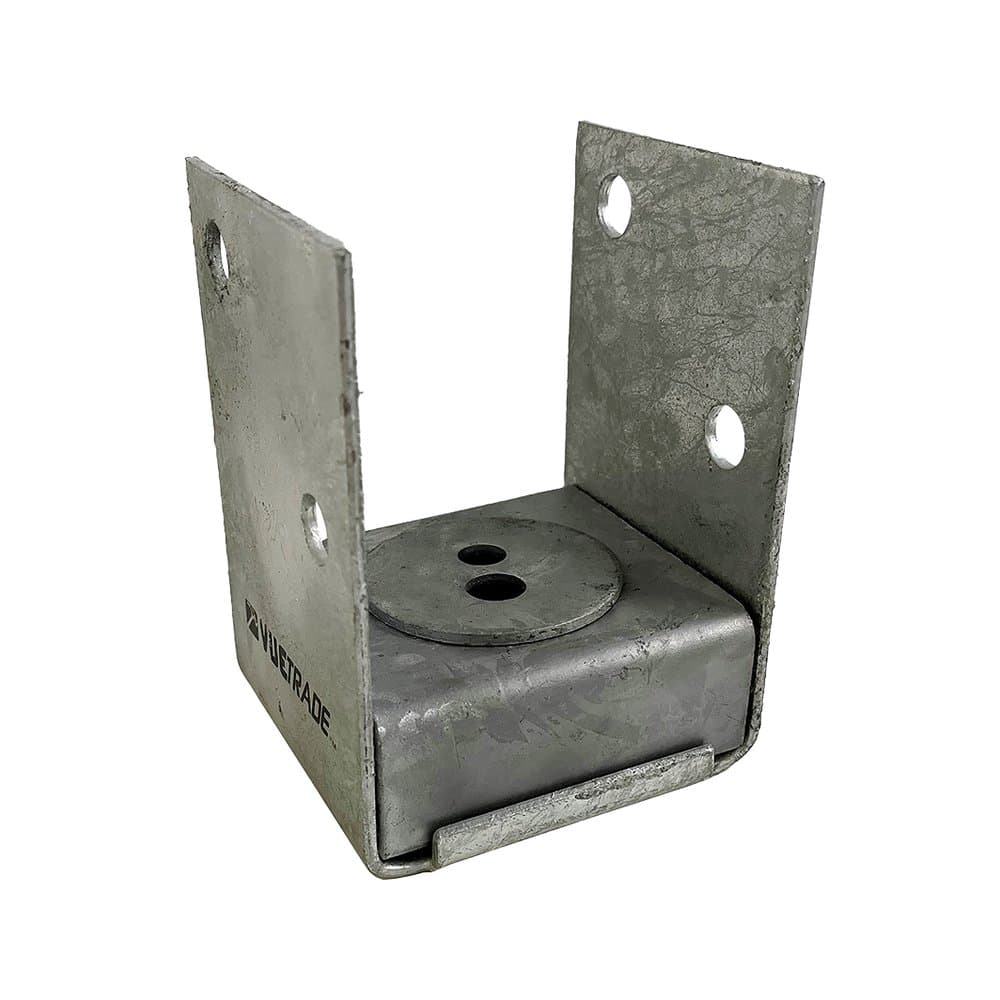

VUETRADE Bolt Down Post Supports are U saddles for bolting timber posts down to a concrete base, with a supplied cap that covers the anchoring bolts. 2 x M12 bolts through the saddle; 2 or 4 x M12 concrete bolts in the base (4 on 125mm and larger). Galvanised 3.0mm (90 and 100mm) or 4.0mm (115 and 125mm); 304 stainless 1.5mm (90mm), 3.0mm (100mm) or 4.0mm (115mm and up); the 90mm sizes come with a washer for VUETRADE's single-bolt alternative fixing. Galvanised 90 to 125mm, 304 stainless 90 to 200mm, 316 stainless 90mm and BLACKOUT 100mm.
- Comparing post stirrups and post supports in general? See our post support guide.
Features
- U saddle with a supplied cap that covers the anchoring bolts
- Saddle: 2 x M12 bolts or VUEBOLTs tightly fastened with nuts
- Base: 2 or 4 x M12 concrete bolts (4 on 125mm and larger); 90mm: or 1 x M12 concrete bolt with the supplied washer, VUETRADE's alternative for more adjustment
- Galvanised 3.0mm (90 and 100mm) or 4.0mm (115 and 125mm); stainless 1.5mm (90mm), 3.0mm (100mm) or 4.0mm (115mm and up)
- VUETRADE uplift design capacity: J3 9.4, J4 7.5, J5 6.5, JD3 11.8, JD4 9.4, JD5 8.2 kN (galvanised, and stainless 100mm and up); stainless 90mm JD3 10.3, JD4 8.3, JD5 7.2 kN; posts at least 90 x 90mm (100 x 100mm on stainless 100mm and up)
- Capacities are VUETRADE's wind uplift (vertical) design capacities and assume enough anchorage in the concrete
- Post sizes 90 to 200mm square
- BLACKOUT is black powder coat over hot dip galvanised steel: same exposure limits as galvanised (VUETRADE)
- Exposure (VUETRADE area chart): galvanised for enclosed work and for inland exterior work kept clear of fresh water and frequent wetting and drying; 304 stainless for marine sites (100m to 1km from a sheltered coast, 1 to 10km from surf) and for fresh-water contact or frequent wetting and drying; within 100m of a sheltered coast or 1km of breaking surf VUETRADE specifies 316 (the 90mm 316 is listed here; other 316 sizes by special order). Around pools VUETRADE recommends stainless brackets for saltwater pools, and for freshwater pools where the brackets are splashed often
- Fix stainless brackets with stainless fixings, and check local rules on stainless connectors (VUETRADE)
Applications
- Bolting timber posts down to concrete slabs and footings
- Posts on an existing slab
- Decks, pergolas and roofed structures: to VUETRADE's technical data (uplift, and dead load where listed, with its fixing conditions) or your engineer's design. VUETRADE: post supports give no lateral stability, so brace the posts to a structural engineer's design; footing embedment and concrete anchor bolts are set by your engineer
Bolt Down Post Supports: sizes and finishes we supply
12 lines by finish. Pick one above for its product code and pack sizes.
| Finish | Post size (square) | Lines |
|---|---|---|
| 304 Stainless | 90mm, 100mm, 115mm, 125mm, 135mm, 200mm | 6 |
| Galvanised | 90mm, 100mm, 115mm, 125mm | 4 |
| 316 Stainless | 90mm | 1 |
| BLACKOUT | 100mm | 1 |
Need them in bulk?
Add the sizes you need to your quote, or send us your list and we’ll price the lot and supply it with the rest of your order. Allmat supplies Bolt Down Post Supports across Adelaide and South Australia. Order ahead on 1300 03 03 63.
Browse all bolt-down post supports
