VUEBOLT Concealed Thread Bolts
About the VUEBOLT Concealed Thread Bolts

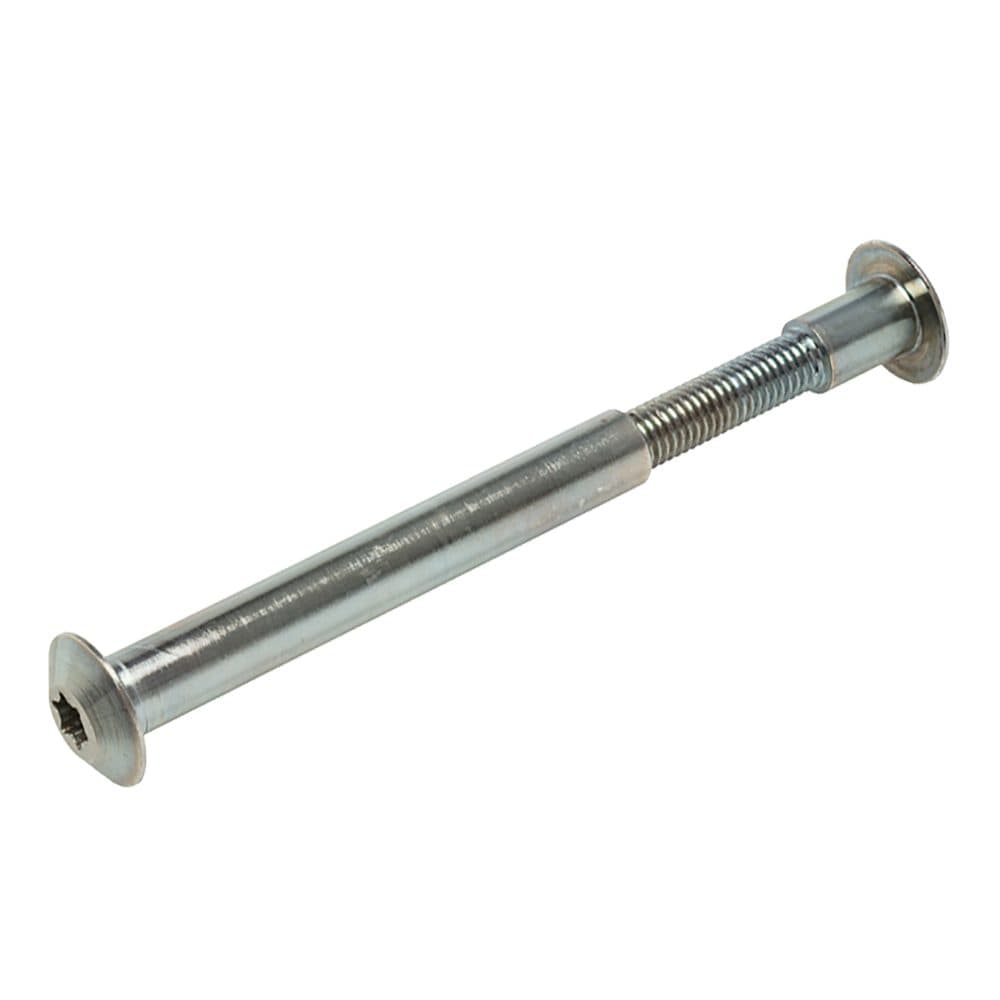

VUEBOLT post support bolts are concealed thread bolts, a male and a female bolt that meet inside the joint, for fixing post supports with a neat, concealed finish. T50 star drive heads. M10 to M20 shafts for working widths from 90 to 360mm: each bolt must be used within its working width, the total thickness it passes through. Zinc-nickel coated, 316 stainless, or BLACKOUT (zinc-nickel with black powder coated dome heads). Drill the bolt holes fully through the post (VUETRADE).
- Wrench to suit: VUEBOLT T50 star drive wrench.
Features
- Male and female bolt: no exposed thread
- T50 star drive heads; tighten with two T50 wrenches
- Working widths 90 to 110, 110 to 150, 150 to 230 and 230 to 360mm: VUETRADE says each bolt MUST be used within its range so enough thread engages
- Fit the female bolt on the thickest member of the joint (VUETRADE)
- Zinc-nickel coated, 316 stainless or BLACKOUT (zinc-nickel, black powder coated dome heads)
- Corrosion protection to AS 1684.2 and AS 1684.3 (VUETRADE)
- Use the 316 VUEBOLT with stainless post supports, and VUETRADE recommends stainless with green hardwood
- Drill bolt holes fully through the post
- Cards of 2 (M20 card of 1)
Applications
- Bladed supports (VUETRADE buyers guide): M12 x 90 to 110 for 90 to 100mm posts; M16 x 110 to 150 for 115 to 140mm; M16 x 150 to 230 for 150 to 230mm; M20 x 230 to 360 for 250 to 350mm (the 180 to 250mm T-Blade takes M16, so posts over 230mm on it need standard M16 bolts)
- Saddled supports (full and half stirrups, bolt downs, U-cups, cyclonic): M12, 90 to 110 or 110 to 150mm to suit the total joint thickness
- Galvanised centre blade supports have M10 holes: M10 x 90 to 110
- Pin shaft and adjustable post supports: no suitable VUEBOLT (VUETRADE)
- Feature posts where no bolt ends should show
VUEBOLT Concealed Thread Bolts: sizes and finishes we supply
15 lines by finish. Pick one above for its product code and pack sizes.
| Finish | Shaft | Working width | Lines |
|---|---|---|---|
| Zinc-nickel | M10, M12, M16, M20 | 90-110mm, 110-150mm, 150-230mm, 230-360mm | 6 |
| 316 Stainless | M10, M12, M16, M20 | 90-110mm, 110-150mm, 150-230mm, 230-360mm | 6 |
| BLACKOUT | M12, M16 | 90-110mm, 110-150mm, 150-230mm | 3 |
More vuebolts
Need them in bulk?
Add the sizes you need to your quote, or send us your list and we’ll price the lot and supply it with the rest of your order. Allmat supplies VUEBOLT Concealed Thread Bolts across Adelaide and South Australia. Order ahead on 1300 03 03 63.
Browse all vuebolts
