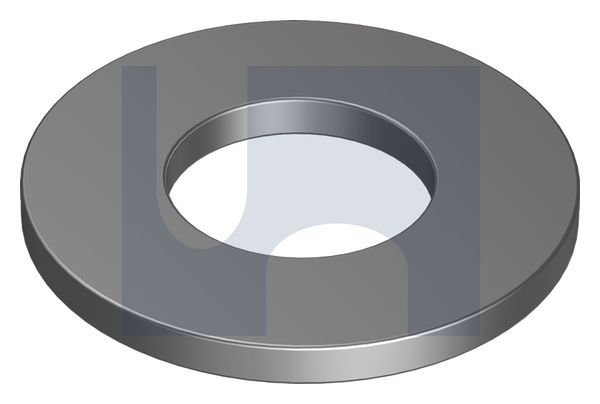

Flat Washer
Flat round washers that spread load and protect the surface under a bolt or nut, metric and imperial, steel and stainless.
About the Flat Washer
Flat washers sit under a bolt head or nut to spread the load and stop the nut scouring the surface, on timber framing, fencing, steelwork and machinery repairs. They come in mild steel (zinc plated, plain, hot dip galvanised, zinc yellow or black), 304 and 316 stainless (DIN 125A, DIN 433 and Hobson sizes), Bumax high strength stainless, brass, and natural or UV stable black nylon including shoulder washers, plus hardened AS 1237 and Sampson ASTM F436 washers, from M2 to M100 and 3/32 to 3 inch. Choose the material, size and finish above; the guide below covers how washers are sized and which material to use.
Also called flat round washers or plain washers.
Features
- Spreads clamp load, protects the surface
- Standard and hardened
- Metric and imperial sizes
- Zinc-plated, galvanised and stainless
Applications
- Under bolt heads and nuts on timber and steel
- Fencing, decks and pergolas
- Machinery and trailer repairs
- Electrical insulation and dissimilar metals (nylon)
What flat washers do
Hobson describes a standard washer as a thin plate, normally round, with a hole in the centre, used for two main reasons:
- To stop the nut scouring or scratching the surface it bears on as it is turned.
- To increase the bearing surface of the bolt or nut, spreading the load of the fastener over a larger area so the surface does not deform.
Which flat washer: steel, stainless, nylon, brass or hardened?
- Zinc plated mild steel: the everyday washer for indoor and non-corrosive conditions.
- Hot dip galvanised mild steel: for long term outdoor work, with galvanised bolts and nuts.
- Zinc yellow passivate (DIN 125A) and zinc black passivate: zinc yellow has more corrosion resistance than clear zinc plating; Hobson lists black zinc washers for exposed suspended services, automotive, forklifts, electronics, furniture and lighting, where they match the colour of the equipment.
- Stainless steel washers: 304 for general corrosion resistance and 316 near the sea, in Hobson's own sizes, DIN 125A, and DIN 433 (a smaller outside diameter than DIN 125A, designed for use with cheese head screws). Bumax 88 and Bumax 109 are high strength stainless: Hobson's Bumax data sheet says their strength properties correspond to 8.8 and 10.9 carbon steel fasteners respectively.
- Nylon washers: a barrier between dissimilar metals, electrical insulation between conductive parts, protection for a bearing surface, and absorbing shocks and vibration. Black nylon has carbon black added for UV and outdoor weathering.
- Nylon shoulder washers (top hat washers): a washer with a sleeve that sits in the hole, where the fastener has to be insulated from the base material.
- Brass washers: in metric and imperial sizes; Hobson's brass washer sheet lists both to AS 1237.
- Hardened washers: Sampson ASTM F436 and F436M washers for high tensile bolts, AS 1237 hardened galvanised washers, and 300 HV zinc flake washers that Hobson lists for property class 10.9 bolts.
- Nord-Lock wedge-locking washers: listed with their sizes on our safety washer page (linked at the foot of this page).
Washer sizes explained: M8, M10, M12 and imperial
A metric washer is named for the bolt it fits: an M10 washer goes on an M10 (10mm) bolt, an M8 washer on an M8 bolt and an M12 washer on an M12 bolt. Its outside diameter (OD) and thickness then vary with the range: for example our zinc plated M10 is 22.5 x 2mm, while the 316 stainless DIN 125A M10 is 20 x 2mm. Pick a bigger OD to spread the load further, or a mudguard washer for a much larger one.
Imperial washers are named by bolt diameter in inches, then OD in inches and thickness as a gauge number, so 3/8 x 3/4 x 16g is a washer for a 3/8 inch bolt, 3/4 inch across and 16 gauge thick. Hobson's washer gauge chart converts the gauges used in our range (a 15g washer in our range is not on the chart):
- 8g: 3.988mm
- 10g: 3.175mm
- 12g: 2.517mm
- 14g: 1.994mm
- 16g: 1.588mm
- 18g: 1.257mm
- 19g: 1.067mm
- 20g: 0.889mm
- 21g: 0.813mm
- 22g: 0.737mm
Common flat washer sizes: M5 to M24
The everyday metric sizes side by side. Select a size to open it in the selector, then pick the range. Sizes below M5 and above M24, and the other ranges, are listed in the next table and in the selector.
OD x thickness in mm from our product data. 304 stainless is Hobson's own sizes. A blank cell means we do not carry that size in that range. Tap a number to show it in the selector above.
| Size | Zinc plated | Hot dip galvanised | 304 stainless | 316 stainless DIN 125A |
|---|---|---|---|---|
| M5 | 10 x 1 | 10 x 0.8 | 10 x 1 | |
| M6 | 16 x 1.4 | 16 x 1.4 | 12 x 1.2 | 12 x 1.6 |
| M8 | 19 x 1.6 | 19 x 1.6 | 16 x 1.2 | 16 x 1.6 |
| M10 | 22.5 x 2 | 22.5 x 2 | 20 x 1.2 | 20 x 2 |
| M12 | 27.5 x 2.25 | 27.5 x 2.25 | 24 x 1.5 | 24 x 2.5 |
| M16 | 33.5 x 2.75 | 33.5 x 2.75 | 30 x 1.5 | 30 x 3 |
| M20 | 38 x 3 | 38 x 3 | 37 x 2 | 37 x 3 |
| M24 | 52 x 4 | 52 x 4 | 44 x 3 | 44 x 4 |
Every metric steel, stainless, brass and hardened washer range
One row per range we carry, with its sizes. Select a range to open it in the selector, then pick the size. Nylon washers have their own table below.
Hardened washers are through-hardened steel for high tensile bolting. From Hobson's sheets: the zinc plated HEC F436M Sampson washers suit high strength metric fasteners up to class 10.9 and ASTM A354 and F3125 fasteners; the zinc flake F436M Sampson washers suit bolts and set screws up to property class 10.9; the zinc flake ISO 7089 300 HV washers are for property class 10.9 bolts; and the weathering steel F436M washers are for weathering steel work.
Metric flat washer ranges, by material. Sizes are the bolt sizes we carry in each range. Min. order is the minimum order quantity across the range; Bumax washers are sold singly. Tap a number to show it in the selector above.
| Range | Material | Sizes | Min. order |
|---|---|---|---|
| Mild steel | |||
| Zinc plated: Hobson sizes, AS 1237 engineers washers and an M20 panel washer | Mild steel | M2 to M30 (13 sizes) | 25 to 500 |
| Zinc yellow passivate, DIN 125A | Mild steel | M6 to M20 (6 sizes) | 150 to 500 |
| Zinc black passivate | Mild steel | M3 to M8 (5 sizes) | 200 |
| Plain (uncoated) | Mild steel | M6 to M72 (20 sizes) | 10 to 500 |
| Hot dip galvanised | Mild steel | M6 to M72 (20 sizes) | 10 to 500 |
| Stainless steel | |||
| 304: Hobson sizes and DIN 125A | Stainless steel | M3 to M30 (14 sizes) | 20 to 2,000 |
| 316: Hobson sizes, DIN 125A and DIN 433 | Stainless steel | M2 to M48 (22 sizes) | 10 to 200 |
| Bumax 88 | Stainless steel | M5 to M36 (11 sizes) | 1 |
| Bumax 88, Geomet coated | Stainless steel | M20 | 1 |
| Bumax 109 | Stainless steel | M4 to M24 (9 sizes) | 1 |
| Brass | |||
| Brass (AS 1237) | Brass | M3 to M24 (10 sizes) | 100 to 200 |
| Hardened steel | |||
| Hot dip galvanised, AS 1237, 35 to 41 HRC | Hardened steel | M6 to M100 (22 sizes) | 10 to 250 |
| Zinc flake silver, ISO 7089, 300 HV | Hardened steel | M5 to M24 (8 sizes) | 50 to 200 |
| Sampson zinc plated, HEC F436M, 38 to 45 HRC | Hardened steel | M5 to M36 (12 sizes) | 10 to 200 |
| Sampson plain, 38 to 45 HRC | Hardened steel | M8 to M100 (19 sizes) | 5 to 200 |
| Sampson ASTM F436M, zinc flake silver | Hardened steel | M20, M24, M30, M36 | 25 to 100 |
| Sampson ASTM F436M, weathering steel | Hardened steel | M24, M30, M36 | 10 to 50 |
Nylon washer sizes (metric)
Nylon washers come in many ODs and thicknesses for each bolt size, so check both against the job. One row per bolt size; select a size to open it in the selector and pick the OD and thickness there.
Metric nylon flat washers, OD x thickness in mm from our product data. A blank cell means we do not carry that size in black. Tap a number to show it in the selector above.
| Size | Natural nylon (OD x thickness) | Black UV stable nylon | Min. order |
|---|---|---|---|
| M2 | 5 x 0.3, 5 x 0.8 | 200 | |
| M2.5 | 5.6 x 0.8, 6 x 0.5, 6 x 0.6, 6.5 x 0.5 | 200 | |
| M3 | 7 x 0.5, 8 x 0.8 | 200 | |
| M3.5 | 8 x 0.5, 8 x 0.8 | 200 | |
| M4 | 7 x 0.8, 9 x 0.8, 12 x 1.2, 16 x 1.5 | 9 x 0.8 | 200 |
| M5 | 8 x 0.8, 9 x 1, 10 x 1, 11.2 x 0.8, 11.2 x 1, 15 x 1.5 | 10 x 1 | 200 |
| M6 | 10 x 1.6, 11 x 1.5, 12 x 1, 12 x 1.5, 12.5 x 1.6, 14 x 0.8, 14 x 1, 14 x 1.2, 14 x 1.6, 32 x 1.6 | 12 x 1.5 | 200 |
| M7 | 14 x 1.6 | 200 | |
| M8 | 16 x 1, 16 x 1.6, 17 x 1, 17 x 1.6, 17 x 2, 18 x 1.6, 18 x 2, 21 x 2, 25 x 2, plus a DIN 125 washer (size not in our data) | 16 x 1.6 | 200 |
| M10 | 20 x 2, 20 x 2.5, 21 x 1, 21 x 1.5, 21 x 2, 22 x 2, 22 x 2.5, 24 x 2, 32 x 1.6, 50 x 3, plus a holding washer (size not in our data) | 20 x 2 | 100 |
| M12 | 24 x 2, 24 x 2.5, 25 x 1.5, 40 x 3 | 24 x 2.5 | 100 |
| M14 | 28 x 2.5, 30 x 3, 44 x 3 | 100 | |
| M16 | 30 x 2, 30 x 3 | 30 x 3 | 100 |
| M18 | 34 x 3 | 100 | |
| M20 | 37 x 3, 39 x 3, 60 x 4 | 100 | |
| M22 | 39 x 3, 39 x 4 | 50 | |
| M24 | 44 x 4, 50 x 4, 72 x 5 | 50 | |
| M27 | 50 x 4 | 50 | |
| M30 | 56 x 4 | 50 | |
| M33 | 60 x 5, 66 x 5 | 50 | |
| M36 | 66 x 5 | 50 | |
| M39 | 72 x 5 | 50 | |
| M42 | 72 x 6 | 50 |
Nylon shoulder washers (top hat washers)
A shoulder washer has a flat washer face with a sleeve (the shoulder) that sits inside the hole, so the bolt does not touch the base material. Hobson lists the black UV stable shoulder washers for outdoor use where the fastener must be insulated from the base material. The size is the bolt; the heights are the overall height H of the washer.
Nylon shoulder washers, one row per bolt size, heights H in mm from our product data, smallest to largest. Selecting a size opens its shortest shoulder washer; pick the height in the selector. A blank cell means we do not carry that size in black. Tap a number to show it in the selector above.
Imperial flat washer sizes
Imperial zinc plated, stainless, brass and nylon washers, one row per bolt size. For the metal washers the OD is in inches and the thickness is a gauge (see the gauge chart above); nylon thickness is in inches. We also carry a 1/4 inch Bumax 88 washer.
Hobson's brass washer sheet gives the imperial brass thicknesses in mm, and a few differ from the gauges in our product data: 1/4 x 9/16 is 1.1mm on the sheet against 19g, 3/8 x 3/4 is 1.5mm against 16g, and 3/8 x 7/8 is 1.1mm against 18g.
OD x thickness from our product data: gauge for the metal washers, inches for nylon, and mm where our data gives mm (one 316 washer). A blank cell means we do not carry that size in that material. Tap a number to show it in the selector above.
| Bolt size | Zinc plated | 304 stainless | 316 stainless | Brass (AS 1237) | Nylon |
|---|---|---|---|---|---|
| 3/32 inch | 1/4 x 22g | ||||
| 1/8 inch | 5/16 x 22g, 3/8 x 20g, 5/8 x 18g | 5/16 x 22g, 3/8 x 20g | 5/16 x 21g, 3/8 x 21g | 7/16 x 1/32 | |
| 5/32 inch | 3/8 x 20g, 7/16 x 20g, 5/8 x 16g | 3/8 x 20g, 7/16 x 20g | 3/8 x 21g, 7/16 x 21g | 3/8 x 1/32 | |
| #8 | 3/8 x 1/32 | ||||
| 3/16 inch | 7/16 x 20g, 1/2 x 16g, 1/2 x 20g, 5/8 x 16g, 5/8 x 18g | 7/16 x 20g, 1/2 x 20g, 3/4 x 18g, 7/8 x 18g, 1 x 16g, 1-1/4 x 16g | 7/16 x 20g, 1/2 x 20g, 3/4 x 18g, 7/8 x 18g, 1 x 16g, 1-1/4 x 16g | 7/16 x 21g, 1/2 x 21g | 7/16 x 1/32, 1/2 x 1/32 |
| #10 | 3/8 x 1/32 | ||||
| 1/4 inch | 1/2 x 16g, 1/2 x 18g, 9/16 x 18g, 5/8 x 18g, 7/8 x 18g, 1-1/2 x 16g | 1/2 x 20g, 9/16 x 18g, 5/8 x 18g, 3/4 x 18g, 1 x 16g, 1-1/4 x 16g | 1/2 x 20g, 9/16 x 18g, 5/8 x 18g, 3/4 x 18g, 7/8 x 18g, 1 x 16g, 1-1/4 x 16g | 1/2 x 21g, 9/16 x 19g, 5/8 x 19g | 1/2 x 1/32, 5/8 x 1/16, 3/4 x 1/16 |
| 5/16 inch | 1/2 x 18g, 5/8 x 18g, 3/4 x 18g, 7/8 x 16g, 7/8 x 18g | 5/8 x 18g, 3/4 x 18g, 1 x 16g, 1-1/4 x 16g | 5/8 x 18g, 3/4 x 18g, 1 x 16g, 1-1/4 x 16g | 5/8 x 18g, 3/4 x 18g | 5/8 x 1/16 |
| 3/8 inch | 5/8 x 18g, 3/4 x 16g, 3/4 x 18g, 7/8 x 16g, 7/8 x 18g, 1-7/8 x 14g | 3/4 x 18g, 1 x 16g, 1-1/4 x 16g, 1-1/2 x 14g | 3/4 x 18g, 7/8 x 18g, 1 x 16g, 1-1/4 x 16g, 1-1/2 x 14g, 2 x 3mm | 3/4 x 16g, 7/8 x 18g | 5/8 x 1/16, 3/4 x 1/16 |
| 7/16 inch | 7/8 x 16g, 1 x 16g | 1-1/8 x 16g | |||
| 1/2 inch | 1 x 16g, 1-1/8 x 16g, 1-7/8 x 14g | 1 x 16g, 1-1/4 x 14g, 2 x 14g | 1 x 16g, 1-1/4 x 14g, 2 x 14g | 3/4 x 1/16, 1 x 1/16 | |
| 9/16 inch | 1-1/8 x 16g | 1-1/4 x 14g | |||
| 5/8 inch | 1-1/4 x 15g, 1-3/8 x 15g | 1-1/4 x 16g, 1-1/2 x 14g | 1-1/4 x 16g, 1-1/2 x 14g | 1-1/4 x 3/32 | |
| 3/4 inch | 1-1/2 x 14g | 1-1/2 x 14g, 1-7/8 x 12g | 1-1/2 x 14g, 1-7/8 x 12g | 1-1/2 x 3/32 | |
| 7/8 inch | 1-5/8 x 14g | 1-5/8 x 14g, 2 x 10g | 1-5/8 x 14g, 2 x 10g | ||
| 1 inch | 1-7/8 x 14g, 2-1/8 x 14g | 1-7/8 x 12g, 2 x 10g, 2-1/2 x 10g | 1-7/8 x 14g, 2-1/2 x 10g | 1-1/2 x 5/64, 1-7/8 x 1/8 | |
| 1-1/8 inch | 2-1/8 x 14g | 2-1/2 x 10g | |||
| 1-1/4 inch | 2-3/4 x 10g | ||||
| 1-3/8 inch | 3 x 10g | ||||
| 1-1/2 inch | 3-1/4 x 10g | ||||
| 2 inch | 4 x 8g |
Sampson hardened washers (imperial)
Sampson ASTM F436 washers are hardened: Hobson lists the plain ones for bolts and set screws up to grade 8, the zinc plated for grade 8, the hot dip galvanised for grade 5 and above and HDG imperial stud bolts, and the zinc plated and Xylan green for stud bolts in the oil and gas industries.
OD x thickness in mm from Hobson's data sheet for the plain Sampson washer. The zinc plated, galvanised and Xylan green sheets give different dimensions at some sizes (for example 1/2 inch: 27.8 x 3.5mm plain, 27.8 x 2.5mm zinc plated, 27.8 x 2.5 to 4.5mm galvanised, 27 x 3.5mm Xylan green), and Hobson publishes no sheet dimensions here for the zinc yellow and Xylan blue washers, so check the selector for the finish you choose. Min. order is the minimum order quantity for that size. Tap a number to show it in the selector above.
| Bolt size | OD x thickness, plain (mm) | Finishes we carry | Min. order |
|---|---|---|---|
| 1/4 inch | 16.7 x 1.7 | plain, zinc yellow passivate | 200 |
| 5/16 inch | 18.3 x 1.7 | plain, zinc yellow passivate | 200 |
| 3/8 inch | 21.5 x 1.7 | plain, zinc plated, zinc yellow passivate, Xylan blue | 200 |
| 7/16 inch | 24.2 x 1.7 | plain, zinc plated, zinc yellow passivate | 200 |
| 1/2 inch | 27.8 x 3.5 | plain, zinc plated, hot dip galvanised, zinc yellow passivate, Xylan blue, zinc plated and Xylan green | 200 |
| 9/16 inch | 30.9 x 3.7 | plain, zinc yellow passivate | 100 |
| 5/8 inch | 34.2 x 3.8 | plain, zinc plated, hot dip galvanised, zinc yellow passivate, Xylan blue, zinc plated and Xylan green | 100 |
| 3/4 inch | 38.1 x 3.8 | plain, zinc plated, hot dip galvanised, zinc yellow passivate, Xylan blue, zinc plated and Xylan green | 50 |
| 7/8 inch | 45.3 x 4 | plain, zinc plated, hot dip galvanised, zinc yellow passivate, Xylan blue, zinc plated and Xylan green | 50 |
| 1 inch | 52.4 x 4 | plain, zinc plated, hot dip galvanised, zinc yellow passivate, Xylan blue, zinc plated and Xylan green | 50 |
| 1-1/8 inch | 58.8 x 4 | plain, zinc plated, hot dip galvanised, zinc yellow passivate, Xylan blue, zinc plated and Xylan green | 20 |
| 1-1/4 inch | 65.1 x 4 | plain, zinc plated, hot dip galvanised, zinc yellow passivate, Xylan blue, zinc plated and Xylan green | 10 |
| 1-3/8 inch | 71.5 x 4 | plain, zinc yellow passivate, Xylan blue, zinc plated and Xylan green | 10 |
| 1-1/2 inch | 77.8 x 4 | plain, zinc yellow passivate, Xylan blue, zinc plated and Xylan green | 10 |
| 1-5/8 inch | 82.6 x 5.8 | plain, zinc yellow passivate, Xylan blue, zinc plated and Xylan green | 10 |
| 1-3/4 inch | 87.3 x 5.8 | plain, zinc yellow passivate, Xylan blue | 10 |
| 1-7/8 inch | 92.7 x 5.8 | plain, zinc yellow passivate, Xylan blue | 10 |
| 2 inch | 96.9 x 5.8 | plain, zinc yellow passivate, Xylan blue | 10 |
| 2-1/4 inch | 103.2 x 7.3 | plain, zinc yellow passivate | 10 |
| 2-1/2 inch | 115.9 x 7.4 | plain, zinc yellow passivate | 10 |
| 3 inch | 141.3 x 7.4 | plain, zinc yellow passivate | 10 |
Wedge-locking washers
Nord-Lock washers (Delta Protekt, 316L stainless, SMO 254 and Inconel 718, SC washers and blister packs) are listed with their sizes on our safety washer page, linked at the foot of this page.
Washer assortment kits
- Agpack 4: zinc plated flat round and spring washers, M6 (1/4 inch) to M20 (3/4 inch), 1,275 pieces in a plastic tub with a resealable lid, for rural and agricultural machinery.
- M5 to M12 zinc plated flat round and spring washer kit in a metal case.
- Nord-Lock assortment kits of 100 washers, in Delta Protekt or 316 stainless.
Washer finishes and materials
From Hobson's finish comparison, stainless steel guidance and nylon data:
- Zinc plated: 5 micron zinc with a clear passivate, for indoor and non-corrosive conditions.
- Zinc yellow passivate: 5 micron zinc with a yellow passivate, more corrosion resistant than zinc plated, for low corrosion conditions or temporary fixing.
- Hot dip galvanised: a 50 micron coating with high corrosion resistance, for long term outdoor work. Newer galvanising is a duller grey than it used to be; Hobson notes the brightness has no effect on performance.
- Zinc flake silver: a 10 micron coating with high corrosion resistance and no risk of hydrogen embrittlement.
- Plain: no coating, supplied lightly oiled to stop rust in the packet.
- 304 and 316 stainless: 316 has molybdenum added for better resistance near the sea. Neither 304 nor 316 is made to sit in seawater, and even 316 can visibly corrode where salt spray is left to build up.
- Nylon: Hobson calls PA6.6 (nylon 66) the standard polymer in its nylon range, and its black UV stable washers are nylon 66 with carbon black added. Hobson's nylon properties sheet gives PA6.6 a working temperature of -30 to +100°C; that figure is for the PA6.6 material, not a rating of a particular washer. Nylon absorbs moisture from the air, which makes it less stiff and more impact resistant.
Fitting tips
- Put a washer under the part you turn, usually the nut, so it does not score the surface as it is tightened.
- Use a washer under the bolt head as well where the surface is soft or the hole is oversize, to spread the load.
- Match the washer to the bolt: hardened washers with high tensile bolts, galvanised with galvanised bolts outdoors, stainless with stainless.
- Where two different metals meet, a nylon washer between them acts as a barrier.
Flat washers in Adelaide
Allmat supplies flat washers, bolts, nuts and threaded rod to builders, fabricators, mechanics and trade across Adelaide and South Australia. Add the washers to a quote with the bolts and nuts they go on, and we will price the lot.
Flat washers for the job
Steel, stainless, brass, nylon and hardened flat washers, with the bolts and nuts they go on, are available to order from Allmat for builders, fabricators, mechanics, electricians, farmers and trade across Adelaide and South Australia. Order through Allmat, we pick and pack it, then click and collect from the Allmat yard or have it delivered to site.
Goes with
Questions
What size is an M8, M10 or M12 washer?
It depends on the range. Our zinc plated mild steel washers are 19 x 1.6mm (M8), 22.5 x 2mm (M10) and 27.5 x 2.25mm (M12); the 316 stainless DIN 125A washers are 16 x 1.6mm, 20 x 2mm and 24 x 2.5mm. The common sizes are side by side in the table above, and every size is in the selector.
What are nylon washers used for?
As a barrier between dissimilar metals, for electrical insulation between conductive parts, to protect a surface, and to absorb shocks and vibration. Use black UV stable nylon outdoors.
304 or 316 stainless steel washers?
304 for general use, 316 near the coast: it has molybdenum added for better resistance near the sea. Neither is made to sit in seawater, and salt spray left to build up can mark even 316.
What does 16g mean on a washer?
The thickness, as a gauge number. Hobson's chart gives 16 gauge as 1.588mm and 14 gauge as 1.994mm. The full list is in the gauge chart above.
What is a Sampson washer?
Hobson's Sampson washers are hardened flat washers, 38 to 45 HRC for most finishes. Most are made to ASTM F436 (imperial) or F436M (metric), and Hobson lists them for high tensile bolts.
What is the difference between DIN 125A and DIN 433 washers?
DIN 433 washers have a smaller outside diameter than DIN 125A and are designed for use with cheese head screws. For example, a 316 DIN 433 M10 washer is 18mm across against 20mm for DIN 125A.
Do you have brass washers?
Yes, metric M3 to M24 and imperial 1/8 to 3/8 inch, both listed by Hobson to AS 1237, in packs of 100 or 200.
Where can I buy flat washers in Adelaide?
Order through Allmat. Order ahead by phone on 1300 03 03 63 or send your list for a quote, then click and collect from 25 Kapara Road, Gillman, or have them delivered to site.
Flat Washer: sizes and finishes we supply
652 lines by type and finish. Pick one above for its product code, pack sizes and dimensions.
| Type | Finish | Sizes | Lengths | Lines |
|---|---|---|---|---|
| Standard | Nylon Natural | M2, M2.5, M3, M3.5, M4, M5, M6, M7, M8, M10, M12, M14, M16, M18, M20, M22, M24, M27, M30, M33, M36, M39, M42 | x5.0x0.3 to x72.0x6.0 (64 lengths) | 75 |
| Standard | 316 Stainless | M2, M2.5, M3, M4, M5, M6, M8, M10, M12, M14, M16, M18, M20, M22, M24, M27, M30, M33, M36, M39, M42, M48 | x4.5x0.3 to x92.0x8.0 (42 lengths) | 70 |
| Standard | Zinc Plated | 3/32, 1/8, 5/32, 3/16, 1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 3/4, 7/8, 1, 1-1/8, 1-1/4 | x1-1/2x14g to x9/16x18g (23 lengths) | 51 |
| Standard | 316 Stainless | 3/16, 1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 3/4, 7/8, 1, 1-1/8, 1-1/4, 1-3/8, 1-1/2, 2 | x1-1/2x14g to x9/16x18g (22 lengths) | 42 |
| Shoulder (top hat) | Nylon Natural | M4, M5, M6, M8, M10, M12, M16, M20, M24 | 5 to 50 (17 lengths) | 40 |
| Standard | Steel | M6, M8, M10, M12, M16, M20, M22, M24, M27, M30, M33, M36, M39, M42, M45, M48, M52, M56, M64, M72, M80, M90, M100 | x16.0x1.4 to x125.0x7.0 (32 lengths) | 39 |
| Standard | 304 Stainless | 1/8, 5/32, 3/16, 1/4, 5/16, 3/8, 1/2, 5/8, 3/4, 7/8, 1 | x1-1/2x14g to x9/16x18g (17 lengths) | 36 |
| Standard | Zinc Plated | M2, M2.5, M3, M4, M5, M5-12, M6, M8, M10, M12, M14, M16, M18, M20, M24, M30, M36, Kit | x5.0x0.3 to x72.0x3.8 (32 lengths) | 35 |
| Hardened | Galvanised | M6, M8, M10, M12, M16, M20, M24, M27, M30, M33, M36, M39, M42, M45, M48, M52, M56, M64, M72, M80, M90, M100 | x12.0x1.6 to x180x16 (19 lengths) | 22 |
| Standard | Steel | 1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 3/4, 7/8, 1, 1-1/8, 1-1/4, 1-3/8, 1-1/2, 1-5/8, 1-3/4, 1-7/8, 2, 2-1/4, 2-1/2, 3 | - | 21 |
| Standard | Zinc Yellow Passivate | 1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 3/4, 7/8, 1, 1-1/8, 1-1/4, 1-3/8, 1-1/2, 1-5/8, 1-3/4, 1-7/8, 2, 2-1/4, 2-1/2, 3 | - | 21 |
| Standard | Galvanised | M6, M8, M10, M12, M16, M20, M22, M24, M27, M30, M33, M36, M39, M42, M45, M48, M52, M56, M64, M72 | x16.0x1.4 to x125.0x7.0 (17 lengths) | 20 |
| Standard | 304 Stainless | M3, M4, M5, M6, M8, M10, M12, M14, M16, M18, M20, M22, M24, M30 | x7.0x0.5 to x56.0x3.0 (19 lengths) | 20 |
| Standard | Nylon Natural | 1/8, 5/32, 3/16, 1/4, 5/16, 3/8, 1/2, 5/8, 3/4, 1, #8, #10 | x1-1/2x3/32 to x7/16x1/32 (10 lengths) | 18 |
| Shoulder (top hat) | Nylon Black UV Stable | M5, M6, M8, M10, M12, M16, M20 | 5, 8, 13, 15, 17, 18, 20, 25 | 16 |
| Flat round | 316 Stainless | M4, M5, M6, M8, M10, M12, M14, M16, M18, M20, M24, M27, M30, M33, M36 | x9.0x0.8 to x66.0x5.0 (15 lengths) | 15 |
| Standard | Xylan Blue | 3/8, 1/2, 5/8, 3/4, 7/8, 1, 1-1/8, 1-1/4, 1-3/8, 1-1/2, 1-5/8, 1-3/4, 1-7/8, 2 | - | 14 |
| Standard | Brass | 1/8, 5/32, 3/16, 1/4, 5/16, 3/8 | x1/2x21g to x9/16x19g (10 lengths) | 13 |
| Standard | Zinc Flake Silver | M5, M6, M8, M10, M12, M16, M20, M24, M30, M36 | x10.0x1.0 to x72.0x3.8 (12 lengths) | 12 |
| Standard | Brass | M3, M4, M5, M6, M8, M10, M12, M16, M20, M24 | x7.0x0.5 to x44.0x2.0 (10 lengths) | 10 |
| Standard | Zinc Plated & Xylan Green | 1/2, 5/8, 3/4, 7/8, 1, 1-1/8, 1-1/4, 1-3/8, 1-1/2, 1-5/8 | - | 10 |
| Standard, bulk carton | Nylon Natural | M3, M4, M5, M6, M8, M10, M12, M16 | x8.0x0.8 to x30.0x3.0 (9 lengths) | 9 |
| HUBO locking and sealing washer | Nylon Natural | M3, M4, M5, M6, M8, M10, M12, M16, M20 | x8.0x2.5 to x36.0x6.8 (9 lengths) | 9 |
| Standard | Nylon Black UV Stable | M4, M5, M6, M8, M10, M12, M16 | x9.0x0.8, x10.0x1.0, x12.0x1.5, x16.0x1.6, x20.0x2.0, x24.0x2.5, x30.0x3.0 | 7 |
| Standard | Galvanised | 1/2, 5/8, 3/4, 7/8, 1, 1-1/8, 1-1/4 | - | 7 |
| Standard | Zinc Yellow Passivate | M6, M8, M10, M12, M16, M20 | x12.0x1.6, x17.0x1.6, x21.0x2.0, x24.0x2.5, x30.0x3.0, x37.0x3.0 | 6 |
| Standard | Zinc Black Passivate | M3, M4, M5, M6, M8 | x7.0x0.5, x9.0x0.8, x10.0x1.0, x16.0x1.4, x19.0x1.6 | 5 |
| Standard | Weathering Steel | M24, M30, M36 | x50.0x3.8, x60.0x3.8, x72.0x3.8 | 3 |
| Standard, bulk carton | Nylon Black UV Stable | M6, M8, M10 | x12.0x1.5, x16.0x1.6, x20.0x2.0 | 3 |
| Holding washer | Nylon Natural | M10 | - | 1 |
| Standard, DIN 125 | Nylon Natural | M8 | - | 1 |
| Standard | Geomet | M20 | - | 1 |
Data sheets and documents
The documents for the product you choose are listed with the selector above. Here is every Flat Washer document from Hobson Engineering.
All Flat Washer documents (58)
Data sheets and technical data (18)
- A4-70 vs BUMAX 88 in Ammonium Nitrate Environment
- BUMAX 88 and BUMAX 109
- BUMAX Grades
- BUMAX Definitions
- Breaking Strength
- Product Finish Comparison
- Junker Test Principle
- Vibration Test Diagram
- Hardness Tables
- Nylon Resistance Chart
- Nylon Properties
- Petrochemical - Coating Application and Benefits
- Nylon Types
- Types of Washers
- Washer Gauge Conversion Chart
- Sampson Washer Dimensions
- Nord-Lock Steel Construction Washers - User Manual
- Nord-Lock Washers - User Manual
Approvals (ETA, DoP) (1)
Did You Know flyers (24)
- Nord-Lock Wedge-Locking Solutions - Brochure
- Flat Round Washer Metric
- AGPACKS 1, 2, 3 and 4
- Flat Round Washer
- Mild Steel Flat Round Washer
- Assortment Kits
- Flat Round Brass Washers
- DIN 125A Washer 316 Stainless
- Flat Round Hardened Washer
- Flat Round Sampson Washer
- Flat Round Neptune Washer
- Nord-Lock Washer SMO 254
- Flat Round Sampson Washer
- Trade PAX
- Weathering Steel Range
- Weathering Steel Nut & more
- Flat Round Sampson Washer
- Flat Round Washer Zinc Flake Silver
- Flat Round Sampson Washer
- Flat Round Sampson Washer
- Flat Round Sampson Washer
- Nylon Washer-Bushing+ Shoulder
- Nord-Lock SC-washers
- Nord-Lock Washer
Guides and articles (15)
- A different shade of grey
- Common Misconceptions About Stainless Steel
- Prevent Zinc Whiskers with HDG Products
- What is Stainless Steel?
- Why does rust occur?
- Zinc Flake Coating
- Anti-Vibration Paper
- Zinc Flake Coating Delta Protekt
- Bumax Product Guide
- Neptune Product Guide
- Nord-Lock Product Guide
- Nylon Product Guide
- Petrochemical Product Guide
- Structural Product Guide
- Washers Product Guide
Need them in bulk?
Add the sizes you need to your quote, or send us your list and we’ll price the lot and supply it with the rest of your order.
Browse all washers
