304 (A2) · 316 (A4) · A4-80 · Brass · Mild Steel · Nylon
Hobson Engineering Machine Screw
1,063 of 1,063 match, showing a popular pick, filter to find yours · Hobson Engineering
Measurement
Head
Drive
Thread
Size (diameter)
Length (mm)
Pitch / thread
Finish / coating
Grade / strength
Application — optional, by use

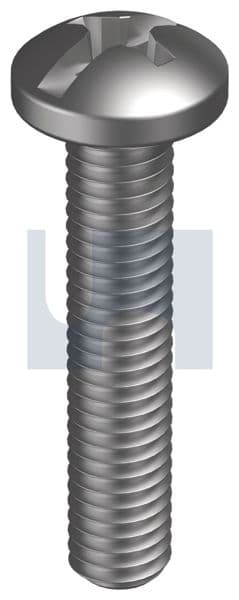

Z/P MS PAN PH/SL: M6 X 25
MSMSZPCM060025
pan-head Machine Screw in mild steel. Combi drive. Zinc-plated for light corrosion resistance in dry or indoor conditions. Made to AS1427:1996.
Specifications
- Standard
- AS1427:1996 / MILD STEEL
- Grade / class
- Mild Steel
- Material / finish
- Zinc Plated
- Head
- Pan
- Drive
- Combi
Buy by the
Sold by the box (200 ea). Prices on application, request a quote and we’ll price your list.
Documents & data sheets for this selection
Showing documents relevant to the selected variant. Courtesy of Hobson Engineering.
About the Machine Screw
Machine screws, also called metal-thread screws, run a uniform machine thread the full length for fastening into a tapped hole, nut or insert. Pick the head profile (pan, countersunk, cheese, round, mushroom, fillister) and drive (Phillips, slotted, Pozi, Torx or combination) to suit the joint, in zinc-plated steel and A2/A4 stainless.
Also known as: Metal Thread Screws, Pan Head Screws, CSK Screws, Countersunk Machine Screws.
Features
- Uniform metric machine thread
- Pan, countersunk, cheese, round, mushroom and fillister heads
- Phillips, slotted, Pozi, Torx and combi drives
- Thread-rolling and Taptite options
- Zinc-plated and stainless finishes
Applications
- Tapped holes and threaded inserts
- Enclosures, panels and switchgear
- Machinery and instruments
- General assembly
Standards & specification
- AS1427:1996 / MILD STEEL
- ANSI B18.6.3 / A2
- DIN965 (H) / A2
- BS450 / A2
- DIN963 / A2
- DIN84 / A2
- AS1427 / A2
- DIN7985(H) / A2
Need Machine Screw in bulk?
Add the sizes you need to your quote, or send us your list and we’ll price the lot and supply it with the rest of your order.
Browse all machine screws
