Mungo

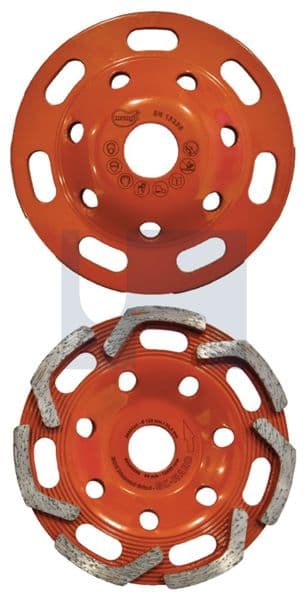

MDG GC-Hard Grinding Disc
Mungo MDG GC-Hard 125mm diamond grinding disc for grinding back concrete high spots, lips and edges with an angle grinder.
About the MDG GC-Hard Grinding Disc
The Mungo MDG GC-Hard is a diamond grinding disc for an angle grinder that grinds concrete and hard materials away rather than cutting through, for taking down high spots, lips between slabs and rough edges, and cleaning up concrete surfaces. It is 125mm with a 22.2mm bore, with diamond segments 4.5mm wide and 8.3mm high, used dry with no water cooling, and does both rough and fine finishing, one disc to a box. The guide below covers how it differs from cutting blades and metal grinding discs, and how to use it.
Also called concrete grinding wheel or diamond grinding disc.
Features
- Mungo branded
- Diamond grinding disc
- 125 mm diameter
- 22.2 mm bore
- Suits standard angle grinders
Applications
- Grinding down concrete high spots and edges
- Taking down lips between slabs
- Cleaning up concrete surfaces
- Grinding hard materials
What a concrete grinding disc does
A diamond grinding disc grinds material away instead of cutting through it. The MDG GC-Hard has diamond segments around its face, and Mungo lists it for concrete and hard materials, on an angle grinder. Typical jobs are taking down high spots, lips between slabs and rough edges, and cleaning up concrete surfaces.
Mungo lists four features: diamond segments for fast grinding and a long life, use on a grinding machine, use without water cooling, and one disc for both fine and rough finishing. It is oSa certified and complies with the EN 13236 safety standard.
Concrete grinding disc size and specification
One size: 125mm with a 22.2mm bore, the arbor size used on 125mm angle grinders. Select the row to open it in the selector.
MDG GC-Hard diamond grinding disc, from Mungo's MPG and MDG grinding disc data sheet. Dimensions in mm. Diamond layer width and height are the size of the diamond segments. Tap a number to show it in the selector above.
| Diameter | Bore | Diamond layer width | Diamond layer height | Cooling | Box |
|---|---|---|---|---|---|
| 125mm | 22.2mm | 4.5mm | 8.3mm | Dry (no water cooling) | 1 disc |
Diamond grinding disc, diamond blade or metal grinding disc?
- Diamond grinding disc (this page): for grinding concrete and hard materials flat or smooth. It is not a cutting blade.
- Diamond blades (MDC Power M, Laser Beton and others): for cutting concrete, brick and other hard building materials.
- MPG Pro Grind grinding disc: an abrasive disc for metal, used for deburring, weld cleaning, surface cleaning and dressing angles and corners. It is free of iron, sulphur and chlorine, which prevents contamination of stainless steel.
- MPC Pro Cut cutting discs: thin abrasive discs for cutting metal.
How to use a diamond grinding disc
- Check the grinder takes a 125mm disc on a 22.2mm arbor, and fit the disc following the grinder maker's instructions with the guard in place.
- Check the maximum speed (RPM) marked on the disc is at or above your grinder's no load speed, so the grinder never runs the disc faster than its rating. Mungo's sheet does not give an RPM, so read it off the disc (general safe use advice).
- Wear eye, hearing and dust protection. Grinding concrete dry makes a lot of fine dust.
- It can be used dry: Mungo lists use without water cooling as a feature of the MDG GC-Hard.
- Use the same disc for rough grinding and for the finishing pass; Mungo makes it as one disc for both.
- Check the disc before each use and replace a damaged disc.
Concrete grinding discs in Adelaide
Allmat supplies diamond grinding discs, diamond blades and cutting discs to concreters, builders and trade across Adelaide and South Australia. Add them to a quote with the rest of your list, and we will price the lot.
Concrete grinding discs for the job
Diamond grinding discs, diamond blades and cutting discs for angle grinders are available to order from Allmat for concreters, builders, tilers and trade across Adelaide and South Australia. Order through Allmat, we pick and pack it, then click and collect from the Allmat yard or have it delivered to site.
Goes with
Questions
What is a concrete grinding disc used for?
Grinding concrete and hard materials with an angle grinder, which is what Mungo lists the MDG GC-Hard for. Typical jobs are taking down high spots, lips and rough edges and cleaning up surfaces. It is one disc for rough and fine finishing.
Can I use this diamond grinding disc dry?
Yes. Mungo lists use without water cooling as a feature of the MDG GC-Hard. Wear dust protection, as grinding concrete dry makes fine dust.
What size grinder does it fit?
It is a 125mm disc with a 22.2mm bore, to suit a 125mm angle grinder. Check the maximum speed marked on the disc is at or above the grinder's no load speed.
Can I grind metal with it?
Mungo lists it for concrete and hard materials, not metal. For metal, use the MPG Pro Grind grinding disc, which is made for deburring, weld cleaning and surface cleaning.
What is the difference between a diamond grinding disc and a diamond blade?
A grinding disc grinds a surface down; a diamond blade cuts through the material. Use a diamond blade such as the MDC Power M to cut concrete or brick, and this disc to grind it.
Does it meet a safety standard?
Mungo states the MDG GC-Hard is oSa certified and complies with the EN 13236 safety standard.
Where can I buy a concrete grinding disc in Adelaide?
Order through Allmat. Order ahead by phone on 1300 03 03 63 or send your list for a quote, then click and collect from 25 Kapara Road, Gillman, or have them delivered to site.
MDG GC-Hard Grinding Disc: sizes and finishes we supply
1 line by finish. Pick one above for its product code and pack sizes.
| Type | Diameter (mm) | Bore (mm) | Lines |
|---|---|---|---|
| Diamond Blade | 125 | 22.2 | 1 |
