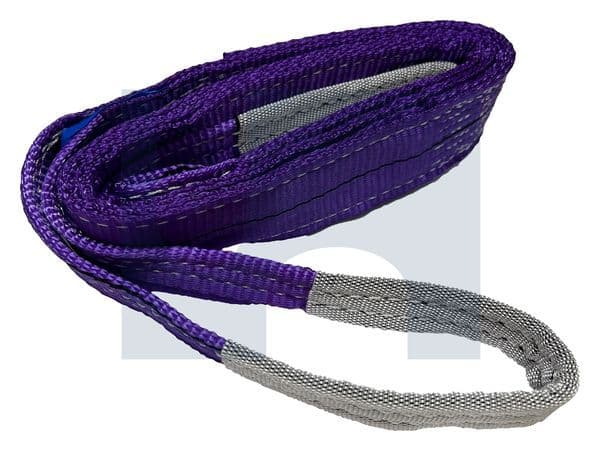

Flat Webbing Lifting Slings

Two-ply flat polyester webbing slings with protected eyes, made to EN 1492-1 and AS 1353.1 performance requirements: 1,000, 2,000 and 3,000kg working load limit, 1 to 6m long.

About the Flat Webbing Lifting Slings

Flat webbing slings spread the load over their full width, so they are kind to timber packs, sheet, pipe and coated or crushable loads on crane truck lifts. They are two-ply polyester with protected eyes, made with an 8:1 safety factor to EN 1492-1 and the performance requirements of AS 1353.1: purple 1,000kg (50mm), green 2,000kg (60mm) and yellow 3,000kg (90mm), 1 to 6m long. Choose the rating and length above; the guide below covers capacity by hitch and safe use.

Also called webbing slings or flat lifting slings.

Features

Meets the performance requirements of AS 1353.1 (complies with EN 1492-1)
2 ply polyester webbing
Protected eyes
Colour coded by WLL

Applications

Crane truck deliveries
Lifting timber packs, sheet and pipe
Coated or crushable loads

Why use a flat webbing sling

A flat sling spreads the load over its full width, so it reduces the force at any one point and is kind to finished, coated or crushable loads such as timber packs, sheet and pipe. Polyester slings mark the load far less than chain. The eye at each end suits a choke, basket or straight lift.

Eye each end

Two ply webbing, protected eyes

Basket under a long load

Wide webbing spreads the load

Flat sling capacity by hitch

The WLL on the tag is for a straight vertical lift. A choke cuts it to 80%; a basket doubles it while the legs hang straight, and the wider the angle between the legs, the less it carries.

Maximum load in kg by hitch. Angles are between the two legs of a basket. Tap a number to show it in the selector above.

Sling	Width	Vertical	Choke	Basket	60°	90°	120°
Purple 1,000kg	50mm	1,000	800	2,000	1,700	1,400	1,000
Green 2,000kg	60mm	2,000	1,600	4,000	3,400	2,800	2,000
Yellow 3,000kg	90mm	3,000	2,400	6,000	5,100	4,200	3,000

10 tips for safe lifting with flat slings

Ask before using a lifting arrangement not covered by the capacity chart.
Never use a sling whose WLL tag is missing.
Inspect the sling for damage before each use.
Retire any sling with cut webbing, snags, or heat or chemical damage.
Never tie knots in a webbing sling.
Protect the sling from sharp edges with protective sleeves.
Keep slings away from temperatures above 90°C.
Keep grit and abrasives out of the fibres.
Check with us before a sling goes near chemicals.
Keep slings away from strong alkalis and phenolic compounds.

Flat slings in Adelaide

Allmat supplies flat and round lifting slings, shackles, hooks and chain fittings to crane truck operators, riggers and builders across Adelaide and South Australia.

Flat slings for crane trucks and site lifting

Flat webbing slings, round slings, shackles and hooks are available to order from Allmat for crane truck operators, riggers, builders and trade across Adelaide and South Australia. Order through Allmat, we pick and pack it, then click and collect from the Allmat yard or have it delivered to site.

Send your list for a quote Call 1300 03 03 63

Goes with

Questions

Flat sling or round sling?

A flat sling spreads the load over a wide bearing surface, good for long or crushable loads in a basket hitch. A round sling is more versatile, chokes tighter and can be rotated to spread wear.

What do the flat sling colours mean?

The colour shows the working load limit: purple 1,000kg, green 2,000kg, yellow 3,000kg. The tag states the same rating.

How much can a flat sling lift in a choke?

80% of its WLL: a 2,000kg green sling choked is good for 1,600kg.

Where can I buy flat slings in Adelaide?

Order through Allmat. Order ahead by phone on 1300 03 03 63 or send your list for a quote, then click and collect from 25 Kapara Road, Gillman, or have them delivered to site.
