Grade 100 · Grade 80
Chain Sling Fittings (Master & Connecting Links)
Grade 80 and Grade 100 chain sling fittings: master links for the crane hook (to 36mm), master link assemblies for multi-leg slings, and connecting (hammerlock) links for 6 to 32mm chain.
About the Chain Sling Fittings (Master & Connecting Links)
Chain sling fittings make up and join chain slings: master links sit on the crane hook, master link assemblies top multi-leg slings, and connecting links (hammerlocks) join chain to hooks and links. They are Grade 80 and Grade 100 to AS 3776, with connecting links for 6 to 32mm chain and master links to 36mm, each marked with its WLL and a trace code. Choose the fitting and size above; the guide below covers working load limits.
Also called master links or hammerlocks.
Features
- Grade 80, rated and marked
- Sized to chain diameter
- Hammerlock couplings assemble on site
- Powder coated
Applications
- Making up chain slings
- Attaching hooks to chain
- Multi-leg sling tops
Master links and connecting links
- Master link: the top link of a chain sling that sits on the crane hook, for 1 or 2 leg slings with chain, wire rope or synthetic slings.
- Master link assembly: a master link with intermediate links, for multi-leg slings.

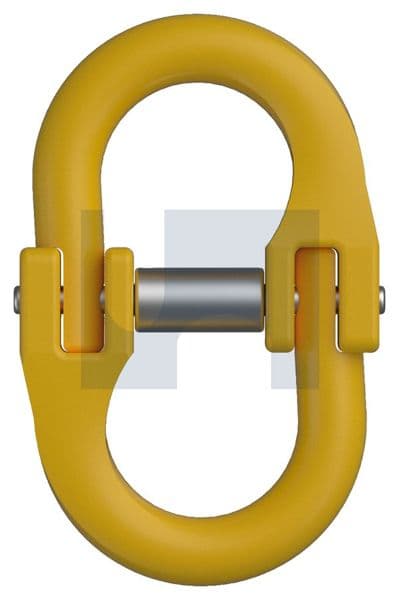

- Connecting link (hammerlock): joins chain to hooks, master links and other fittings.
Working load limits
A master link is sized by the chain it carries: one size suits a single leg of one chain size or two legs of the next size down. All parts conform to AS 3776 and are 100% magnaflux crack tested.
Grade 80 connecting links and master links: WLL from the data sheets. Tap a number to show it in the selector above.
| Size | Connecting link WLL | Master link WLL | Master link suits chain (1 leg / 2 leg) |
|---|---|---|---|
| 8mm | 2,000kg | 2,700kg | 8mm / 7mm |
| 10mm | 3,150kg | 3,500kg | 10mm / 8mm |
| 13mm | 5,300kg | 5,500kg | 13mm / 10mm |
| 16mm | 8,000kg | 9,400kg | 16mm / 13mm |
| 20mm | 12,500kg | 14,200kg | 20mm / 16mm |
| 22mm | 15,000kg | 22,300kg | 22mm / 20mm |
| 26mm | 21,200kg | 33,500kg | 26mm / 22mm |
| 32mm | 31,500kg | 40,800kg | 32mm / 26mm |
Chain sling fittings in Adelaide
Allmat supplies Grade 80 and 100 chain sling fittings, hooks, shackles and slings to crane truck operators and riggers across Adelaide and South Australia.
Chain sling fittings
Master links, connecting links, hooks, shackles and slings are available to order from Allmat for crane truck operators, riggers and trade across Adelaide and South Australia. Order through Allmat, we pick and pack it, then click and collect from the Allmat yard or have it delivered to site.
Goes with
Questions
What is a hammerlock?
A connecting link that joins chain to hooks, master links and other Grade 80 fittings. It is assembled with a pin through two halves.
What size master link do I need?
Choose by chain size and number of legs: for example the 13mm master link suits a single leg of 13mm chain or two legs of 10mm chain.
Where can I buy chain sling fittings in Adelaide?
Order through Allmat. Order ahead by phone on 1300 03 03 63 or send your list for a quote, then click and collect from 25 Kapara Road, Gillman, or have them delivered to site.
Chain Sling Fittings (Master & Connecting Links): sizes and finishes we supply
46 lines by type and finish. Pick one above for its product code, pack sizes and dimensions.
| Type | Finish | Chain size | Lines |
|---|---|---|---|
| Master link | Powder Coated | 8mm, 10mm, 13mm, 16mm, 20mm, 22mm, 26mm, 32mm, 36mm | 17 |
| Connecting link (hammerlock) | Powder Coated | 6mm, 8mm, 10mm, 13mm, 16mm, 20mm, 22mm, 26mm, 32mm | 15 |
| Master link assembly | Powder Coated | 7mm, 8mm, 10mm, 13mm, 16mm, 20mm, 22mm, 26mm | 14 |
Data sheets and documents
The documents for the product you choose are listed with the selector above. Here is every Chain Sling Fittings (Master & Connecting Links) document from Hobson Engineering.
All Chain Sling Fittings (Master & Connecting Links) documents (10)
Data sheets and technical data (4)
Did You Know flyers (5)
Guides and articles (1)
