Galvanised · 304 Stainless · 316 Stainless

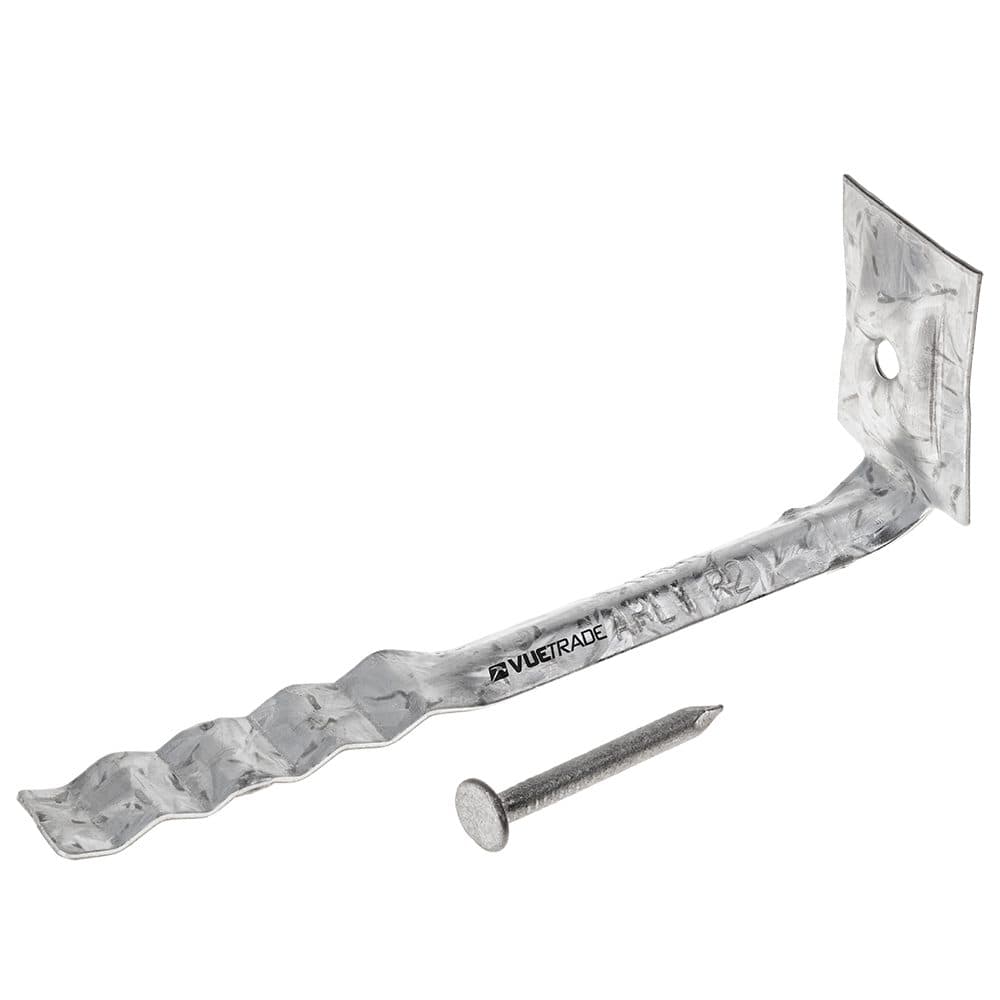

Brick Veneer Ties (R2, R3, R4)
About the Brick Veneer Ties (R2, R3, R4)
VUETRADE Brick Veneer Ties tie brick veneer to timber wall frames. Durability class R2 (Z600 galvanised), R3 (304 stainless) or R4 (316 stainless), each light duty with the supplied nails or medium duty with the supplied screws, cartons of 150. VUETRADE rates them for a 50mm cavity on timber frames only, to AS/NZS 2699.1:2020 and AS 3700:2018. The durability class and duty are set by your architect or engineer.
Features
- R2 Z600 galvanised: 10km or more from breaking surf and 1km or more from a sheltered coast, and not in contact with fresh water or frequent non-saline wetting and drying (VUETRADE area chart)
- R3 304 stainless: 1 to 10km from breaking surf, or 100m to 1km from a sheltered coast
- R4 316 stainless: within 1km of breaking surf or 100m of a sheltered coast (VUETRADE technical data)
- VUETRADE does not cover heavy industrial areas: use your engineer's specification there
- Rated for a 50mm cavity on timber frames only, fixed with the supplied VUETRADE fixings only
- Light duty with the supplied 30 x 3.2mm nails, medium duty with the supplied 30 x 4.5mm screws
- AS/NZS 2699.1:2020 and AS 3700:2018 (VUETRADE)
- Check local rules on stainless ties (VUETRADE)
Applications
- Tying brick veneer to timber wall frames
- Durability class and duty to the architect or engineer's specification
Brick Veneer Ties (R2, R3, R4): sizes and finishes we supply
6 lines by finish. Pick one above for its product code and pack sizes.
| Finish | Durability / duty | Lines |
|---|---|---|
| Galvanised | R2 galvanised, light duty (nails), R2 galvanised, medium duty (screws) | 2 |
| 304 Stainless | R3 304 stainless, light duty (nails), R3 304 stainless, medium duty (screws) | 2 |
| 316 Stainless | R4 316 stainless, light duty (nails), R4 316 stainless, medium duty (screws) | 2 |
Need them in bulk?
Add the sizes you need to your quote, or send us your list and we’ll price the lot and supply it with the rest of your order. Allmat supplies Brick Veneer Ties (R2, R3, R4) across Adelaide and South Australia. Order ahead on 1300 03 03 63.
Browse all masonry ties
