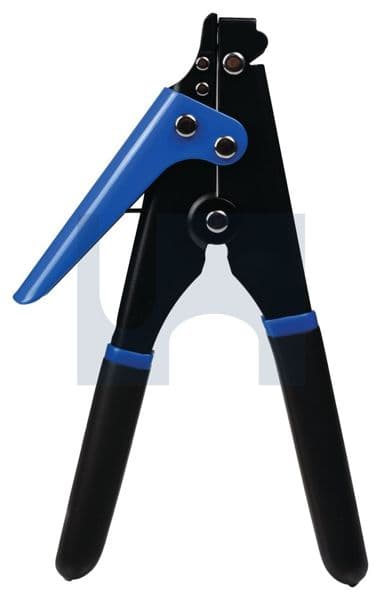

Cable Tie Tension Tool
Hand tensioning tool for cable ties, listed for tie sizes 3 to 10.
About the Cable Tie Tension Tool
A cable tie gun grips the tail of a cable tie and pulls it tight as you squeeze, so every tie on a run is drawn up the same, handy for electricians, solar installers and fabricators getting through lots of ties. Ours is a steel hand tool that Hobson lists for tie sizes 3 to 10, sold singly. The guide below covers which ties to use with it and fitting a tie.
Also called cable tie gun, zip tie gun or cable tie tool.
Features
- Cable tie tension tool
- Listed for sizes 3 to 10
- Steel construction
Applications
- Electrical cable runs
- Solar panel cabling
- Fabrication jobs with lots of ties
What a cable tie gun does
A cable tie gun, or cable tie tension tool, grips the tail of a cable tie and pulls it tight as you squeeze the handle, so every tie on a run is drawn up the same way without pulling by hand. Electricians, solar installers and fabricators use one where a job takes a lot of ties.
Ours is a steel hand tool that Hobson lists as a cable tie tension tool for sizes 3 to 10, sold singly in a retail pack.
The tool, as Hobson lists it. Tap a number to show it in the selector above.
| Listed for sizes | Material | Pack | Retail pack size (mm) |
|---|---|---|---|
| 3 to 10 | Steel | Sold singly | 260 x 150 x 20 |
Which ties to use with it
Hobson lists the tool for sizes 3 to 10 but does not say what the numbers measure or publish a data sheet for it, so we make no claim about which tie widths it takes. Our nylon cable ties come in widths from 2.5 to 12.6mm.
- Natural nylon ties: for indoor use, such as switchboards, server racks and cable harnesses. Hobson's data sheet says to avoid direct sunlight and UV.
- Black UV stabilised nylon ties: for outdoor work such as solar installs, netting and irrigation.
- Both are Nylon 66, rated from -40°C to 85°C. A wider tie is a stronger tie: from 8.2kg tensile strength at 2.5mm wide to 79.3kg at 9.0mm, per Hobson's nylon tie sheet.
Fitting a cable tie with a tension tool
- Wrap the tie around the bundle and feed the tail through the head, teeth facing in.
- Pull it snug by hand.
- Slide the tail into the nose of the tool and squeeze the handle to draw the tie up.
- Stop at firm. Do not overtighten on cables: crushed insulation fails early.
- Trim the tail flush with the head, so there is no sharp edge left to cut hands.
Wider tie, stronger tie (Nylon 66 tensile strength)
Cable tie guns in Adelaide
Allmat supplies the cable tie tension tool and nylon and stainless cable ties to electricians, solar installers and trade across Adelaide and South Australia. Add the tool to a quote with your ties and we will price the lot.
A cable tie gun with the ties to go with it
The cable tie tension tool and nylon and stainless cable ties are available to order from Allmat for electricians, solar installers, fabricators and trade across Adelaide and South Australia. Order through Allmat, we pick and pack it, then click and collect from the Allmat yard or have it delivered to site.
Goes with
Questions
Is a cable tie gun the same as a cable tie tension tool?
Yes. Cable tie gun, zip tie gun, cable tie tool and cable tie tensioner are names for a hand tool that pulls a cable tie tight.
What size ties does it take?
Hobson lists it for sizes 3 to 10 without saying what the numbers measure or publishing a data sheet, so we make no claim about which tie widths it takes.
Does it cut the tail off?
Hobson lists it as a tension tool and publishes no specification, so we do not claim it cuts the tail. Trim the tail flush with side cutters.
Which ties should I use outdoors?
Black UV stabilised nylon ties for most outdoor work, or stainless steel ties for coastal work. Natural nylon ties are for indoors.
Where can I buy a cable tie gun in Adelaide?
Order through Allmat. Order ahead by phone on 1300 03 03 63 or send your list for a quote, then click and collect from 25 Kapara Road, Gillman, or have it delivered to site.
Cable Tie Tension Tool: sizes and finishes we supply
1 line by finish. Pick one above for its product code and pack sizes.
| Finish | Sizes | Lines |
|---|---|---|
| Steel | 3 to 10 | 1 |
Need them in bulk?
Add the sizes you need to your quote, or send us your list and we’ll price the lot and supply it with the rest of your order.
