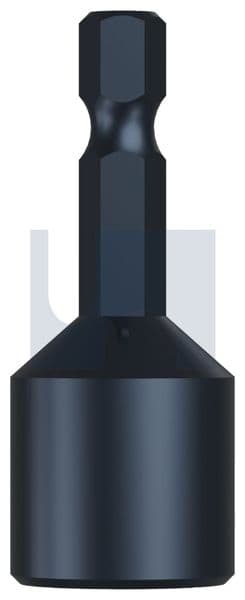

XBolt Vertical Hanger Socket
13mm socket for driving XBolt screw-in vertical hangers into concrete for threaded rod.
About the XBolt Vertical Hanger Socket
This socket drives XBolt vertical hangers, the screw-in concrete anchors that take threaded rod for hanging pipes, ducting, cable tray, fire sprinklers and ceilings. It is 13mm across flats with a 1/4 inch drive, blue, in packs of 10, and Hobson names it for the zinc plated XBolt PRO M8/M10 vertical hangers (40 and 55mm) and the XBolt M10 x 38 hanger. It does not fit the 15mm head of the M10/M12 hanger. Choose it above; the guide below covers installing the hangers and which socket to use for the others.
Also called XBolt PRO hanger sockets, XBolt concrete hanger sockets or 13mm vertical hanger sockets.
Features
- 13mm across flats socket, 1/4 inch hex drive
- Suits the zinc plated XBolt PRO M8/M10 vertical hangers (40 and 55mm) and the XBolt M10 x 38 hanger
Applications
- Installing M10 XBolt vertical hangers
- Ceiling and pipe hangers
- HVAC and air-conditioning hangers
- Fire sprinkler and cable tray suspension
- Mechanical, electrical and plumbing services
What the XBolt vertical hanger socket is
An XBolt vertical hanger is a one-piece screw type anchor for solid concrete with a hex head and a female thread on top for threaded rod. As it is screwed into a drilled hole it taps its own thread into the concrete, and the rod then screws into the head. Hobson lists the hangers for mechanical, electrical and pipe hangers, ceiling hangers, HVAC, fire sprinklers, cable tray and suspension of mechanical services.
This socket is the tool that drives them. Hobson's hanger sheets give it as "Socket to suit: MXSVSM10, AF = 13mm, 1/4 inch drive", and its Conxtruct product guide lists it as the vertical hanger socket for the M10 XBolt, blue. Hobson recommends a cordless impact driver for these hangers.
Which XBolt hangers this socket drives
Each hanger below has a 13mm hex head, and its Hobson data sheet names this socket. Every row opens the socket (MXSVSM10) in the selector; the hangers themselves are on our rod hanger pages.
Hangers whose Hobson data sheets name MXSVSM10, in mm. From the XBolt PRO vertical hanger sheet (231026DS) and the XBolt vertical hanger sheet (2004031DS). Max torque is the sheet's maximum installation torque; the XBolt M10 x 38 sheet gives none. Min concrete thickness is not on the XBolt M10 x 38 sheet. The socket is sold in packs of 10. Tap a number to show it in the selector above.
| Hanger | Socket code | Takes rod | Head A/F | Drill | Embedment | Max torque | Min edge | Min spacing | Min concrete |
|---|---|---|---|---|---|---|---|---|---|
| XBolt M10 x 38 hanger (MVXMSZIM100038, zinc plated) | MXSVSM10 | M10 | 13 | 6 | 38 | Not given | 40 | 50 | Not given |
| XBolt PRO M8/M10 x 40 hanger (EVXMSZ17M100040, zinc plated) | MXSVSM10 | M8 or M10 | 13 | 6 | 40 | 15Nm | 35 | 35 | 100 |
| XBolt PRO M8/M10 x 55 hanger (EVXMSZ17M100055, zinc plated) | MXSVSM10 | M8 or M10 | 13 | 6 | 55 | 15Nm | 45 | 45 | 100 |
XBolt hangers this socket is not listed for
- XBolt PRO M10/M12 x 60 (zinc plated or zinc flake silver): a 15mm hex head per Hobson's sheets, so this 13mm socket does not fit. Use a 15mm socket; Hobson's sheet for it names none.
- XBolt PRO M8/M10 zinc flake silver (40 and 55mm): the same M8/M10 size, but no Hobson sheet we hold gives its head size or names a socket, so we do not list this socket for it.
- XBolt PRO M10 x 40 flange stud: no Hobson document we hold names a socket for it, so we do not list this socket for it.
- Self-drilling rod hangers for steel and timber: these have a 16mm hex and take the 16mm vertical hanger socket on our driver sockets page, not this one.
Installing an XBolt M8/M10 vertical hanger
- Check the concrete thickness, edge distance and spacing against the table above before drilling.
- Drill a 6mm hole with a masonry bit and hammer drill (the ETA for XBolt PRO covers hammer drilled holes only) to the depth for the hanger: the vertical hanger page lists the hole depths.
- Fit this socket to a cordless impact driver (1/4 inch drive), seat it on the hanger head and drive the hanger in until the head sits on the concrete. For the XBolt PRO hangers, do not exceed the 15Nm maximum installation torque on Hobson's sheet.
- Screw the threaded rod into the head.
The socket does not change what a hanger holds
Hobson publishes working and design loads for each hanger only with conditions attached: concrete strength, cracked or non-cracked concrete, embedment, edge distance and spacing. Those values and their conditions are on our vertical hanger pages, not here, and the ETA for the XBolt PRO says anchorages are designed by an engineer experienced in anchorages and concrete. Hang services to the services designer's or engineer's layout.
XBolt hanger sockets in Adelaide
Allmat supplies XBolt hanger sockets, XBolt PRO rod hangers, threaded rod and SDS drill bits to electricians, plumbers, fire services and HVAC installers across Adelaide and South Australia. Add the sockets to a quote with the hangers and rod, and we will price the lot.
XBolt hanger sockets with your hangers
XBolt vertical hanger sockets, XBolt PRO rod hangers, threaded rod and SDS drill bits are available to order from Allmat for electricians, plumbers, fire services, HVAC installers and trade across Adelaide and South Australia. Order through Allmat, we pick and pack it, then click and collect from the Allmat yard or have it delivered to site.
Goes with
Questions
What socket do I need for an XBolt PRO vertical hanger?
For the zinc plated M8/M10 hangers (40 and 55mm) and the XBolt M10 x 38 hanger, this one: Hobson's sheets name MXSVSM10, 13mm across flats, 1/4 inch drive. The M10/M12 x 60 hanger has a 15mm head, so it needs a 15mm socket.
Is this the same as the 16mm vertical hanger socket?
No. The 16mm socket (MXSVS-SI) is for the self-drilling rod hangers that go into steel and timber. This 13mm socket is for the XBolt hangers that screw into concrete.
What drive does the XBolt hanger socket have?
A 1/4 inch drive, per Hobson's hanger sheets. Hobson recommends a cordless impact driver.
What drill size for the XBolt M8/M10 vertical hanger?
6mm, per Hobson's sheets, in a hammer drilled hole. For the M10/M12 hanger, Hobson's zinc flake M10/M12 sheet gives an 8mm hole.
How tight do I drive an XBolt PRO hanger?
Until the head sits on the concrete, without exceeding the maximum installation torque on Hobson's sheet: 15Nm for the M8/M10 hangers.
Does it fit the zinc flake silver XBolt PRO hangers?
We do not list it for them: no Hobson sheet we hold names a socket or gives the head size for the zinc flake M8/M10 hangers. The zinc flake M10/M12 hanger has a 15mm head, so this socket does not fit it.
How many sockets come in a pack?
Packs of 10.
Where can I buy XBolt hanger sockets in Adelaide?
Order through Allmat. Order ahead by phone on 1300 03 03 63 or send your list for a quote, then click and collect from 25 Kapara Road, Gillman, or have them delivered to site.
XBolt Vertical Hanger Socket: sizes and finishes we supply
1 line by finish. Pick one above for its product code and pack sizes.
| Finish | Sizes | Lines |
|---|---|---|
| Blue | M10 | 1 |
Data sheets and documents
The documents for the product you choose are listed with the selector above. Here is every XBolt Vertical Hanger Socket document from Hobson Engineering.
All XBolt Vertical Hanger Socket documents (5)
Data sheets and technical data (2)
