Class 10.9

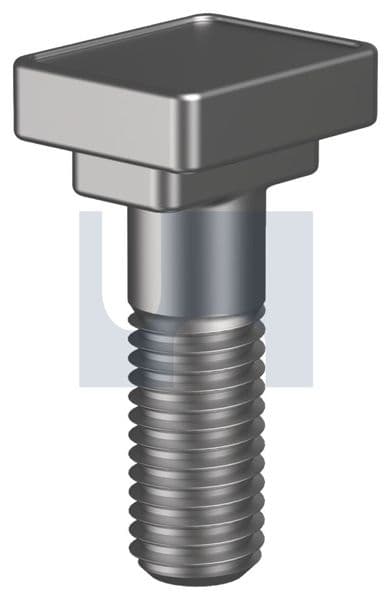

T-Bolt
SOKO class 10.9 T slot bolts for clamping work and fixtures in the T-slots of machine tables, jigs and welding tables.
About the T-Bolt
T bolts have a T-shaped head that slides into the T-slots of a machine table, jig or fixture, for clamping work and fixtures down on mills, drills and welding tables. Ours are SOKO class 10.9 high tensile steel, plain finish and part threaded, in metric M8 to M24 (30 to 230mm long) and BSW 3/8 to 1 inch (1-1/2 to 8 inches long), in packs of 5 to 25. Choose the thread and length above; the guide below covers sizing to the slot, the nuts to use and the plain finish.
Also called T slot bolts or T head bolts.
Features
- T-shaped head for channel and T-slots
- High-tensile class 10.9
- Plain finish
- SOKO range
Applications
- Clamping work on milling and drilling machine tables
- Jigs, fixtures and welding tables
- Channel and T-slot connections
What T bolts are for
A T bolt has a T-shaped head instead of a hex. The head slides along the wide, undercut part of a T-slot and the shank comes up through the narrow opening, so the bolt can be set anywhere along the slot and the head bears under the slot lips when the nut is done up. That is how work, vices, clamps, jigs and fixtures are held down on machine tables, and it is what most people mean by T slot bolts.
Ours are from Hobson's SOKO high tensile range: class 10.9 steel, plain finish, part threaded, sold as the bolt only (order nuts and washers separately).
Choosing a T slot bolt: thread, slot and length
- Thread: metric coarse (M8 to M24) or BSW (3/8 to 1 inch). Match the nuts, clamps or tapped parts you already use; metric and BSW threads do not interchange.
- Slot: the head has to slide in the wide part of the T-slot and the shank pass through the opening. Hobson publishes no head or neck dimensions for these T bolts, so match the bolt you are replacing, or ask us.
- Length: long enough to pass through the clamp or part being held, with full thread engagement in the nut. Metric lengths are in millimetres and BSW lengths in inches.
T bolt sizes: M8 to M24 and BSW 3/8 to 1 inch
Every T bolt we carry, smallest to largest, metric then BSW. All are class 10.9, plain finish and part threaded. Select a size to open it in the selector, then pick the length.
Every T bolt size we carry. Lengths are millimetres for metric and inches for BSW, as Hobson lists them. Pitch is the distance between threads (metric) or threads per inch (TPI, BSW), from the SKU thread data. Pack is the minimum order quantity, which changes with length on some sizes. Tap a number to show it in the selector above.
| Size | Thread | Lengths | Pack |
|---|---|---|---|
| M8 | Metric coarse, 1.25mm pitch | 30, 40mm | 25 |
| M10 | Metric coarse, 1.50mm pitch | 35, 40, 50, 60, 70, 80, 90, 100, 125mm | 10 (35 to 100mm); 5 (125mm) |
| M12 | Metric coarse, 1.75mm pitch | 40, 50, 55, 60, 70, 80, 100, 125mm | 25 (40 to 50mm); 10 (55 to 100mm); 5 (125mm) |
| M16 | Metric coarse, 2.00mm pitch | 50, 60, 65, 70, 80, 100, 125, 160mm | 10 |
| M20 | Metric coarse, 2.50mm pitch | 60, 80, 90, 100, 125, 140, 160, 200, 230mm | 10 (60 to 160mm); 5 (200 to 230mm) |
| M24 | Metric coarse, 3.00mm pitch | 100, 120, 160, 200mm | 5 |
| 3/8 inch | BSW, 16 TPI | 2, 3, 4, 5 inch | 25 (2 to 4 inch); 10 (5 inch) |
| 1/2 inch | BSW, 12 TPI | 1-1/2, 2, 2-1/2, 3, 3-1/2, 4, 6, 7, 8 inch | 25 (1-1/2 to 4 inch); 5 (6 to 8 inch) |
| 5/8 inch | BSW, 11 TPI | 2, 2-1/2, 3, 3-1/2, 4, 4-1/2, 5 inch | 25 (2 to 4-1/2 inch); 10 (5 inch) |
| 3/4 inch | BSW, 10 TPI | 3, 3-1/2, 4, 4-1/2, 5, 6, 7, 8 inch | 25 (3 inch); 10 (3-1/2 to 6 inch); 5 (7 to 8 inch) |
| 7/8 inch | BSW, 9 TPI | 4, 5, 6, 7, 8 inch | 5 |
| 1 inch | BSW, 8 TPI | 4, 5, 6 inch | 5 |
Nuts and washers for T bolts
- Class 10.9 is a high tensile bolt. For metric T bolts, Hobson's nyloc nut torque sheets work class 10 nuts on class 10.9 bolts; plain class 10 hex nuts from M6 to M48 are on our hex nut page.
- For BSW T bolts, most BSW hex nuts we carry are mild steel, brass or stainless. For 1/2 inch BSW there is also a plain grade 2H (ASTM A194) heavy hex nut on our hex nut page. Hobson does not pair a nut with these T bolts, so call us on 1300 03 03 63 for a nut to suit a class 10.9 BSW bolt.
- A flat washer or a flange nut spreads the clamping load under the nut onto the clamp or part.
- Hobson publishes no tightening torque for these T bolts: its SOKO class 10.9 torque sheet covers socket, button and countersunk head screws, not T bolts. Follow the machine or fixture maker's figures.
Plain finish: where T bolts suit
Plain means no added coating: Hobson supplies plain products lightly oiled to slow rust in the packet and help them go in. That suits machine tables, jigs and fixtures indoors, where the bolts stay dry and oiled.
Plain steel has no corrosion protection for outdoor or wet work. For anything exposed to the weather, Hobson's corrosion guide calls for stainless steel or hot dip galvanising, and we do not carry T bolts in either, so these are for dry, indoor use. Hobson publishes no load rating for them, so do not use them for structural connections or anything that holds people; that needs a rated fastener chosen by your engineer or designer.
T bolts in Adelaide
Allmat supplies T bolts, high tensile nuts, washers and workshop fasteners to fitters, machinists and fabricators across Adelaide and South Australia. Add them to a quote with the rest of your list, and we will price the lot.
T bolts, nuts and washers for the workshop
Class 10.9 T bolts in metric and BSW, with the nuts and washers to go with them, are available to order from Allmat for fitters, machinists, fabricators and trade across Adelaide and South Australia. Order through Allmat, we pick and pack it, then click and collect from the Allmat yard or have it delivered to site.
Goes with
Questions
What is a T bolt used for?
Holding work, vices, clamps, jigs and fixtures down on machine tables and other parts with T-slots. The T-shaped head slides along the slot and locks under it when the nut is tightened.
Are T bolts and T slot bolts the same thing?
Yes. T bolt, T slot bolt and T head bolt all describe a bolt with a T-shaped head for a T-slot.
What strength are your T bolts?
Class 10.9 high tensile steel, from Hobson's SOKO range, in a plain finish.
Do you have metric and imperial T bolts?
Yes. Metric coarse M8, M10, M12, M16, M20 and M24 from 30 to 230mm long, and BSW 3/8, 1/2, 5/8, 3/4, 7/8 and 1 inch from 1-1/2 to 8 inches long.
Will these T bolts fit my T-slot?
Hobson publishes no head dimensions for these T bolts, so match them to the bolt you are replacing, or ask us.
How are T bolts sold?
In packs of 5 to 25 depending on size and length: for example 25 for M8, 10 for most M10 to M20 lengths, and 5 for M24, the longest lengths and the 7/8 and 1 inch BSW. The size table lists the pack for every length.
I am looking for T-bolt hose clamps. Are these them?
No. These are bolts for T-slots. T-bolt hose clamps are heavy duty band clamps, on our hose clamp page.
Where can I buy T bolts in Adelaide?
Order through Allmat. Order ahead by phone on 1300 03 03 63 or send your list for a quote, then click and collect from 25 Kapara Road, Gillman, or have them delivered to site.
T-Bolt: sizes and finishes we supply
76 lines by type and finish. Pick one above for its product code and pack sizes.
| Type | Finish | Sizes | Lengths | Lines |
|---|---|---|---|---|
| T-head | Steel | M8, M10, M12, M16, M20, M24 | 30 to 230 (17 lengths) | 40 |
| T-head | Steel | 3/8, 1/2, 5/8, 3/4, 7/8, 1 | 1-1/2 to 8 inch (11 lengths) | 36 |
Data sheets and documents
The documents for the product you choose are listed with the selector above. Here is every T-Bolt document from Hobson Engineering.
All T-Bolt documents (4)
Data sheets and technical data (3)
Guides and articles (1)
