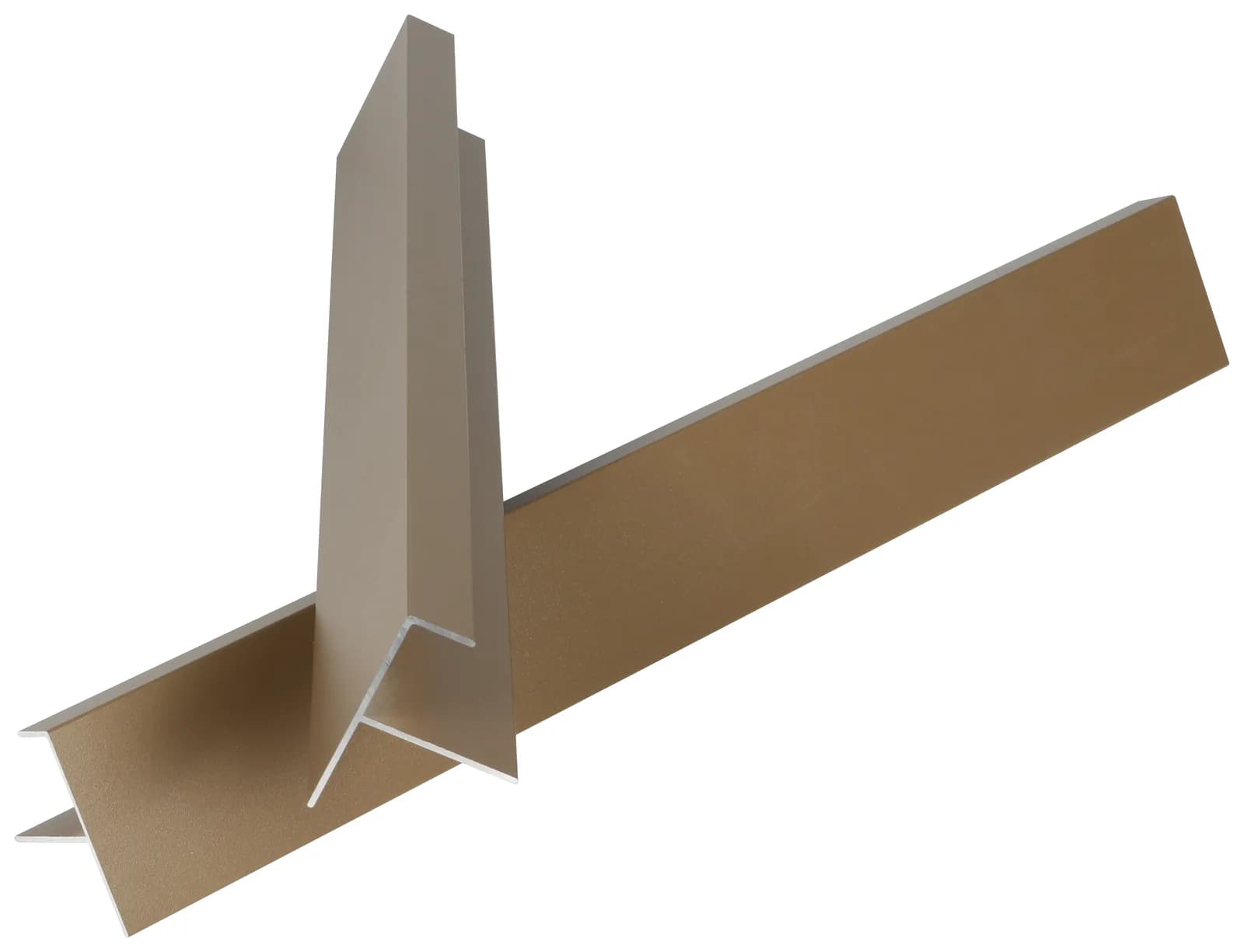

AF-01 trim, Teak
40x54 2.9m. Finishes the open ends of a wall, caps the top and trims round windows and doors. SKU CPAF01TE.29
Composite cladding in stock, Adelaide

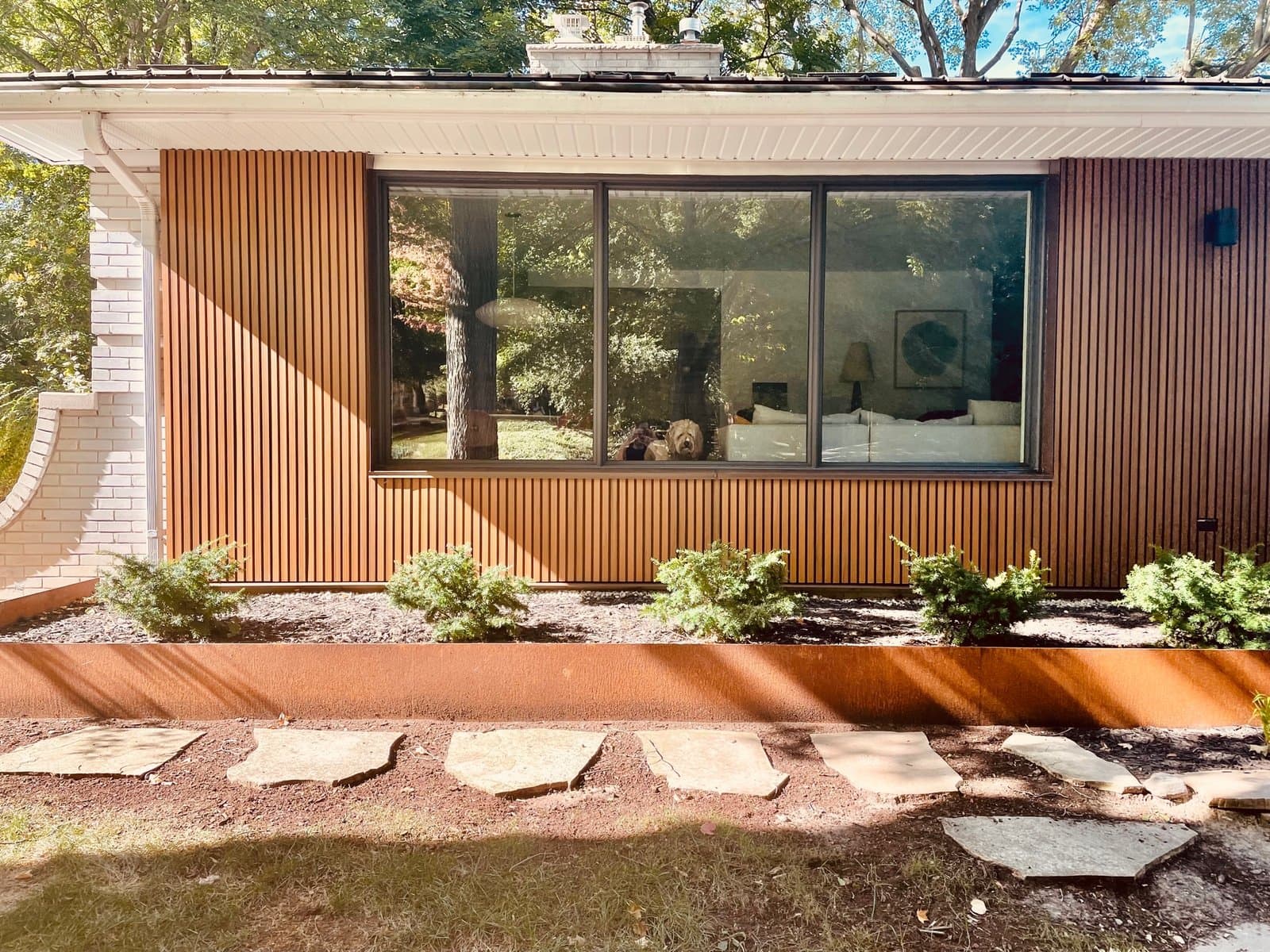

MexyTech Suprotect Engineered Composite Wall Cladding
Timber-look composite cladding for exterior walls, screens and features, in six colours that match the decking. It never needs painting or oiling. Pick your colour, plan every wall in 3D in the free cladding calculator below, and get one quote for the boards, trims, corners and screws.
Delivered Australia-wide, with the trims, corners and screws to finish every wall.
Cladding a house, building them, or specifying them?
Book a session with our composite specialists, at your place, at Allmat or on site. See the colours against your walls, learn how the system goes together, and what your job needs.
Book an insight session
MexyTech Suprotect
Choose your composite cladding colour
Pick a colour and how many boards. Not sure how many? Plan your wall below and it counts them for you.
Colour
The same six colours as the decking, so a deck and the wall behind it can share one finish.

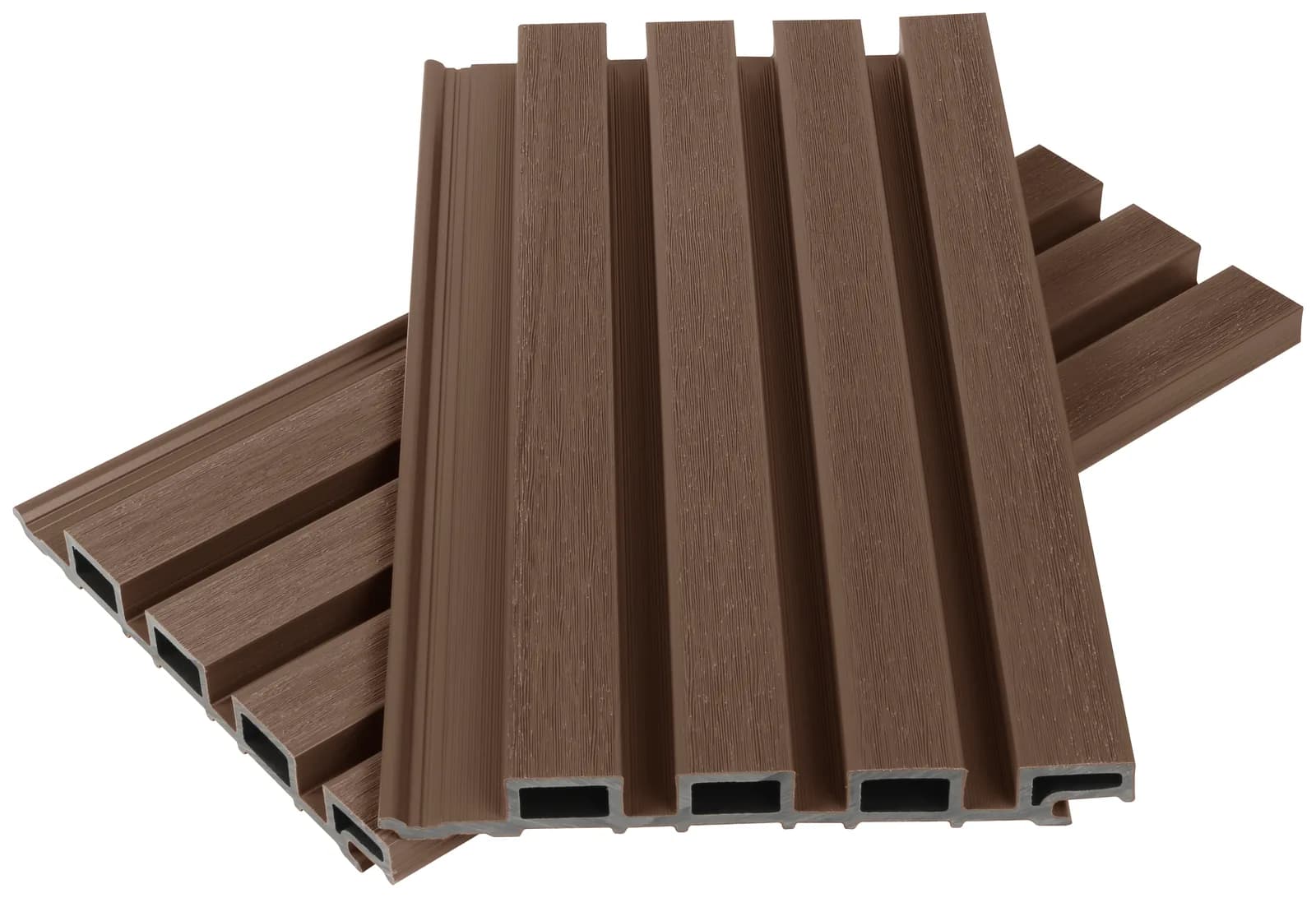

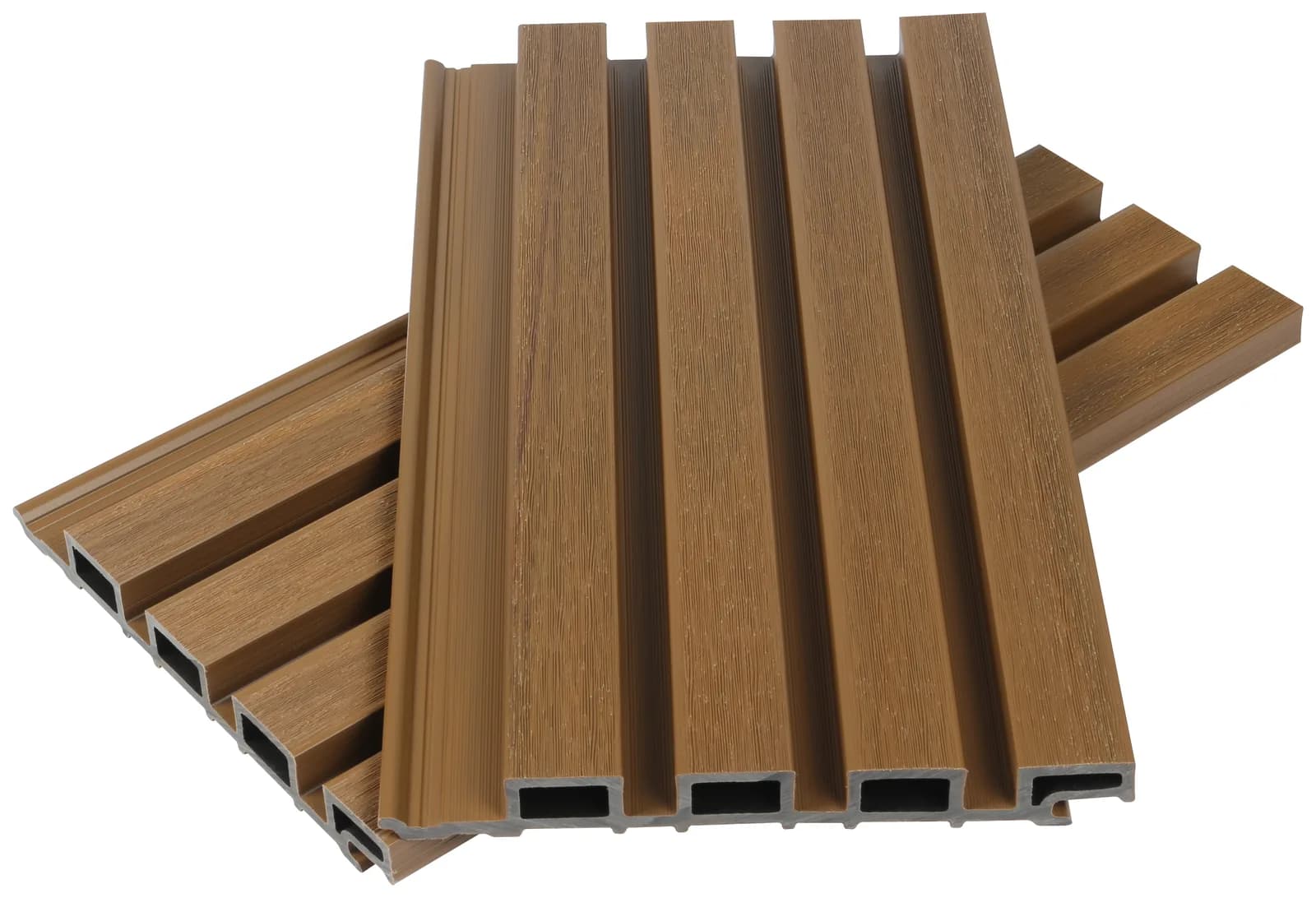

222x25 Mexy Tech Wall Cladding Teak 2.9m
SKU CPWTE22225.29 · sold per board · 200 mm face cover
Adds the trims, corners and screws below too.
Trims, corners and screws
They follow the colour you picked and go on the quote with the boards.

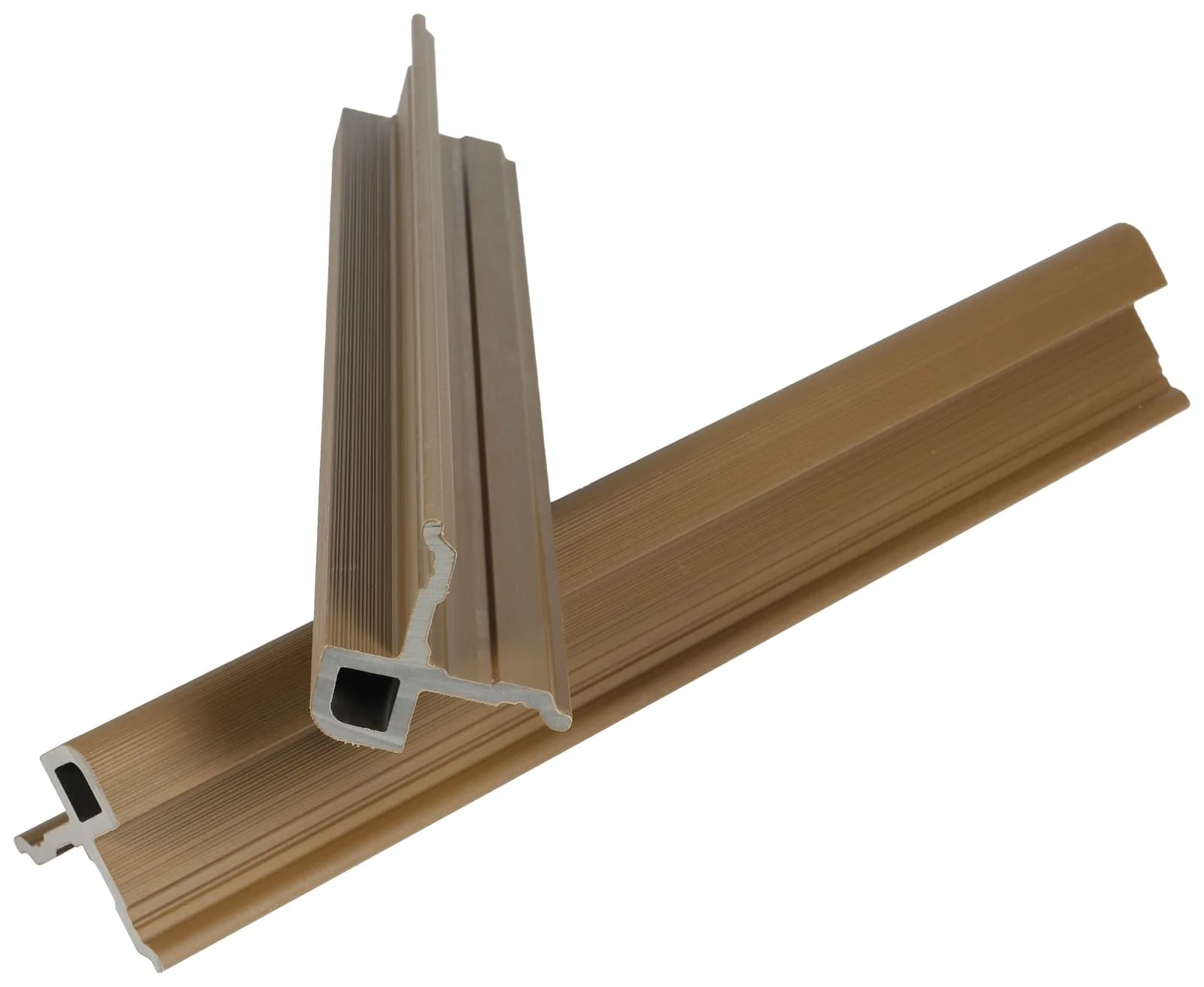

SC-01 external corner, Teak
63x63 2.9m. Wraps each external corner for the wall height. Internal corners need none. SKU CPASC01TE.29
MexyTech wall cladding timber screws 35mm
Carton of 600. One screw per board at every batten. SKU CPAWCS.35
Plan your wall
Set out your walls, their corners, windows and doors, and see them in 3D in your colour. The planner lays every board at 200 mm face cover, staggers the joins on battens, adds the trims and corners, and counts the screws. The list underneath is your quote, product codes and all.
The same planner has its own page too: the MexyTech wall cladding calculator, with boards for common wall lengths.
Loading the planner…
Insight session
Building a deck, installing them or specifying them?
Hold the six colours against the wall they are going on, see the trims and corners in the flesh, and go through the job with someone who knows the system. You leave with sample boards and a plan.
There is a session for home owners, for builders and installers, and for architects and designers. Meet our composite specialists at your place, at Allmat or on site.
Book an insight session222 × 25 MexyTech Suprotect engineered composite cladding
Engineered to last
Every MexyTech board is sealed in a tough outer shell of Surlyn, the same material that protects a golf ball. The harsh Australian sun can't bleach it, and rain and grime stay on the surface instead of soaking in. A buffer bevel on every edge takes up the movement in the heat, so the wall stays straight. No painting, no oiling, ever: a wash is all it needs.
- Size
- 222x25 boards, 2.9 m long
- Face cover
- 200 mm per board
- Colours
- Six, matching the decking
- Fixing
- Screwed through the lip, nothing shows
- Warranty
- 10 years from the maker
- Recycled
- 95% recycled content
Made by MexyTech since 2009. Also sold as WPC (wood plastic composite) cladding.
Colours, trims and corners
Six single-colour boards with a matching AF-01 edge trim and SC-01 external corner in each.

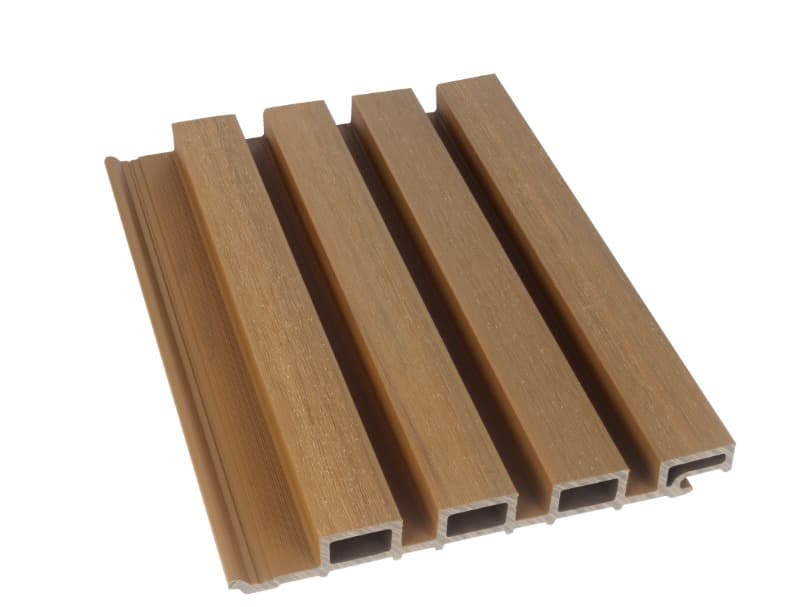

Teak
Board CPWTE22225.29
Trim CPAF01TE.29
Corner CPASC01TE.29

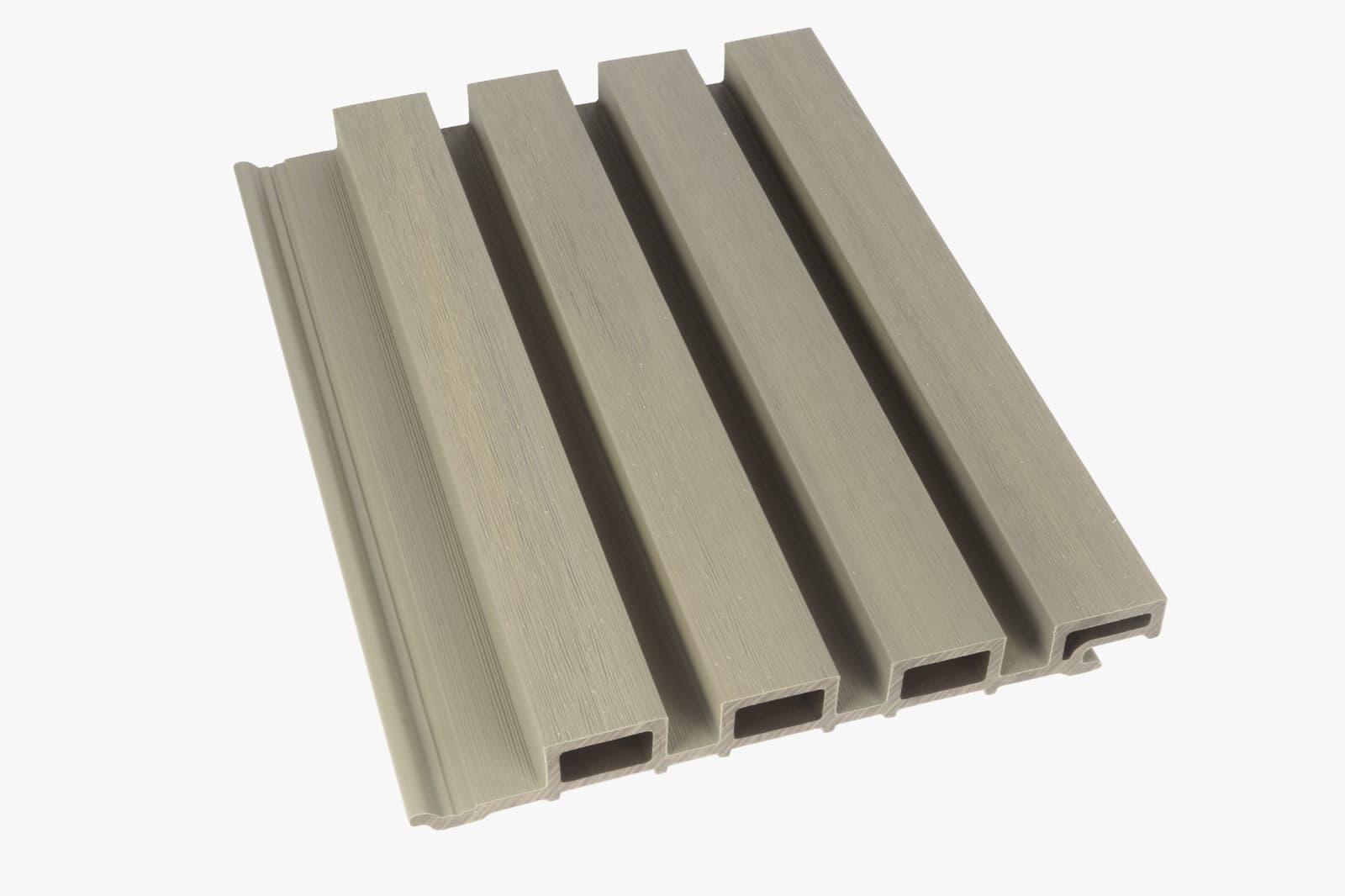

Antique
Board CPWAN22225.29
Trim CPAF01AN.29
Corner CPASC01AN.29

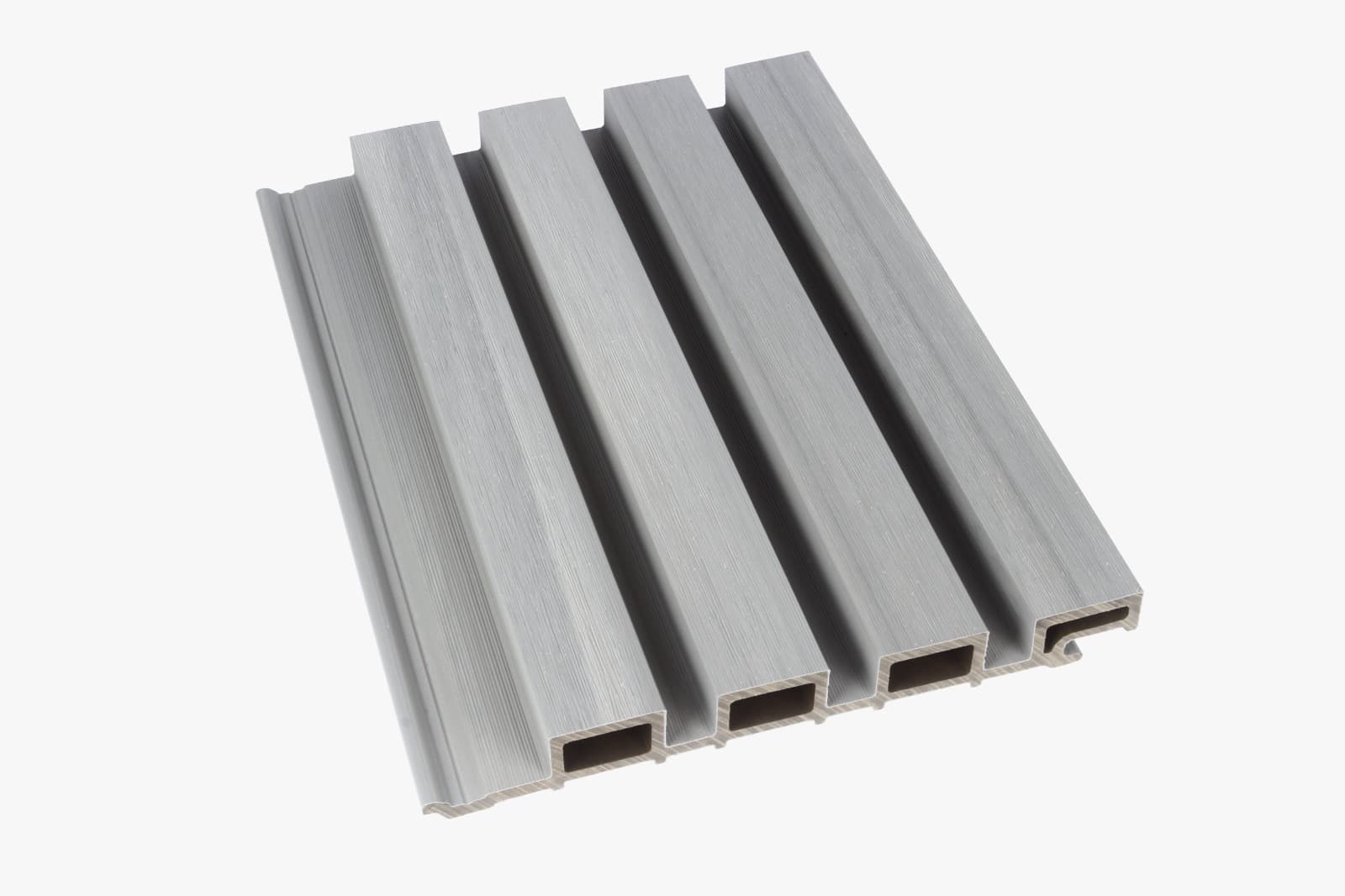

Ashwood
Board CPWAS22225.29
Trim CPAF01AS.29
Corner CPASC01AS.29

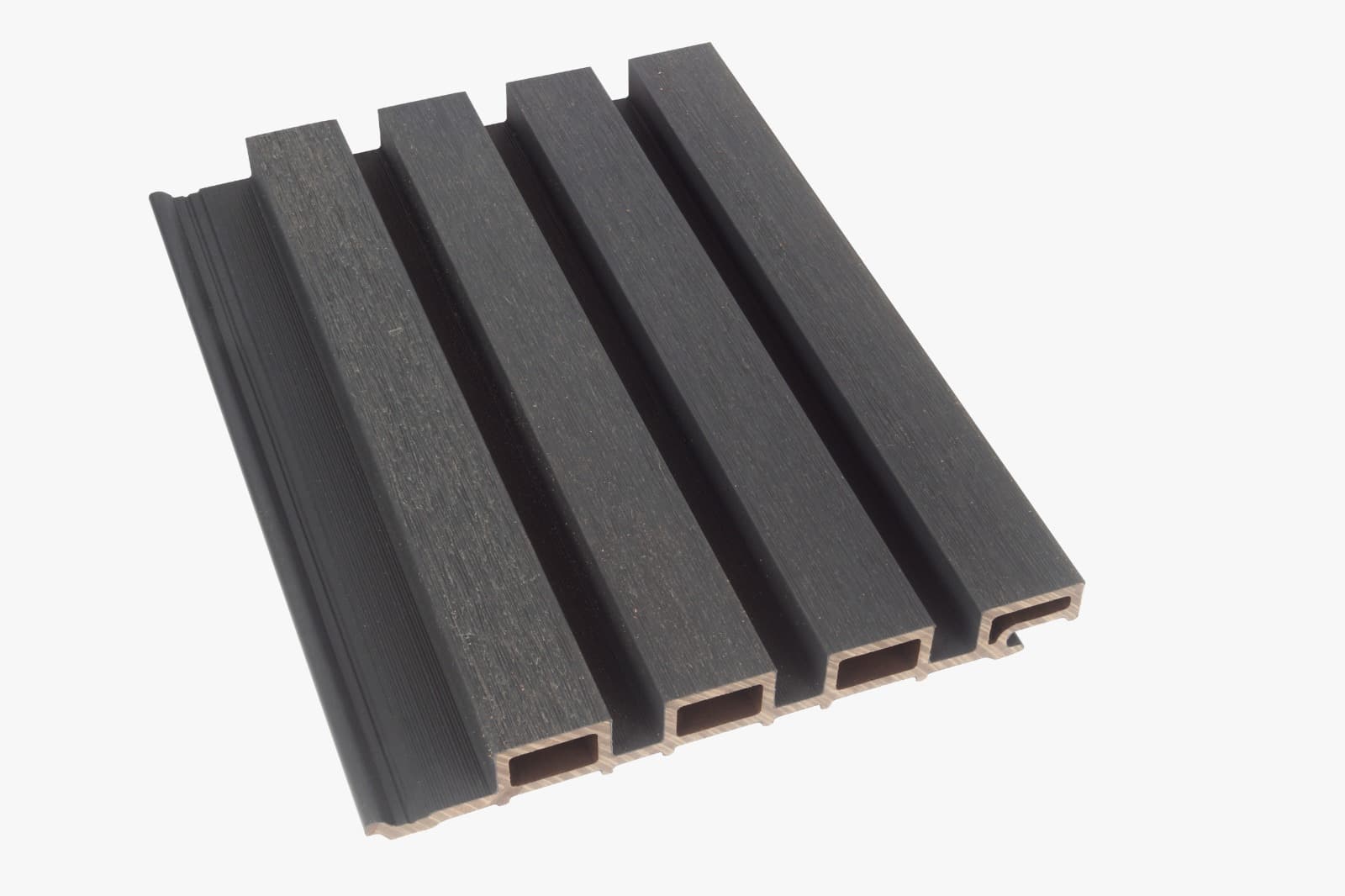

Dark Grey
Board CPWDG22225.29
Trim CPAF01DG.29
Corner CPASC01DG.29

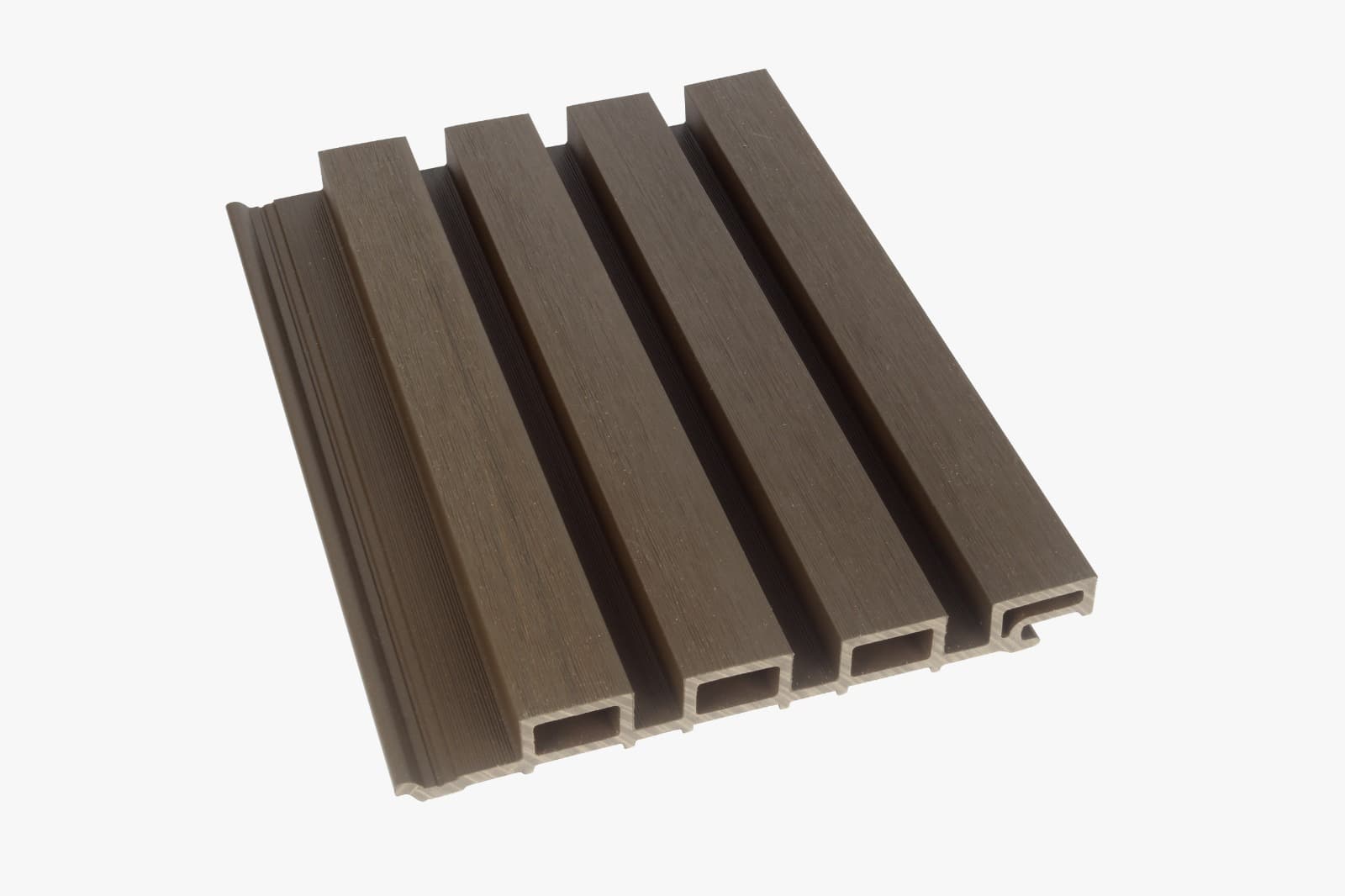

IPE
Board CPWIP22225.29
Trim CPAF01IP.29
Corner CPASC01IP.29

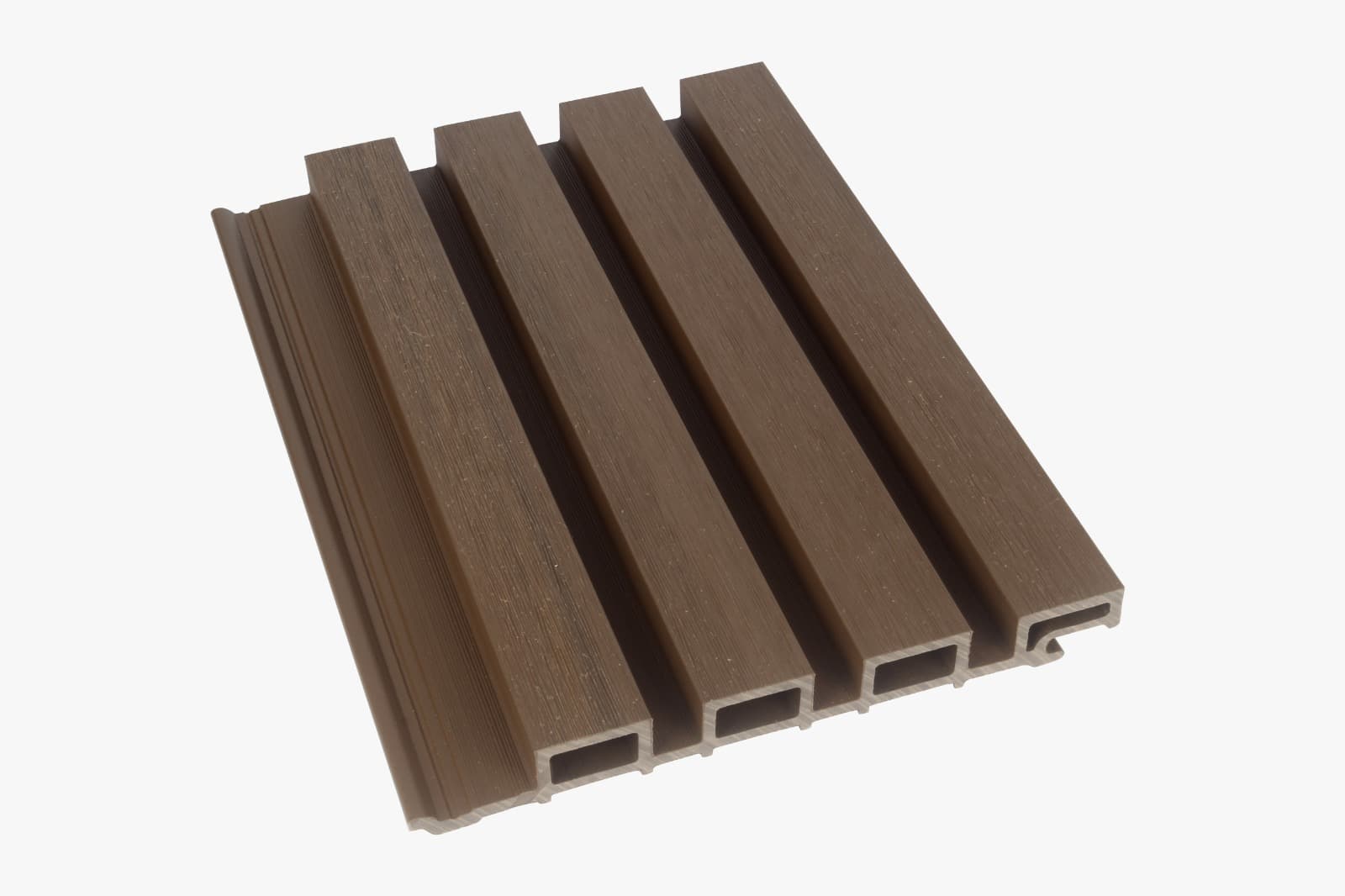

Walnut
Board CPWWA22225.29
Trim CPAF01WA.29
Corner CPASC01WA.29
The board
Suprotect engineered composite battened profile, 222 mm wide, 200 mm face cover, buffer bevel edge so the panels can move with the heat without warping.
AF-01 edge trim
Aluminium trim in the matching colour for the top, bottom and open side edges. Fix it first, then the boards slide in behind it.
SC-01 external corner
A co-extruded corner in the matching colour that wraps an external corner cleanly, one run per corner.
How the wall goes together
Step 1
Battens
Fix the AL02 aluminium battens to the wall at 600 mm centres, fixed every 600 to 800 mm, running across the way the boards will go.
Step 2
Trims and corners
Fix the SC-01 corner trims on the external corners and the AF-01 trims on the open ends first, so the boards have somewhere to land.
Step 3
Boards
Start at the bottom, interlock each board into the last and screw through the lip at every batten. Internal corners just butt. Nothing shows.
Step 4
Finish
Land every join on a batten and stagger them row to row, cap the top with AF-01, and the wall needs no paint, ever.
Cladding installation
Need your composite cladding installed?
We work with a network of installers who put up MexyTech. Book an install insight session: our composite specialists go through your walls with you, the colour, the corners and the layout from the wall planner, then pass it to an installer near you for a quote.
Book an install insight sessionWall cladding questions
The board is 222 mm wide, but once the boards interlock each one covers 200 mm of wall face. So a 2.4 m high wall takes 12 boards per run, not 11, and a 4 m wide wall laid vertically takes 20 runs. The cladding calculator on this page does the arithmetic for you.
Both work. Up and down, a 2.9 m board covers a standard wall with no joins and reads as a battened screen. Across, the way the MexyTech guide shows it, suits long walls; runs longer than one board are joined on a batten, with the joins staggered row to row. The calculator shows both.
Aluminium AL02 battens at 600 mm centres, fixed to the wall every 600 to 800 mm, running across the boards. The boards are screwed through the interlocking lip at every batten so no fixings show, and every join lands on its own batten. The calculator counts the screws for timber or metal battens.
AF-01 finishes the open ends of a wall, caps the top and trims round windows and doors. SC-01 is the external corner trim in the matching colour, one run per corner for the wall height. Internal corners need no trim: one wall’s boards butt into the other’s. Both come in 2.9 m lengths.
Yes. The battens fix to the existing wall and the cladding fixes to the battens, which also gives the wall a ventilated cavity. Tell us the substrate and we will talk through the batten and fixing before you order.
Yes. The six cladding colours are the same six as the decking, so a deck and the wall behind it, or a screen beside it, can share one finish. Fascia and trims match too.
The board has a buffer bevel edge that absorbs thermal movement so panels do not warp, and the same capped surface as the decking, so it never needs painting or oiling.
Yes. MexyTech cladding is in stock at Allmat in Adelaide, and we deliver it anywhere in Australia, or you can collect it. Add it to a quote with your suburb for a delivered price.
Ready to order MexyTech wall cladding?
Add the boards, trims, corners and screws above and we price them on one quote, for delivery or collection from Allmat. Cladding next to a deck? Add the decking on its own page and the two lists sit together in the same quote.
