304 (A2) · Mild Steel
Tee Nut
Four-prong tee nut that installs into timber, composite or particle board to leave a flush or recessed female thread for bolts, machine screws, castors or adjustable feet.
About the Tee Nut
Tee nuts, or t nuts, go into a drilled hole in timber, particle board or composite panel to leave a flush thread for bolts, castors, adjustable feet and furniture fittings. Four prong tee nuts come zinc plated in M4 to M10 and 3/16 to 3/8 inch UNC, and large flange (slab) tee nuts come in 304 stainless in M10 and 3/8 inch UNC. Choose the type and thread above; the guide below covers the hole to drill and fitting.
Also called t nuts or prong tee nuts.
Features
- Four anti-rotation prongs
- Zinc plated, RoHS compliant
- Flush or recessed finish
- Female thread for bolted connections
- Prongs stop twisting in timber
- HEC specification
Applications
- Furniture manufacture
- Castor connections in lounges and office furniture
- Timber, composite and particle board
- Adjustable feet and metal thread screw fixing
How tee nuts work
A tee nut is a threaded barrel with a flat flange on one end. It goes into a hole drilled through timber, particle board or a composite panel, with the flange on the face opposite the bolt, and leaves a flush or recessed female thread. Tightening the bolt pulls the flange against the board.

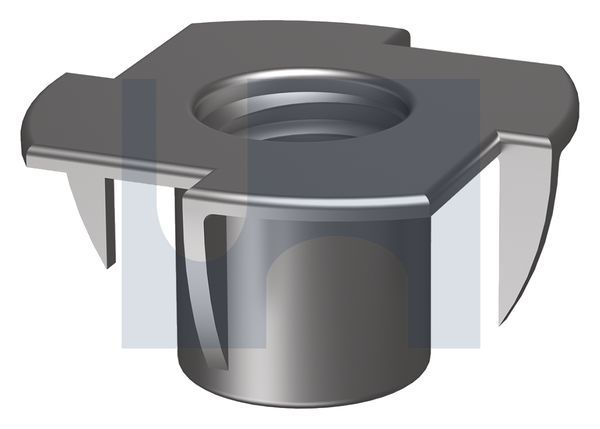

- Four prong tee nut: four prongs on the flange bite into the timber and stop the tee nut twisting and moving. Zinc plated mild steel, for furniture, castors in lounges, office and domestic furniture, adjustable feet and metal thread screw fixings.

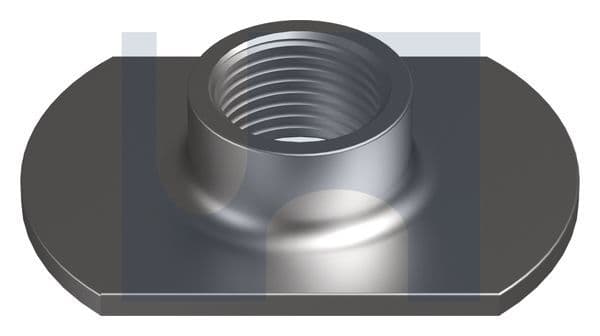

- Slab tee nut (large flange): a large base flange for soft materials that avoids the need for a washer, and a rounded shoulder with no drive recess for tamper resistance. It can be welded to sheet metal. 304 stainless, for outdoor play equipment in plastic, fibreglass, stainless or timber, fixings in public places, and trains, buses and trucks.
Tee nut sizes and the hole to drill
Drill the hole size Hobson lists for each tee nut (hole to drill in the table). Choose the thread to match the bolt or the castor or foot stem, metric or UNC, and a shaft that suits the board thickness. Select a size to open it in the selector.
Every four prong tee nut we carry, metric then imperial, smallest to largest. All dimensions in mm, from Hobson's tee nut data sheet (metric) and dimension tables (imperial). Zinc plated, packs of 200. Tap a number to show it in the selector above.
| Size | Range | Thread | Shaft length H | Flange diameter G | Hole to drill | Prong length A |
|---|---|---|---|---|---|---|
| Metric four prong tee nuts | ||||||
| M4 | Metric | M4 x 0.70 | 8 | 15 | 5.1 | 6 |
| M5 | Metric | M5 x 0.80 | 8 | 17 | 6.1 | 5.8 |
| M6 | Metric | M6 x 1.00 | 9 | 19 | 7.4 | 7 |
| M8 x 11 | Metric | M8 x 1.25 | 11 | 22 | 9.4 | 8 |
| M8 x 17 | Metric | M8 x 1.25 | 17 | 22 | 9.4 | 8 |
| M10 | Metric | M10 x 1.50 | 12 | 25 | 11.4 | 8.5 |
| Imperial (UNC) four prong tee nuts | ||||||
| 3/16 inch | Imperial (UNC) | 3/16-24 UNC | 8 | 17 | 6.1 | 5.8 |
| 1/4 inch | Imperial (UNC) | 1/4-20 UNC | 9 | 19 | 7.4 | 7 |
| 5/16 inch | Imperial (UNC) | 5/16-18 UNC | 11 | 22 | 9.4 | 8 |
| 3/8 inch | Imperial (UNC) | 3/8-16 UNC | 12 | 25 | 11.4 | 8.5 |
Slab tee nuts (large flange)
- M10 and 3/8 inch UNC, 304 (A2) stainless, packs of 100.
- Base flange 25 x 18mm and 2mm thick; threaded shoulder 11.5mm across and 11mm high overall, from Hobson's data sheet. The dimension tables in the selector give 25 x 17.6mm, 11.3mm and 10.8mm for the M10.
- No prongs and no drive recess.
How to fit a tee nut
- Mark the position and drill straight through the board at the hole size in the table.
- For a recessed finish, counterbore the face first to the flange diameter.
- Push the tee nut into the hole from the side opposite the bolt.
- Tap the flange down with a hammer until the prongs are fully in the timber and the flange sits flush or in its recess.
- Fit the bolt, machine screw, castor or adjustable foot from the other side, in the same thread: an M6 tee nut takes an M6 thread, a 1/4 inch tee nut a 1/4 inch UNC thread.
Zinc plated or 304 stainless tee nuts?
- Zinc plated (four prong): a thin, about 5 micron, zinc coating recommended for indoor and non-corrosive conditions.
- 304 stainless (slab): for outdoor play equipment, public places and vehicles. Stainless threads can gall (lock up) if driven fast or overtightened: run the bolt in at a slower speed and lubricate the thread with a molybdenum disulphide based lubricant where you can.
Tee nuts in Adelaide
Allmat supplies tee nuts, insert nuts, connector bolts and machine screws to cabinet makers, furniture makers, joiners and trade across Adelaide and South Australia, along with the sheet and timber. Add them to a quote with the rest of your list, and we will price the lot.
Tee nuts for furniture, castors and panels
Four prong and slab tee nuts, insert nuts and the bolts and machine screws to suit are available to order from Allmat for cabinet makers, furniture makers, joiners, shopfitters and trade across Adelaide and South Australia. Order through Allmat, we pick and pack it, then click and collect from the Allmat yard or have it delivered to site.
Goes with
Questions
What is a tee nut used for?
Putting a female thread into timber, particle board or a composite panel, so a bolt, metal thread screw, castor or adjustable foot can be fitted and removed. Furniture and castor connections in lounges and office furniture are the everyday uses.
Are t nuts and tee nuts the same?
Yes. T nut and tee nut are two spellings of the same part: a threaded barrel with a flange, set into wood or board.
What size hole do I drill for a tee nut?
The hole size Hobson lists: 5.1mm for M4, 6.1mm for M5 and 3/16 inch, 7.4mm for M6 and 1/4 inch, 9.4mm for M8 and 5/16 inch, and 11.4mm for M10 and 3/8 inch four prong tee nuts.
Which tee nut do I need for a castor or adjustable foot?
A four prong tee nut in the same thread as the castor or foot stem, metric or UNC. Check the stem thread before you order, as metric and UNC do not mix.
Can tee nuts be used outdoors?
Use the 304 stainless slab tee nuts outdoors: Hobson lists them for outdoor play equipment and fixings in public places. The zinc plated four prong tee nuts are for indoor work.
How are tee nuts sold?
Four prong tee nuts in packs of 200 and stainless slab tee nuts in packs of 100.
Where can I buy tee nuts in Adelaide?
Order through Allmat. Order ahead by phone on 1300 03 03 63 or send your list for a quote, then click and collect from 25 Kapara Road, Gillman, or have them delivered to site.
Tee Nut: sizes and finishes we supply
12 lines by type and finish. Pick one above for its product code, pack sizes and dimensions.
| Style | Finish | Sizes | Lengths | Lines |
|---|---|---|---|---|
| Prong | Zinc Plated | M4, M5, M6, M8, M10 | 11, 17 | 6 |
| Prong | Zinc Plated | 3/16, 1/4, 5/16, 3/8 | - | 4 |
| Slab | 304 Stainless | M10 | - | 1 |
| Slab | 304 Stainless | 3/8 | - | 1 |
Data sheets and documents
The documents for the product you choose are listed with the selector above. Here is every Tee Nut document from Hobson Engineering.
All Tee Nut documents (7)
Data sheets and technical data (2)
Did You Know flyers (2)
Need them in bulk?
Add the sizes you need to your quote, or send us your list and we’ll price the lot and supply it with the rest of your order.
Browse all nuts
