Galvanised · 316 Stainless

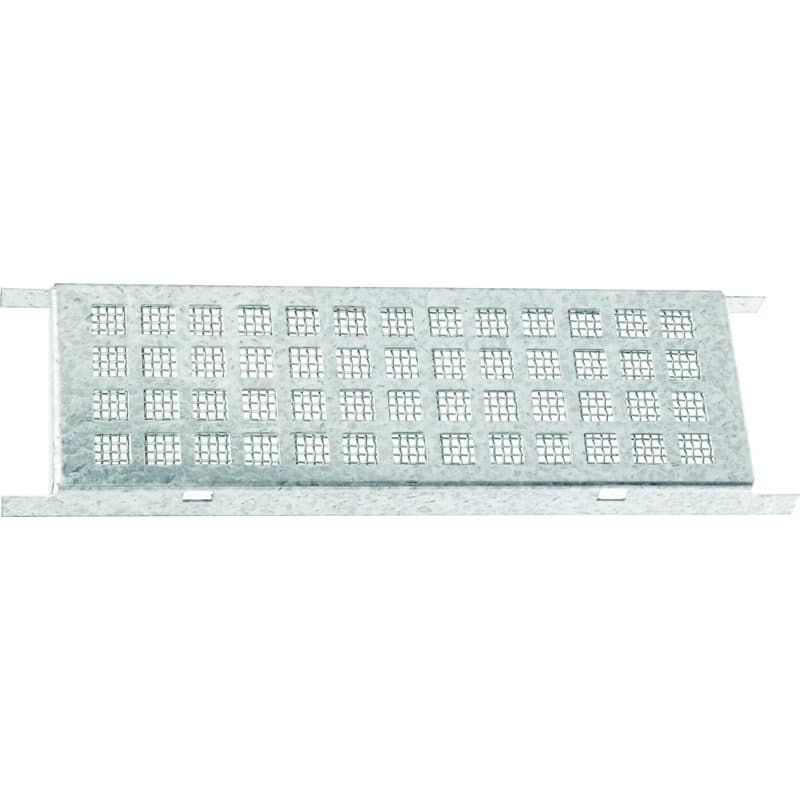

Sub Floor Vents, Anti-Spark (BAL-40 Mesh)
About the Sub Floor Vents, Anti-Spark (BAL-40 Mesh)
VUETRADE Sub Floor Vents, Anti Spark are brick vents built in as the bricks or blocks are laid, fitted with an anti-spark 316 stainless mesh insert (0.9mm wire, 1.64mm aperture) that VUETRADE rates up to and including BAL-40 to AS 3959. For bushfire-prone sites up to and including BAL-40. The mesh cuts the airflow, so size the number of vents on the anti-spark figures. Galvanised in five sizes, and 230 x 76mm in 316 stainless. Cartons of 20.
Features
- Anti-spark 316 stainless mesh insert, 0.9mm wire, 1.64mm aperture
- Mesh rated up to and including BAL-40 (40kW/m2), AS 3959 (VUETRADE)
- Galvanised 190 x 190, 230 x 76, 230 x 76 slim, 230 x 160 and 390 x 190mm; 230 x 76mm in 316 stainless
- Airflow per vent with mesh (VUETRADE): 190 x 190 5,993mm2; 230 x 76 2,576mm2; 230 x 76 slim 3,175mm2; 230 x 160 5,795mm2; 390 x 190 12,531mm2 (the 230 x 76 is about 58% less than the plain vent)
- Size the number of vents to the NCC subfloor ventilation rate (Housing Provisions Table 6.2.1a) using these anti-spark airflows; VUETRADE warns the mesh may restrict the total airflow
- Space evenly, no more than 600mm in from a corner (VUETRADE)
- Built in while laying brick or block
Applications
- Sub floor ventilation on bushfire-prone sites up to and including BAL-40
Sub Floor Vents, Anti-Spark (BAL-40 Mesh): sizes and finishes we supply
6 lines by finish. Pick one above for its product code and pack sizes.
| Finish | Size (mm) | Lines |
|---|---|---|
| Galvanised | 190 x 190mm, 230 x 76mm, 230 x 76mm slim, 230 x 160mm, 390 x 190mm | 5 |
| 316 Stainless | 230 x 76mm | 1 |
Need them in bulk?
Add the sizes you need to your quote, or send us your list and we’ll price the lot and supply it with the rest of your order. Allmat supplies Sub Floor Vents, Anti-Spark (BAL-40 Mesh) across Adelaide and South Australia. Order ahead on 1300 03 03 63.
