Grade 8

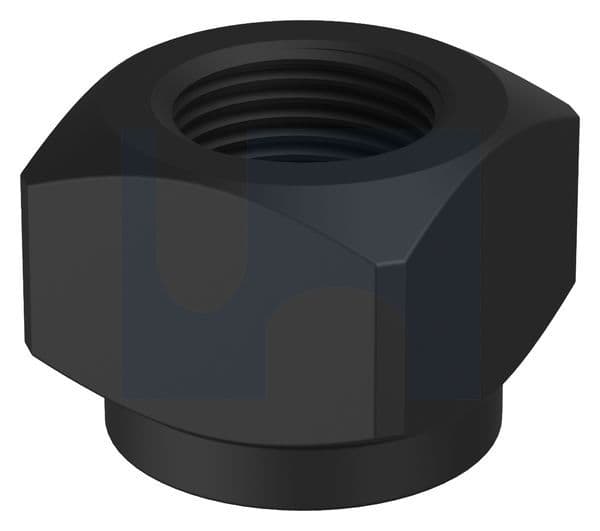

Track Nut
Grade 8 track nuts for the track bolts that hold track shoes on excavators, dozers and other crawler machines.
About the Track Nut
Track nuts take the track bolts that hold the track shoes to the chain on excavators, dozers and other crawler machines. They are grade 8, supplied plain: square track nuts in UNF from 1/2 to 1 inch and metric fine from M14 to M22, plus square round face, square stepped, square collar, hex and hex round face styles up to 1-3/8 inch and M27. Choose the style and size above; the guide below matches each nut to its track bolt and covers the special 1 inch pitch.
Also called track shoe nuts or excavator track nuts.
Features
- Square body
- Grade 8 high strength
- Cold forged
- Plain finish
- HEC specification
- Metric and imperial sizes
Applications
- Excavator, dozer and crawler track shoes
- Replacing nuts on track bolts
- Earthmoving equipment
What a track nut does
A track nut sits in the link of a crawler machine's track chain and takes the track bolt that comes through the track shoe (grouser plate). Hobson lists its grade 8 track nuts with its grade 9 track bolts in the earthmoving range, supplied plain.
These are earthmoving track nuts. They are not the T-slot nuts used in workbench and cargo tracks, and not railway track fastenings (rail joints use fishbolts).
Square, round face, stepped, collar or hex?
The nut style has to suit the pocket in the track link, so match the nut you take off or the machine's parts book. Hobson makes six styles:
- Square: the plain square track nut, in UNF from 1/2 to 1 inch and metric fine from M14 to M22.
- Square round face: a square nut with a rounded face, in 7/8, 1 and 1-1/8 inch UNF and M27 x 2.0.
- Square stepped: a square nut with a step, in 7/8 inch UNF.
- Square collar: a square nut with a collar, in M20 x 1.5.
- Hex: a hex track nut in 1/2 inch.
- Hex round face: a hex nut with a rounded face, in 1-3/8 inch UNF.
Track nut sizes and threads
Every track nut we carry, one row per nut, grouped by style. Select a row to open that nut in the selector.
Diameter in inches (UNF) or metric (fine thread). TPI = threads per inch. Track bolts in that size: the grade 9 track bolts we carry in the same diameter, with their length in mm. The 1/2 inch nuts also carry a 14.2mm (hex) or 15.0mm (square) figure in Hobson's listing, shown as the length option in the selector. Pack is the minimum order. Tap a number to show it in the selector above.
| Style | Diameter | Thread | Track bolts in that size | Pack |
|---|---|---|---|---|
| Square | ||||
| Square | 1/2" | 20 TPI UNF | Dome head 35, 38mm | Packs of 100 |
| Square | 5/8" | 18 TPI UNF | Dome head 51, 55mm | Packs of 100 |
| Square | 3/4" | 16 TPI UNF | Dome head 54, 61mm | Packs of 50 |
| Square | 7/8" | 14 TPI UNF | Dome head 67, 87mm | Packs of 25 |
| Square | 1" | 1-14 (14 TPI; common 1 inch UNF is 12) | Dome head 74, 89mm | Packs of 20 |
| Square | M14 | 1.5mm fine | Hex head 35mm | Packs of 100 |
| Square | M16 | 1.5mm fine | Dome head 46, 55mm | Packs of 100 |
| Square | M18 | 1.5mm fine | Dome head 58mm | Packs of 75 |
| Square | M20 | 1.5mm fine | Dome head 55, 63, 70mm | Packs of 50 |
| Square | M22 | 1.5mm fine | Dome head 67mm | Packs of 25 |
| Square round face | ||||
| Square round face | 7/8" | 14 TPI UNF | Dome head 67, 87mm | Packs of 25 |
| Square round face | 1" | 1-14 (14 TPI; common 1 inch UNF is 12) | Dome head 74, 89mm | Packs of 20 |
| Square round face | 1-1/8" | 12 TPI UNF | Dome head 96mm | Packs of 20 |
| Square round face | M27 | 2.0mm fine | Dome head 90mm | Packs of 20 |
| Square stepped | ||||
| Square stepped | 7/8" | 14 TPI UNF | Dome head 67, 87mm | Packs of 25 |
| Square collar | ||||
| Square collar | M20 | 1.5mm fine | Dome head 55, 63, 70mm | Packs of 50 |
| Hex | ||||
| Hex | 1/2" | 20 TPI UNF | Dome head 35, 38mm | Packs of 100 |
| Hex round face | ||||
| Hex round face | 1-3/8" | 12 TPI UNF | Dome head 109mm | Packs of 10 |
UNF, the 1 inch special pitch and metric fine
All our track nuts have fine threads. The imperial nuts are UNF: 20 TPI on 1/2 inch, 18 on 5/8, 16 on 3/4, 14 on 7/8, and 12 on 1-1/8 and 1-3/8 inch. The 1 inch nuts are 1-14 (14 TPI) to match the 1 inch track bolts. Hobson's bolt chart gives 1 inch UNF as 12 TPI, with 14 TPI in brackets; these track nuts and bolts are the 14 TPI (1-14) version, so a common 12 TPI 1 inch UNF nut or bolt will not mate. The metric nuts are metric fine, 1.5mm pitch from M14 to M22 and 2.0mm on M27.
An imperial nut will not take a metric bolt, so measure the old bolt or check the parts book first.
Grade 8 track nuts and tightening
Every track nut on this page is grade 8 to Hobson's HEC specification, and Hobson pairs them with its grade 9 track bolts. Hobson publishes no proof load, strength or tightening torque figures for track nuts or track bolts, and its grade 9 torque table is for plow bolts only. Tighten track hardware to the torque and procedure in the machine maker's service manual, and replace like with like: same grade, thread, style and size.
Fitting track nuts
- Identify the nut: style, diameter and thread (UNF, 1-14 or metric fine), from the nut you take off or the machine's parts book.
- Clean the threads and the nut seats in the link.
- Fit the track bolt through the shoe and run the track nut on by hand to check the thread matches.
- Tighten in the order and to the torque the machine maker gives.
Plain finish
Hobson supplies its track nuts plain: no coating, lightly oiled to inhibit rust in the packaging and assist installation, the same as its track bolts. There is no galvanised or zinc plated track nut in the range.
Track nuts in Adelaide
Allmat supplies track nuts, track bolts, plow bolts and plow nuts to earthmoving contractors, plant operators and fitters across Adelaide and South Australia. Add the nuts to a quote with the bolts, and we will price the lot.
Track nuts for your machines
Track nuts, track bolts, plow bolts and plow nuts are available to order from Allmat for earthmoving contractors, plant operators, hire fleets, fitters and trade across Adelaide and South Australia. Order through Allmat, we pick and pack it, then click and collect from the Allmat yard or have it delivered to site.
Goes with
Questions
What is a track nut?
The nut that sits in the track chain link of a crawler machine and holds the track bolt that fixes the track shoe. Ours are grade 8, fine thread and supplied plain, in square, square round face, square stepped, square collar, hex and hex round face styles.
What thread do track nuts have?
A fine thread. Our imperial track nuts are UNF, from 20 TPI on 1/2 inch to 12 TPI on 1-1/8 and 1-3/8 inch, except the 1 inch nuts, which are 1-14 (14 TPI) to suit the 1 inch track bolts. Our metric track nuts are 1.5mm pitch from M14 to M22 and 2.0mm on M27.
Will a standard 1 inch UNF nut fit a 1 inch track bolt?
No. The 1 inch track bolts and nuts are the 14 TPI (1-14) version. Hobson's bolt chart gives 1 inch UNF as 12 TPI, with 14 TPI in brackets, and the common 12 TPI nut will not mate. Use the 1 inch track nut, square or square round face.
What torque for track nuts?
Use the torque and procedure in the machine maker's service manual. Hobson publishes no torque figures for track nuts or track bolts.
Which track nut style do I need?
The one that suits the pocket in your track link: match the nut you take off or the machine's parts book. The styles are square, square round face, square stepped, square collar, hex and hex round face.
Do you have track bolts to suit?
Yes. Our grade 9 track bolts come in dome head hex and hex head, in every diameter we make track nuts in, plus 9/16 inch bolts. The size table shows the bolts in each nut size.
Where can I buy track nuts in Adelaide?
Order through Allmat. Order ahead by phone on 1300 03 03 63 or send your list for a quote, then click and collect from 25 Kapara Road, Gillman, or have them delivered to site.
Track Nut: sizes and finishes we supply
18 lines by type and finish. Pick one above for its product code and pack sizes.
| Style | Finish | Sizes | Lengths | Lines |
|---|---|---|---|---|
| Standard | Steel | M14, M16, M18, M20, M22 | - | 5 |
| Standard | Steel | 1/2, 5/8, 3/4, 7/8, 1 | 15.0mm | 5 |
| Round face | Steel | 7/8, 1, 1-1/8 | - | 3 |
| Collar | Steel | M20 | - | 1 |
| Round face | Steel | M27 | - | 1 |
| Hex round face | Steel | 1-3/8 | - | 1 |
| Hex | Steel | 1/2 | 14.2mm | 1 |
| Stepped | Steel | 7/8 | - | 1 |
Data sheets and documents
The documents for the product you choose are listed with the selector above. Here is every Track Nut document from Hobson Engineering.
All Track Nut documents (3)
Data sheets and technical data (2)
Guides and articles (1)
Need them in bulk?
Add the sizes you need to your quote, or send us your list and we’ll price the lot and supply it with the rest of your order.
Browse all nuts
