Class 8.8

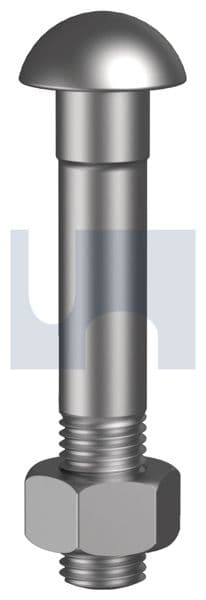

Fishbolt
Class 8.8 fishbolts and nuts to AS 1085.4 for clamping the fishplates on railway track joints.
About the Fishbolt
Fishbolts clamp the fishplates that join two lengths of railway track. Ours are plain class 8.8 to AS 1085.4, M24 x 140mm with a 50mm M24 x 3.0 thread, in packs of 10, as a fishbolt and nut, or as a fishbolt, nut and spring washer (AS 1085.4/7). Choose the assembly above; the guide below covers which assembly to order, sizes and tightening.
Also called fish bolts, rail bolts or rail joint bolts.
Features
- Manufactured to AS1085.4
- Plain finish
- High-tensile
- M24 size
- Supplied with nut
Applications
- Railway track fishplate joints
- Rail joint connections
- Track maintenance and construction
- Rail infrastructure
What fishbolts do
A fishbolt clamps the fishplates (joint bars) either side of the rail web at a bolted rail joint, holding the two rail ends in line. Hobson lists its fishbolts in its high-tensile range, made to AS 1085.4, property class 8.8, supplied plain, with the nut or with the nut and a spring washer.
These are railway fishbolts. They are not the earthmoving track bolts that hold track shoes to the chain on excavators and dozers, which have their own page.
Which assembly to order
- Fishbolt and nut: M24 x 140mm fishbolt with its nut, to AS 1085.4, class 8.8.
- Fishbolt, nut and spring washer: the same bolt and nut with a spring washer, listed to AS 1085.4/7 (AS 1085.7 covers the washer).
- The M24 AS 1085.7 washer is also available on its own in packs of 100: Hobson lists it as a spring washer (described as a hard washer), plain.
- Use the assembly your track owner or rail network specifies, and replace like with like: same standard, size, class and washer arrangement.
Fishbolt sizes
Both fishbolt assemblies we carry. Select a row to open it.
From Hobson's stocklist and Did You Know sheet 1609041DYK. Diameter x length and thread length in mm; M24 x 3.0 = 24mm diameter, 3.0mm pitch (metric coarse). Pack weight is for a pack of 10 assemblies. Packs of 10 are the minimum order. Tap a number to show it in the selector above.
| Assembly | Size | Thread | Thread length | Standard | Class | Pack | Pack weight |
|---|---|---|---|---|---|---|---|
| Fishbolt and nut | M24 x 140mm | M24 x 3.0 | 50mm | AS 1085.4 | 8.8 | Packs of 10 | 8.91kg |
| Fishbolt, nut and spring washer | M24 x 140mm | M24 x 3.0 | 50mm | AS 1085.4/7 | 8.8 | Packs of 10 | 9.78kg |
Tightening and track work
Hobson publishes no tightening torque or bolt tension for its fishbolts. Tighten fishbolts to the torque and procedure in the track owner's or rail network's standards, and do track work under that network's safeworking rules. Check bolted joints on the schedule the track owner sets.
Plain finish
Both assemblies are supplied plain. Hobson's finish comparison describes plain as no added coating, supplied lightly oiled to inhibit rust in the packaging and to help installation. Hobson lists no galvanised or zinc plated fishbolts, so if your specification calls for a coating, ask us before you order.
Fishbolts in Adelaide
Allmat supplies fishbolt assemblies and rail spring washers to rail contractors, track maintainers and industrial sites across Adelaide and South Australia. Send us the specification and quantity, and we will price the lot.
Fishbolts for rail joints
Fishbolt assemblies and M24 rail spring washers are available to order from Allmat for rail contractors, track maintainers, industrial sidings and trade across Adelaide and South Australia. Order through Allmat, we pick and pack it, then click and collect from the Allmat yard or have it delivered to site.
Goes with
Questions
What is a fishbolt?
A bolt that clamps the fishplates (joint bars) to the rails at a bolted rail joint. Ours are M24 x 140mm, class 8.8, made to AS 1085.4 and supplied plain, with a nut or with a nut and spring washer.
Is a fishbolt the same as a track bolt?
No. Fishbolts join rails at a fishplate joint. Track bolts hold track shoes to the chain on crawler machines such as excavators and dozers; they are on their own page.
What size fishbolts do you have?
M24 x 140mm with a 50mm M24 x 3.0 thread, as a fishbolt and nut, or as a fishbolt, nut and spring washer.
What standard are your fishbolts made to?
AS 1085.4 for the bolt and nut, property class 8.8. The assembly with a spring washer is listed to AS 1085.4/7, with the washer to AS 1085.7.
What torque for fishbolts?
Use the torque and procedure in the track owner's or rail network's standards. Hobson publishes no tightening torque for its fishbolts.
Can I buy the AS 1085.7 washer separately?
Yes. The M24 AS 1085.7 washer comes plain in packs of 100.
How many come in a pack?
Packs of 10 assemblies. A pack of fishbolts and nuts weighs 8.91kg, and a pack with spring washers 9.78kg.
Where can I buy fishbolts in Adelaide?
Order through Allmat. Order ahead by phone on 1300 03 03 63 or send your list for a quote, then click and collect from 25 Kapara Road, Gillman, or have them delivered to site.
Fishbolt: sizes and finishes we supply
2 lines by type and finish. Pick one above for its product code and pack sizes.
| Type | Finish | Sizes | Lengths | Lines |
|---|---|---|---|---|
| Fishbolt | Steel | M24 | 140 | 2 |
Data sheets and documents
The documents for the product you choose are listed with the selector above. Here is every Fishbolt document from Hobson Engineering.
All Fishbolt documents (5)
Data sheets and technical data (3)
Did You Know flyers (1)
Guides and articles (1)
