Security Recess Plug (Torx)
Zinc plated security recess plugs with a Torx drive (T30, T40) that sit in an anchor recess to stop tampering.
About the Security Recess Plug (Torx)
LB01 recess plugs are hammered into the Torx head of an anchor or screw once it is in, so no driver can grip it, for public seating, signs, bollards, playground and park furniture where fixings must not be undone. They are zinc plated carbon steel, T30 (packs of 100) or T40 (packs of 50); Hobson says they render the fastener tamper proof. Choose the Torx size above; the guide below covers sizes, fitting and the other security fixings.
Also called Torx security plugs, anti-tamper plugs or security recess plugs.
Features
- Zinc plated carbon steel
- Torx T30 and T40 drives
- Security recess plug design
- Deters vandalism and theft
- Anti-tamper plug available for added security
Applications
- Signs, seating and bins in public places
- Park and playground furniture
- Anti-theft fixing of fixtures and fittings
What a security recess plug does

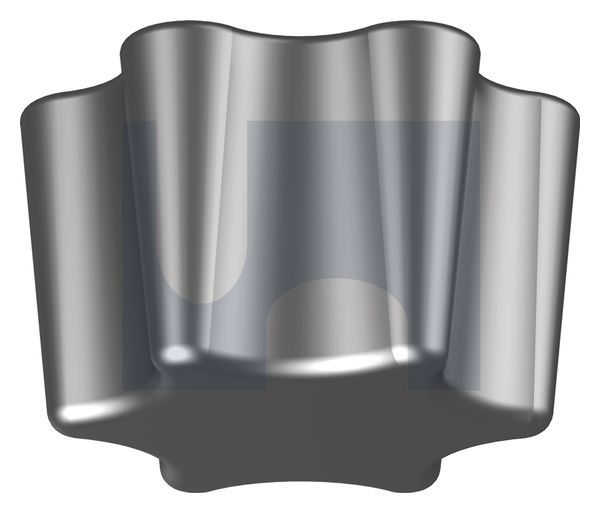

Hobson describes the LB01 as an anti-tamper plug that is installed after the anchor or screw is fitted. It is a small six-lobed carbon steel plug shaped to the Torx recess. You install the fastener as normal, then hammer the plug into its Torx drive. The plug seals the recess, so a Torx bit has nothing to grip, which Hobson says renders the fastener tamper proof.
Hobson lists it for fasteners whose heads are accessible to the public, as a means to deter or prevent vandalism and theft: installations in public areas, children's playground equipment, trains and buses, prisons and schools, for builders, carpenters, plumbers and electricians. Hobson's flyer pictures it alongside its T40 Torx washer head Type 17 screw (T9PWTGO range).
Hobson publishes no removal method for the plug, so plan for it to stay in. Where a fixing has to come out for maintenance, a pin Torx, pin hex or snake-eye security drive that the matching bit can undo is the better choice.
Recess plug sizes
Match the plug to the Torx size of the fastener's recess: a T30 plug for a T30 recess, a T40 plug for a T40 recess. Select a row to open that size in the selector.
Every LB01 recess plug we carry. Dimensions in mm from Hobson's LB01 data sheet: diameter D across the lobes and height H. Zinc plated carbon steel. Pack is the minimum order quantity. Tap a number to show it in the selector above.
How to fit a recess plug
- Install the anchor or screw first, fully tightened, with its Torx drive.
- Line the lobes of the plug up with the lobes of the Torx recess.
- Set it with a hammer: Hobson describes it as an easy hammer-set installation. Drive it in until it is seated in the recess.
Zinc plated: what that means outdoors
The plugs are zinc plated (RoHS compliant). Hobson's finish comparison puts zinc plating at about 5 microns with low corrosion resistance, recommended for indoor and non-corrosive environments. Hobson's corrosion guide calls for stainless steel or hot dip galvanising on fixings that are exposed to the weather. On exposed outdoor fixtures, expect the plug finish to weather like any other zinc plated part; ask us if you need a stainless security fixing for an exposed or coastal position.
Recess plug or security screw?
- Recess plug: turns an ordinary Torx anchor or screw into one with no drive to grip. Suits a fixing that should never come out.
- Security screws in 304 stainless: pin Torx, pin hex and snake-eye drives can be undone with the matching bit; one-way screws, like the plug, are meant to stay in.
- Pin Torx barrel nuts and the pin Torx socket bits and keys that drive them are on their own pages.
Security recess plugs in Adelaide
Allmat supplies LB01 security recess plugs, security screws and the bits to drive them to builders, carpenters, plumbers, electricians and councils across Adelaide and South Australia. Add them to a quote with the anchors or screws they go in and we will price the lot.
Security recess plugs and anti-vandal fixings
LB01 security recess plugs, security screws, pin Torx barrel nuts and the bits to drive them are available to order from Allmat for builders, carpenters, plumbers, electricians, councils and trade across Adelaide and South Australia. Order through Allmat, we pick and pack it, then click and collect from the Allmat yard or have it delivered to site.
Goes with
Questions
What is a security recess plug?
A small steel plug shaped like a Torx recess that you hammer into the drive of an anchor or screw after it is installed. It seals the recess so a bit cannot grip it, which Hobson says makes the fastener tamper proof.
Which plug do I need?
The one that matches the Torx size of the fastener: T30 plugs for a T30 recess (5.8mm across, 4.2mm high) or T40 plugs for a T40 recess (6.8mm across, 4.7mm high).
How do you install a Torx security plug?
Fit and tighten the anchor or screw first, line the plug up with the Torx recess, then tap it in with a hammer until it is seated.
Can a recess plug be removed?
Hobson publishes no removal method, so treat it as permanent. If the fixing will need to come out for maintenance, use a security screw with a pin Torx, pin hex or snake-eye drive and keep the matching bit. One-way screws are made not to come out.
Where are security plugs used?
Hobson lists public areas, children's playground equipment, trains and buses, prisons and schools: anywhere the head of a fastener is within reach of the public.
How many come in a pack?
T30 plugs come in packs of 100 and T40 plugs in packs of 50.
Where can I buy security recess plugs in Adelaide?
Order through Allmat. Order ahead by phone on 1300 03 03 63 or send your list for a quote, then click and collect from 25 Kapara Road, Gillman, or have them delivered to site.
Security Recess Plug (Torx): sizes and finishes we supply
2 lines by finish. Pick one above for its product code and pack sizes.
| Finish | Sizes | Lines |
|---|---|---|
| Zinc Plated | T30, T40 | 2 |
Data sheets and documents
The documents for the product you choose are listed with the selector above. Here is every Security Recess Plug (Torx) document from Hobson Engineering.
All Security Recess Plug (Torx) documents (4)
Data sheets and technical data (2)
Did You Know flyers (1)
Guides and articles (1)
