Security Torx Bit (Pin Torx)

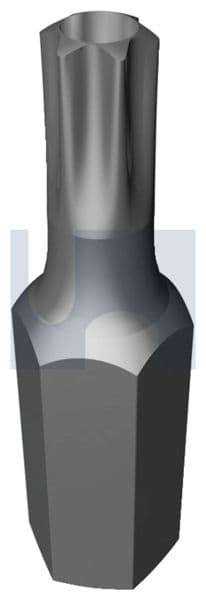

Security driver bit with a pin (post) Torx tip for driving tamper-resistant post-Torx socket fasteners.
About the Security Torx Bit (Pin Torx)
Security Torx bits have a hole in the tip to clear the pin in a pin Torx security screw, for fitting and removing tamper resistant screws and barrel nuts on signs, playgrounds and public fittings. Hobson calls them post Torx socket bits; they come in T10, T15, T20, T25, T27, T30, T40, T45 and T50, plain steel, sold individually. Choose the T size above; the guide below shows which of our security screws and barrel nuts each bit drives.
Also called pin Torx security bits, tamper proof Torx drivers or post Torx bit sockets.
Features
- Post-Torx (pin Torx) bit tip
- Suits tamper-resistant Torx screws
- T10 to T50 range
- Plain finish
- Stainless fastener range
Applications
- Driving pin-Torx security screws
- Removing tamper-resistant fixings
- Fixings in public facilities
- Security fastener maintenance
What a security Torx bit is
A pin Torx (post Torx) security screw has a six-point star (Torx) recess with a pin standing up in the middle. An ordinary Torx bit will not go in. A security Torx bit has a hole bored in the centre of its tip that clears the pin, so it fits the recess and turns the screw. Hobson says the Torx star increases the torque you can apply, prevents cam out and helps the fastener last.
Our bits are plain steel with a hex shank, sold individually. Hobson also makes the same drive as an L-shaped socket key, linked below, for places a driver will not reach.
Which security Torx bit for which screw
The T size follows the screw's thread size and head, so check both. A #10 self-tapping screw takes T25 with a button head but T20 with a countersunk head, and a #14 takes T27 (button) or T30 (countersunk). The T size is also printed in the description of every pin Torx screw and barrel nut we carry. Select a row to open that bit in the selector.
Each security Torx bit we carry and the pin Torx fasteners in our range that it drives, from the T size in Hobson's descriptions and data sheets. Self-tapping screws are gauge sizes (#); machine screws and barrel nuts are metric (M) or 3/8 UNC. Screws are 304 stainless unless noted. Bits are sold individually. Tap a number to show it in the selector above.
| Bit | Drives these pin Torx fasteners |
|---|---|
| T10 | #6 self-tapping screws (button and countersunk); M3 machine screws (button and countersunk) |
| T15 | #8 self-tapping screws (button and countersunk) |
| T20 | #10 countersunk self-tapping screws; M4 machine screws (button and countersunk); M4 countersunk barrel nuts (316) |
| T25 | #10 button self-tapping screws; M5 machine screws (button and countersunk); M5 button barrel nuts (304) and M5 countersunk barrel nuts (316); #10-16 x 25 button head self-drilling metal screws (410 stainless) |
| T27 | #14 button self-tapping screws |
| T30 | #14 countersunk self-tapping screws; M6 machine screws (button and countersunk); M6 button barrel nuts (304) and M6 countersunk barrel nuts (316) |
| T40 | M8 machine screws (button and countersunk); M8 button barrel nuts (304) and M8 countersunk barrel nuts (316) |
| T45 | M10 button machine screws; 3/8 UNC button machine screws; M10 button barrel nuts (304), M10 countersunk barrel nuts (316) and 3/8 UNC button barrel nuts |
| T50 | M12 button machine screws |
Quick list for pin Torx machine screws
- Button head: M3 T10, M4 T20, M5 T25, M6 T30, M8 T40, M10 T45, M12 T50, 3/8 UNC T45.
- Countersunk head: M3 T10, M4 T20, M5 T25, M6 T30, M8 T40.
- Barrel nuts (the female half of a two-way security fixing): M5 T25, M6 T30, M8 T40, M10 T45, 3/8 UNC T45, and the 316 countersunk M4 T20.
Using a security Torx bit
- Match the T size to the screw (table above). A smaller bit will round out the recess.
- Seat the bit fully, so the pin sits inside the hole in the tip, and keep the bit in line with the screw.
- Drive at a steady, moderate speed and stop when the head is snug. Stainless security screws can gall if driven too fast or overtightened; Hobson suggests a slower speed and a molybdenum disulphide based thread lubricant.
- Keep the bits secure. Pin Torx screws stop casual tampering; anyone with the matching bit can still remove them.
Where pin Torx screws are used
Hobson lists its pin Torx screws for outdoor play equipment, fixings in public facilities, and trains and buses, and the barrel nuts for timber connections, playground equipment and furniture. Other common uses are signs, toilet partitions, number plates and anything worth stealing. Order the bit with the screws: without it you cannot fit them, or take them out later.
Security Torx bits in Adelaide
Allmat supplies security Torx bits, pin Torx security screws and barrel nuts to councils, sign makers, maintenance crews, builders and trade across Adelaide and South Australia. Add the bits to a quote with the screws, and we will price the lot.
Security Torx bits with the screws they drive
Pin Torx security bits, security screws and barrel nuts are available to order from Allmat for councils, sign makers, playground and facility maintenance crews, builders and trade across Adelaide and South Australia. Order through Allmat, we pick and pack it, then click and collect from the Allmat yard or have it delivered to site.
Goes with
Questions
What is a security Torx bit?
A Torx bit with a hole in the centre of its tip, so it fits over the pin in a pin Torx (tamper resistant Torx) screw. Ours come in T10, T15, T20, T25, T27, T30, T40, T45 and T50.
What size security Torx bit do I need?
It depends on the screw size and head: for button head machine screws M3 is T10, M4 T20, M5 T25, M6 T30, M8 T40, M10 T45 and M12 T50. Self-tapping screws differ by head, such as #10 button T25 and #10 countersunk T20. The full list is in the table.
What is the difference between pin Torx and post Torx?
Nothing: they are two names for the same drive, a Torx star with a pin in the centre. Hobson calls it post Torx; it is also called security Torx or tamper resistant Torx.
Why will my normal Torx bit not fit?
The pin in the centre of a security screw blocks a solid Torx bit. You need a security Torx bit of the same T size, which has a hole for the pin.
Is there a security Torx key instead of a bit?
Yes. Pin Torx socket keys (L keys) come in the same T10 to T50 sizes, for places where a driver will not fit.
How are the bits sold?
Individually, one bit per T size. Add the bit to the order with the security screws.
Where can I buy security Torx bits in Adelaide?
Order through Allmat. Order ahead by phone on 1300 03 03 63 or send your list for a quote, then click and collect from 25 Kapara Road, Gillman, or have them delivered to site.
Security Torx Bit (Pin Torx): sizes and finishes we supply
9 lines by finish. Pick one above for its product code and pack sizes.
| Finish | Sizes | Lines |
|---|---|---|
| Steel | T10, T15, T20, T25, T27, T30, T40, T45, T50 | 9 |
Data sheets and documents
The documents for the product you choose are listed with the selector above. Here is every Security Torx Bit (Pin Torx) document from Hobson Engineering.
All Security Torx Bit (Pin Torx) documents (3)
Data sheets and technical data (2)
Guides and articles (1)
