LVL
Structural laminated veneer lumber: E-Beam and SmartLVL beams, E10 framing and LVL I-joists, in Adelaide and South Australia.
What are LVLs and what are they used for?

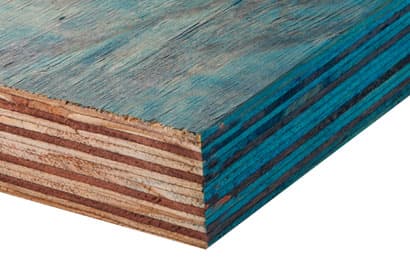

LVL, or Laminated Veneer Lumber, is engineered structural timber. Thin timber veneers are bonded together with a waterproof adhesive, with the grain of every veneer running lengthways, then pressed into long, straight beams. Because the natural defects in timber are dispersed through the veneers, every length performs to the same engineered rating, made to the Australian Standard AS/NZS 4357.
That makes LVL straighter, stronger and more consistent than sawn timber, with a high strength-to-weight ratio and long lengths, so it spans further with fewer joins and fewer rejects on site. It is used for beams, lintels, bearers and rafters, for straight wall and floor framing, and for long-span floor and roof joists. We carry it across the E-Beam, SmartLVL, Smart10, Spec Frame and Spec Joist ranges, in beams, framing and joists.
LVL Beams: E-Beam & SmartLVL (E13.2)
E13.2 structural LVL for beams, lintels, bearers and rafters, in H2S for internal use and H3 for outside above the ground.
Wesbeam E-Beam E13.2
45mm
- 90 × 45 LVL H2 E-Beam E2S
- 130 × 45 LVL H2 E-Beam E2S
- 150 × 45 LVL H2 E-Beam E2S
- 170 × 45 LVL H2 E-Beam E2S
- 200 × 45 LVL H2 E-Beam E2S
- 240 × 45 LVL H2 E-Beam E2S
- 300 × 45 LVL H2 E-Beam E2S
- 360 × 45 LVL H2 E-Beam E2S
- 400 × 45 LVL H2 E-Beam E2S
63mm
- 90 × 63 LVL H2 E-Beam E2S
- 130 × 63 LVL H2 E-Beam E2S
- 150 × 63 LVL H2 E-Beam E2S
- 170 × 63 LVL H2 E-Beam E2S
- 200 × 63 LVL H2 E-Beam E2S
- 240 × 63 LVL H2 E-Beam E2S
- 300 × 63 LVL H2 E-Beam E2S
- 360 × 63 LVL H2 E-Beam E2S
- 400 × 63 LVL H2 E-Beam E2S
- 450 × 63 LVL H2 E-Beam E2S
75mm
- 300 × 75 LVL H2 E-Beam E2S
- 400 × 75 LVL H2 E-Beam E2S
35mm
- 90 × 35 LVL H2 E-Beam E2S
- 130 × 35 LVL H2 E-Beam E2S
- 150 × 35 LVL H2 E-Beam E2S
- 200 × 35 LVL H2 E-Beam E2S
E13.2 grade (also called F17), in lengths up to 12.6m. Every size is also available in H3 for outside, above the ground. Size and space structural members to the relevant span tables or your engineer specification.
LVL Framing: E10

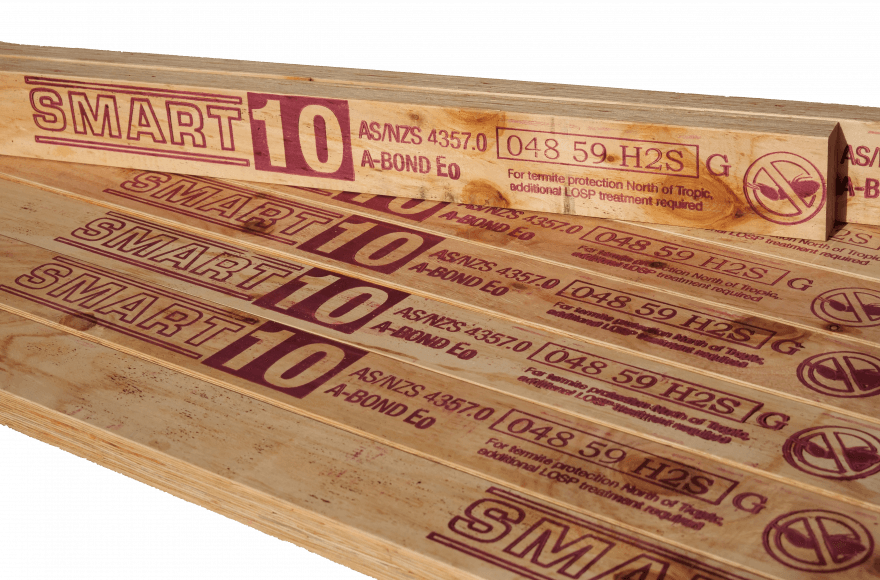

E10 LVL framing, the straighter, stronger engineered alternative to MGP10 sawn pine, sold as E-Frame, Smart10 and Spec Frame 10.0.
E-Frame (E10)
35mm
- 70 × 35 E-Frame E10
- 90 × 35 E-Frame E10
- 120 × 35 E-Frame E10
- 140 × 35 E-Frame E10
45mm
- 70 × 45 E-Frame E10
- 90 × 45 E-Frame E10
- 140 × 45 E-Frame E10
- 190 × 45 E-Frame E10
- 240 × 45 E-Frame E10
- 290 × 45 E-Frame E10
- 300 × 45 E-Frame E10
E10 grade LVL, H2S treated for internal framing, in lengths up to 8.4m. A straight, stable option for studs, plates, joists and general framing with less waste on site.
I-Joists
I-joists for long-span floors and roofs, in the E-Joist, SmartJoist, Spec Joist and Swelite ranges. Light to handle and easy to run services through.
Wesbeam E-Joist
240mm
- 240 × 45 E-Joist
- 240 × 63 E-Joist
- 240 × 90 E-Joist
300mm
- 300 × 45 E-Joist
- 300 × 63 E-Joist
- 300 × 90 E-Joist
360mm
- 360 × 63 E-Joist
- 360 × 90 E-Joist
400mm
- 400 × 63 E-Joist
E-Joist, SmartJoist and Spec Joist have LVL flanges; Swelite has finger-jointed pine flanges. E-Joist and SmartJoist are for internal use; Spec Joist is H2S treated. Send us your floor or roof layout and we will work out the joists you need.
H2S and H3: which treatment

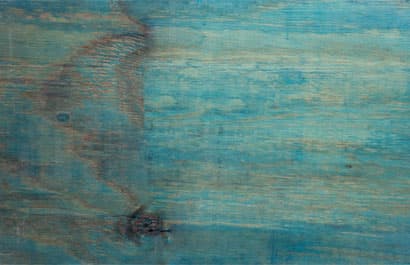

H2S is for inside, above the ground, kept dry and protected. It is termite treated and rated for use south of the Tropic of Capricorn, which covers South Australia. Wesbeam brands its H2S LVL E2S, the blue one.
H3 is for outside, above the ground and exposed to the weather, such as exposed beams and pergola members. It protects against both termites and decay. For anything in the ground, talk to us about the right product.
LVL FAQs
LVL, or Laminated Veneer Lumber, is an engineered structural timber. It is made by bonding thin timber veneers together with a waterproof adhesive, with the grain of every veneer running lengthways. Made to AS/NZS 4357, it is straighter, stronger and more consistent than sawn timber, and it comes in long lengths, so it is used for beams, lintels, bearers, rafters and framing.
E-Beam and SmartLVL are the two main LVL beam ranges we carry, both E13.2 structural LVL for beams, lintels and bearers. For framing there is E-Frame, Smart10 and Spec Frame 10.0 in E10 grade, and for floors and roofs there are the E-Joist, SmartJoist, Spec Joist and Swelite I-joists. They are all listed above with their sizes.
E13.2 (also seen as F17) is the stiffer structural grade used for beams, lintels and bearers that carry load. E10 is the LVL framing grade, sold as E-Frame, Smart10 and Spec Frame 10.0, a straighter and stronger engineered alternative to MGP10 sawn pine for studs, plates, joists and general framing.
H2S is termite treated for inside, above the ground, kept dry and protected, and rated for use south of the Tropic of Capricorn. Wesbeam brands its H2S product E2S, the blue LVL. H3 is treated for outside, above the ground and exposed to the weather, protecting against both termites and decay.
LVL beams run from 90mm to 450mm deep, and up to 525mm in some ranges, in thicknesses from 35mm to 75mm, in lengths up to 12.6m. Framing LVL comes in 35mm and 45mm. The ranges we carry are listed above, and we can order in sizes we do not hold.
Yes. We carry I-joists for long-span floors and roofs, in the E-Joist, SmartJoist, Spec Joist and Swelite ranges, from around 200mm to 400mm deep. E-Joist, SmartJoist and Spec Joist have LVL flanges; Swelite uses finger-jointed pine flanges. An I-joist gives a deep, straight, lightweight joist that is easy to run services through. Send us your floor or roof layout and we will work out the joists you need.
LVL is a structural product, but the right size depends on the load and the span. Always work to the relevant span tables or your engineer or building designer specification, and we will supply the sizes, grade and treatment your job needs.
Request an LVL Quote
Send us your beam, framing or joist list with sizes, grade and treatment, and we will get pricing and availability back to you.
