Hobson Engineering Split Pin & Clip
274 of 274 match, showing a popular pick, filter to find yours · Hobson Engineering
Type
Size (diameter)
Length (mm)
Finish / coating
Grade / strength

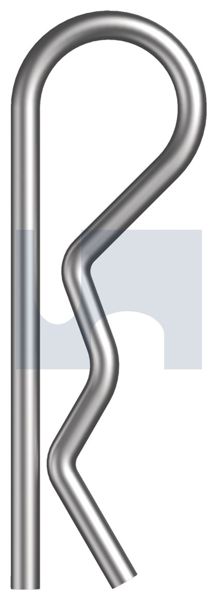

Z/P R CLIP HUMP PIN: 1.2MMX 14
QPRMSZM012
Split Pin & Clip (r-clip) in mild steel. Zinc-plated for light corrosion resistance in dry or indoor conditions.
Specifications
- Standard
- HEC / MILD STEEL
- Grade / class
- Mild Steel
- Material / finish
- Zinc Plated
- Type
- R-clip
- Thread
- Part thread
- Pitch
- No Thread
Buy by the
Sold by the inside inner (200 ea). Prices on application, request a quote and we’ll price your list.
Documents & data sheets for this selection
- Did You Know: Clip Pin Range
- Did You Know: R Clip Humpback Pin
- Hobson Commercial Product Guide
- Product Finish Comparison
Showing documents relevant to the selected variant. Courtesy of Hobson Engineering.
About the Split Pin & Clip
Split (cotter) pins lock through castle nuts and clevis pins; R-clips (humpback) and wave pins give quick-release retention on shafts and linch applications. Zinc-plated and stainless.
Also known as: Split Pins, Cotter Pins, R Clips, Hairpins.
Features
- Split (cotter) pins
- R-clips and wave pins
- Secures pins, nuts and shafts
- Zinc-plated and stainless
Applications
- Castle nuts and clevis pins
- Trailers and machinery
- Quick-release retention
Standards & specification
- HEC / A2
- HEC / MILD STEEL
- DIN 94 / A2
- DIN 94 / A4
- JIS B 2808:1999 / AISI 420
Need Split Pin & Clip in bulk?
Add the sizes you need to your quote, or send us your list and we’ll price the lot and supply it with the rest of your order.
